Siemens 7SX8000-3AA50-1CA0 7SX80003AA501CA0 Safety relay

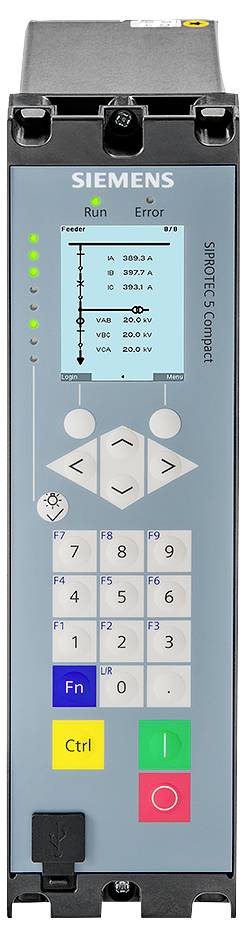

Siemens SIPROTEC Compact protection relay front panel with status LEDs, LCD display, navigation keys, and numeric keypad for configuring settings and viewing faults.
Diagram of a Siemens SINOTICS drive front panel and terminal layout, showing display, keypad, and wiring connections.

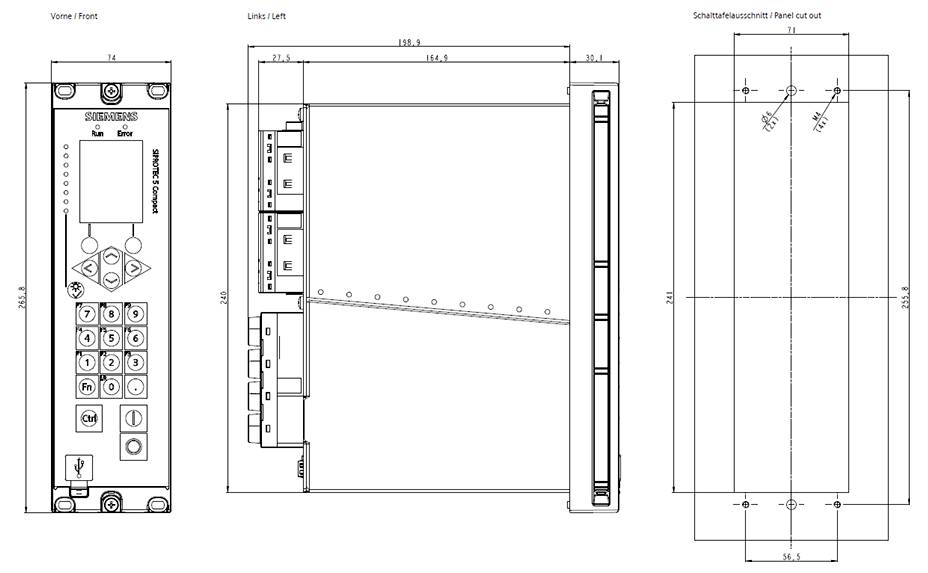

Technical dimension drawing of a modular electronic control unit shown in front, left, and rear views with labeled measurements.
1/3
Image similar
Product type
Safety relay
Type
7SX8000-3AA50-1CA0
Probe inputs
4
Dim
(L x W x H) 229 x 74 x 266 mm
Width
74 mm
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

Type

7SX8000-3AA50-1CA0

Product type

Safety relay

Probe inputs

4

Dim

(L x W x H) 229 x 74 x 266 mm

Width

74 mm

Height

266 mm

Length

229 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3753692 Siemens 7SX8000-3AA50-1CA0 7SX80003AA501CA0 Safety relay

Description

7SX800 Universal Protection Device, BE: 4, BA: 5 (4 fast, 1 life) I: 4 (4x protection), U: 4 (standard), Housing: 1/6 x 19, 8 LEDs, 9 function keys, Ethernet: Optical, serial interface, Control unit: integrated, display type: color display, front design: standard, auxiliary voltage: DC 24 V - 250 V, AC 115 V - 230 V, components: PS050
