Siemens 7SX8000-3AB50-1CA0 7SX80003AB501CA0 Safety relay No. of relay outputs: 5 No. of digital inputs: 4
Product type
Safety relay
No. of relay outputs
5
Type
7SX8000-3AB50-1CA0
Probe inputs
4
Dim

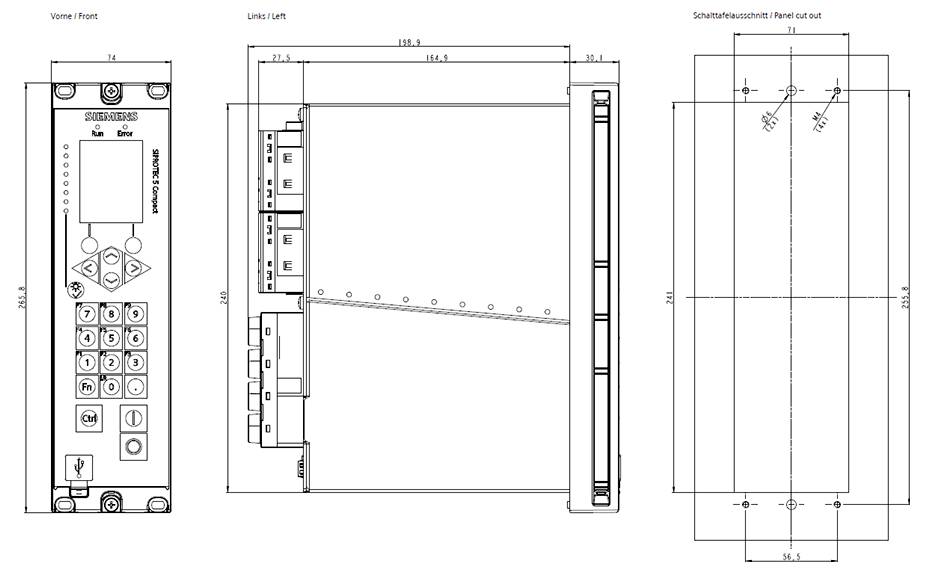

(L x W x H) 229 x 74 x 266 mm
EAN:
Part number:
Item no:
Technical specifications
- Type
7SX8000-3AB50-1CA0
- Product type
Safety relay
- No. of relay outputs
5
- Probe inputs
4
- Dim
(L x W x H) 229 x 74 x 266 mm
- No. of digital inputs
4
- Width
74 mm
- Height
266 mm
- Length
229 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3753694 Siemens 7SX8000-3AB50-1CA0 7SX80003AB501CA0 Safety relay No. of relay outputs: 5 No. of digital inputs: 4
Description

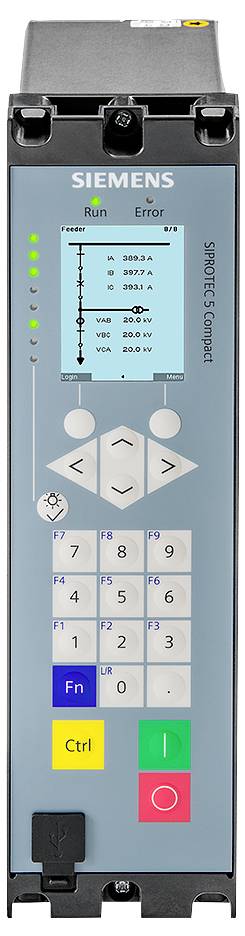

7SX800 Universal Protection Device, BE: 4, BA: 5 (4 fast, 1 life) I: 4 (3x protection, 1x sensitive), U: 4 (standard), Housing: 1/6 x 19, 8 LEDs, 9 function keys, Ethernet: Optical, serial interface, Control unit: integrated, display type: color display, front design: standard, auxiliary voltage: DC 24 V - 250 V, AC 115 V - 230 V, components: PS050
