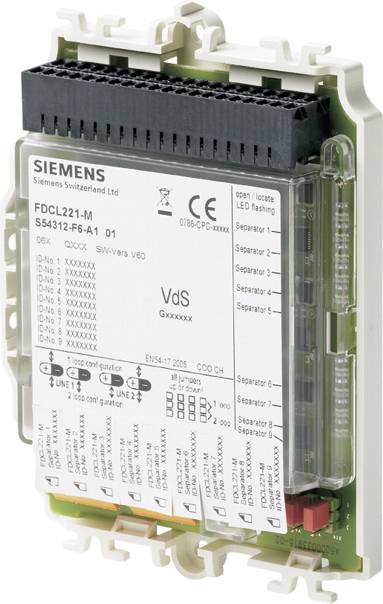

Image similar
Siemens A5Q00004011 A5Q00004011 Line separator 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standard: EN 54-17
- Protection class: IP44
- Operating voltage 12…33 V DC
- Operating temperature -25…70 °C.
- Storage temperature: -30...+80 °C.
- Relative humidity: ≤95 % rel.
- Communication protocol: FDnet/C-NET
- Quiescent current 250 μA
- System compatibility: FDnet -> FS20, Algorex, SIGMASYS
- C-NET> - FS720
- Colour: Transparent.
- Dimensions (W x H x D) 44 x 47.5 x 10 mm
- Accessories TS35_122 DIN rail
- TS35_288 Hat-mounting rail
- Product type
Line separator
- Content
1 pc(s)
Address card
Plastic
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483100 Siemens A5Q00004011 A5Q00004011 Line separator 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483100 Siemens A5Q00004011 A5Q00004011 Line separator 1 pc(s)
Information
Information 2483100 Siemens A5Q00004011 A5Q00004011 Line separator 1 pc(s)
Description
Line separators can be used to ensure that in the event of a short circuit, no more than one spur line fails
in between. The line separator is used where several stitches are connected to the FDnet/C-NET at one point if no other device is available between the branches. Conversion of existing collective systems to addressable Sinteso and Cerberus PER fire alarm system. The line isolator is an electronic switch that is inserted in the FDnet/C-NET and, in the event of a short circuit, breaks the negative conductor so that the short-circuit-free side can continue to be operated. The line isolator has 2x 2 connections for the detector line. The yellow LED for the status display signals the short-circuit isolation.
This text is machine translated.
in between. The line separator is used where several stitches are connected to the FDnet/C-NET at one point if no other device is available between the branches. Conversion of existing collective systems to addressable Sinteso and Cerberus PER fire alarm system. The line isolator is an electronic switch that is inserted in the FDnet/C-NET and, in the event of a short circuit, breaks the negative conductor so that the short-circuit-free side can continue to be operated. The line isolator has 2x 2 connections for the detector line. The yellow LED for the status display signals the short-circuit isolation.
This text is machine translated.
