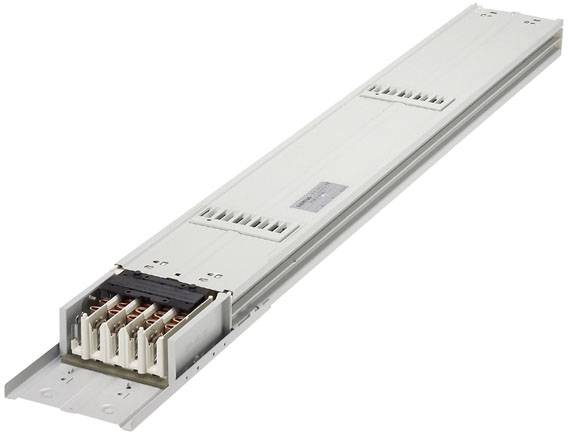

Siemens BVP:261535 Rail Box Aluminium Light grey 205 mm² 400 A Conductor type = N, PE 1 pc(s)
Product type
Rail Box
Operating voltage
690 V AC
Factory colour
Light grey
Cross section
205 mm²
Dim
(L x W x H) 1.24 m x 167 mm x 68 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Protection class: IP52
- Number of conductors: 5
- Number of conductors / without PE: 4
- Mounting type: Ceiling / wall
- Operating frequency 50 -60 Hz
- INSULATION VOLTAGE 690 V/AC;800 V/DC
- Bus bar configuration: L1,L2,L3,N.
- Short-term current strength (ICW) / at 690 V / limited to 0.1 s: 20 kA
- Short-term current strength (ICW) / at 690 V / limited to 1 s: 16 kA
- Surge current strength at 690 V: 40 kA
- Number of circuits / in a busbar box: 1
- Mounting position / of the rail box: Horizontal upright, horizontal flat, vertical
- Rail box length / custom / minimum 0.5 m.
- Product type
Rail Box
- Operating voltage
690 V AC
- Factory colour
Light grey
- Cross section
205 mm²
- Dim
(L x W x H) 1.24 m x 167 mm x 68 mm
- Nominal current
400 A
- Nominal current - rounded value
400 A
- Type
For BD2 distribution system
- Content
1 pc(s)
- Conductor type
N
PE
- Material
Aluminium
- Width
167 mm
- Height
68 mm
- Length
1.24 m
- UKCA
not relevant
