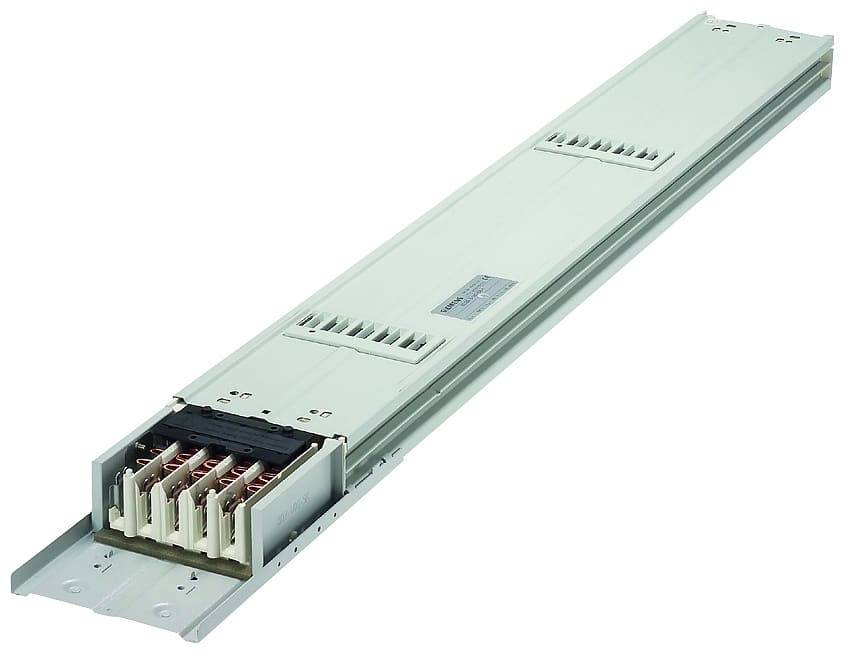

Siemens BVP:261880 Rail Box Aluminium Light grey 699 mm² 1000 A 1 pc(s)
Product type
Rail Box
Operating voltage
690 V AC
Factory colour
Light grey
Cross section
699 mm²
Dim
(W x H) 167 mm x 1250 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Protection class: IP52
- Number of conductors: 5
- Number of conductors / without PE: 4
- Mounting type: Ceiling / wall
- Operating frequency 50 -60 Hz
- INSULATION VOLTAGE 690 V/AC;800 V/DC
- Bus bar configuration: L1,L2,L3,L3,N.
- Short-term current strength (ICW) / at 690 V / limited to 0.1 s: 43 kA
- Short-term current strength (ICW) / at 690 V / limited to 1 s: 34 kA
- Surge current strength at 690 V: 90 kA
- X-leg length / of the direction-change rail box: 0.36 - 1.25 m.
- Y-leg length / of the direction-change rail box : 0.36 m.
- Product type
Rail Box
- Operating voltage
690 V AC
- Factory colour
Light grey
- Cross section
699 mm²
- Dim
(W x H) 167 mm x 1250 mm
- Nominal current
1000 A
- Nominal current - rounded value
1000 A
- Type
Angle box (change of direction) for rail distribution system BD2
- Content
1 pc(s)
- Material
Aluminium
- Width
167 mm
- Height
1250 mm
- UKCA
yes
