Image similar

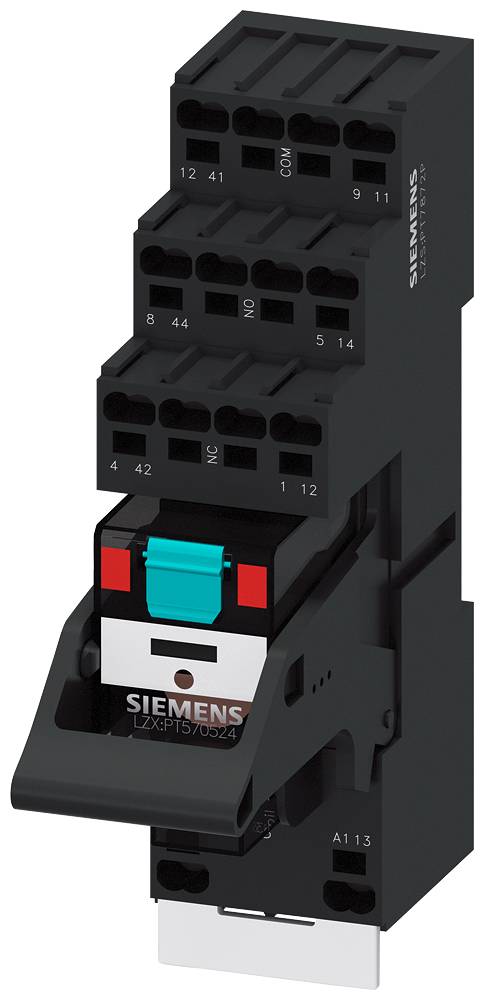

Siemens LZS:PT2D5T30 2 change-overs Piece 5 pc(s)
Packaging type
Piece
Contact type
2 change-overs
Type
LZS:PT2D5T30
Connection
Spring-loaded connector
Max. pick-up voltage
230 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Plug-in relay complete AC230V, 2W, red LED module, socket with log. Separation
Our service for you
Technical specifications
- Packaging type
Piece
- Type
LZS:PT2D5T30
- Connection
Spring-loaded connector
- Max. pick-up voltage
230 V AC
- Contact type
2 change-overs
- Contact material
Gold plated
- Features
+ LED
- Content
5 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2884120 Siemens LZS:PT2D5T30 2 change-overs Piece 5 pc(s)
User & Safety Instructions
User & Safety Instructions 2884120 Siemens LZS:PT2D5T30 2 change-overs Piece 5 pc(s)
Description
Plug-in relay complete unit 2 W, AC 230 V LED module red, with logical isolation Spring-cage connection (Push-In) Interface relay with SIRIUS LZS plug-in relay for galvanic isolation, contact multiplication, for switching small loads and as a potential change-over.
The coupling relays have tool-free wiring and vibration-proof connection thanks to push-in spring-loaded terminals. Logical separator sockets allow easy wiring. The switching rating is tested according to AC-15 and DC-13. Thanks to hard gold-plated contacts, the cooperation with electronic controls is optimal.
Devices are available as complete units or individual modules in RT, PT and MT types, with or without logical separation, in various coil voltages as well as in screw connection or with plug-in terminals (push-in).
Extensive range of accessories such as Plug base, fixing/ejection bracket, cable bracket and LED module are available.
SIRIUS relay - a program for all cases.
This text is machine translated.
The coupling relays have tool-free wiring and vibration-proof connection thanks to push-in spring-loaded terminals. Logical separator sockets allow easy wiring. The switching rating is tested according to AC-15 and DC-13. Thanks to hard gold-plated contacts, the cooperation with electronic controls is optimal.
Devices are available as complete units or individual modules in RT, PT and MT types, with or without logical separation, in various coil voltages as well as in screw connection or with plug-in terminals (push-in).
Extensive range of accessories such as Plug base, fixing/ejection bracket, cable bracket and LED module are available.
SIRIUS relay - a program for all cases.
This text is machine translated.
