Siemens Magnet Magnetic 3SE6701-2BA
Product type
Magnet
Switching distance (max.)
8 mm
Model
Magnetic
Connector
Plug
Type
3SE6701-2BA
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Magnet
- Type
3SE6701-2BA
- Switching distance (max.)
8 mm
- Model
Magnetic
- Features
LED indicator
- Connector
Plug
- RoHS-compliant
Yes
Plastic
TRUE
Dry reed contact
None
None
Cuboid
Not flat
FALSE
IP67

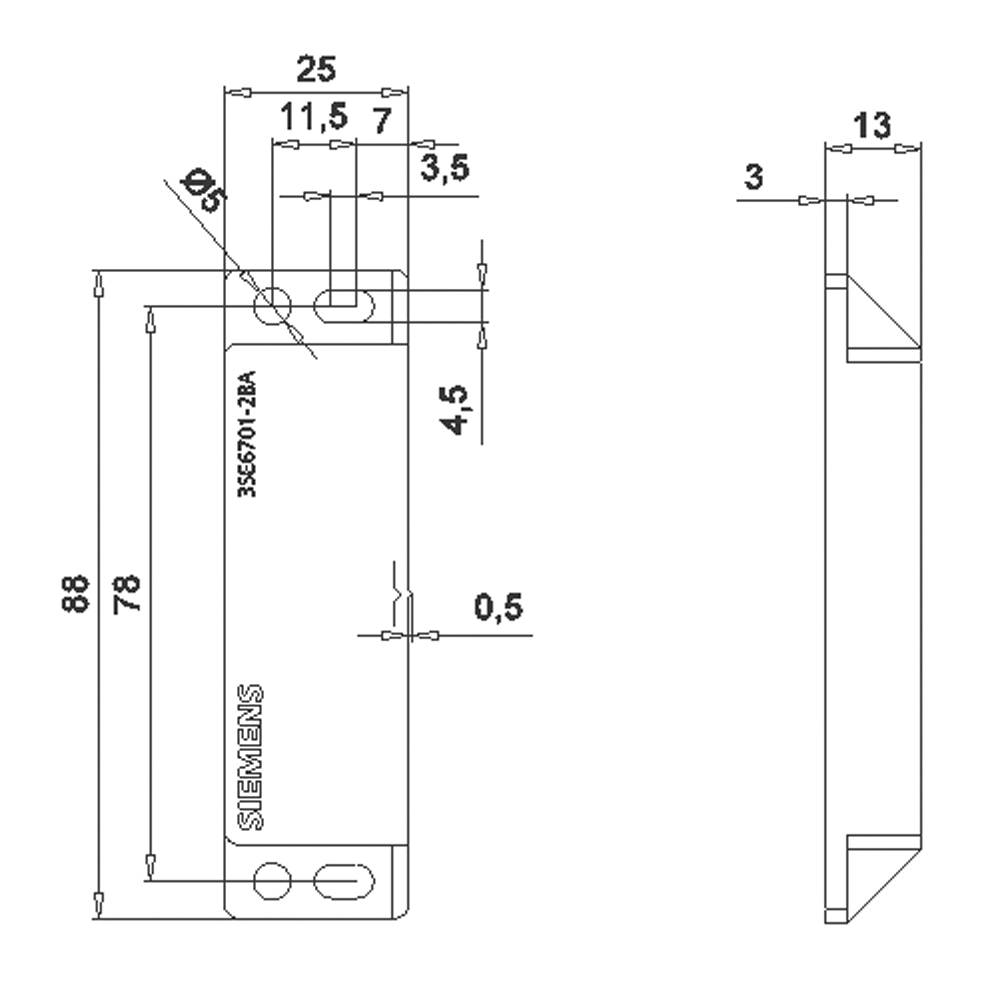

25 mm
13 mm
88 mm
Level e
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2870430 Siemens Magnet Magnetic 3SE6701-2BA
User & Safety Instructions
User & Safety Instructions 2870430 Siemens Magnet Magnetic 3SE6701-2BA
Description
solenoid rectangular large, with increased operating distance 8 mm, for contact blocks 3SE660*-2BA* Magnetically operated switch SIRIUS 3SE67 for space-saving and manipulation-proof monitoring of a guard fence, cover or door.
The contactless coded devices are small and compact and are therefore suitable for use where space is very limited. They meet the highest safety requirements specified by PL e or SIL 3.Their non-wearing switching operations ensure a long service life.
They are available in various shapes and sizes. Different combinations of contact elements and cable lengths, versions with LEDs for fast diagnosis, and plug-in connectors for fast connection are available.
Spacers and various couplings with connection cables of various lengths are available as accessories.
Safety is a SIRIUS business.
The contactless coded devices are small and compact and are therefore suitable for use where space is very limited. They meet the highest safety requirements specified by PL e or SIL 3.Their non-wearing switching operations ensure a long service life.
They are available in various shapes and sizes. Different combinations of contact elements and cable lengths, versions with LEDs for fast diagnosis, and plug-in connectors for fast connection are available.
Spacers and various couplings with connection cables of various lengths are available as accessories.
Safety is a SIRIUS business.
