Siemens S54312F102A1 FDCIO361 I/O module 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Standard: EN 54-17
- EN 54-18
- Operating temperature -25…70 °C.
- Relative humidity: ≤95 % rel.
- Protection class IP30; IP65 with additional housing
- Operating voltage 12…33 V DC
- Storage temperature: -30...+75 °C.
- Cable size: 0.2...2.5 mm²

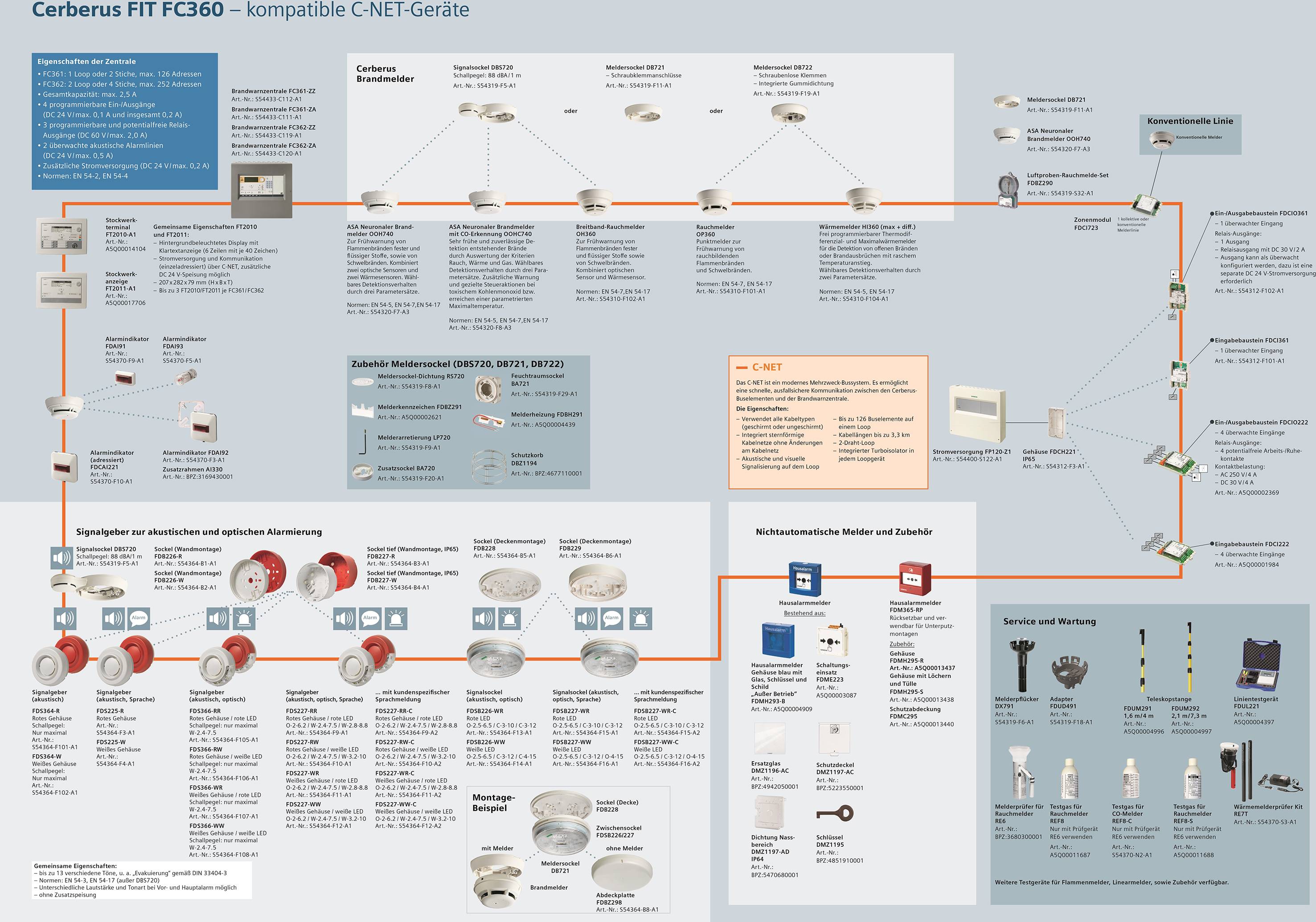

- SYSTEM COMPATIBILITY: C-NET -> FC360
- Communication protocol: C-NET
- Relay output: (Potential-free) AC 22 V, 2 A, max. 44 VA
- DC 30 V, 2 A, MAX. 60 W
- Standby current: Max. 0.4 mA
- Dimensions (W x H x D) 95 x 71 x 23 mm
- Accessories: TS35_122 hat-rail
- TS35_288 Hat-mounting rail

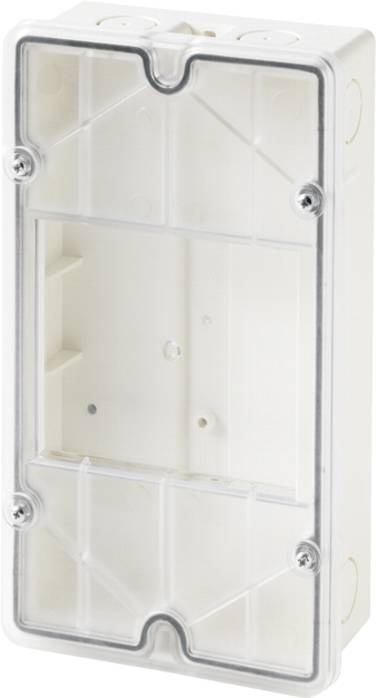

- FDCH221 housing IP65
- Product type
I/O module
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483099 Siemens S54312F102A1 FDCIO361 I/O module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483099 Siemens S54312F102A1 FDCIO361 I/O module 1 pc(s)
Information
Information 2483099 Siemens S54312F102A1 FDCIO361 I/O module 1 pc(s)
Description
For connecting 1 potential-free contact for reporting technical states (e.g. Door or ventilation control) or to trigger an alarm
(E.g. Sprinkler alarm). For decentralized control of fire doors, ventilation systems, air conditioning systems.
1 input for potential-free signal contact. The input line is monitored for interruption and short-circuit (terminating resistors). The input can be configured via the fire panel for status or alarm messages. 1 output configurable as not monitored -> potential-free relay contact (AC 22 V, 2 A) or as monitored -> relay contact (DC 30 V, 2 A).
Status display with LED. Power is supplied via C-NET, additional supply only necessary if the output is configured as monitored.
Input/output module incl. 3 resistors and 2 mounting feet for TS35 hat rail.
This text is machine translated.
(E.g. Sprinkler alarm). For decentralized control of fire doors, ventilation systems, air conditioning systems.
1 input for potential-free signal contact. The input line is monitored for interruption and short-circuit (terminating resistors). The input can be configured via the fire panel for status or alarm messages. 1 output configurable as not monitored -> potential-free relay contact (AC 22 V, 2 A) or as monitored -> relay contact (DC 30 V, 2 A).
Status display with LED. Power is supplied via C-NET, additional supply only necessary if the output is configured as monitored.
Input/output module incl. 3 resistors and 2 mounting feet for TS35 hat rail.
