Siemens S54312F6A1 FDCL221-M Multi-line separator 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standard: EN 54-17
- Protection class IP30; IP65 with additional housing
- Operating voltage 12…33 V DC
- Operating temperature -25…70 °C.
- Storage temperature: -30...+75 °C.
- Relative humidity: ≤95 % rel.
- Communication protocol FDnet/C-NET
- Quiescent current 2.25 mA (9x 250 μA) or 2 x 1 mA (4x 250 μA)

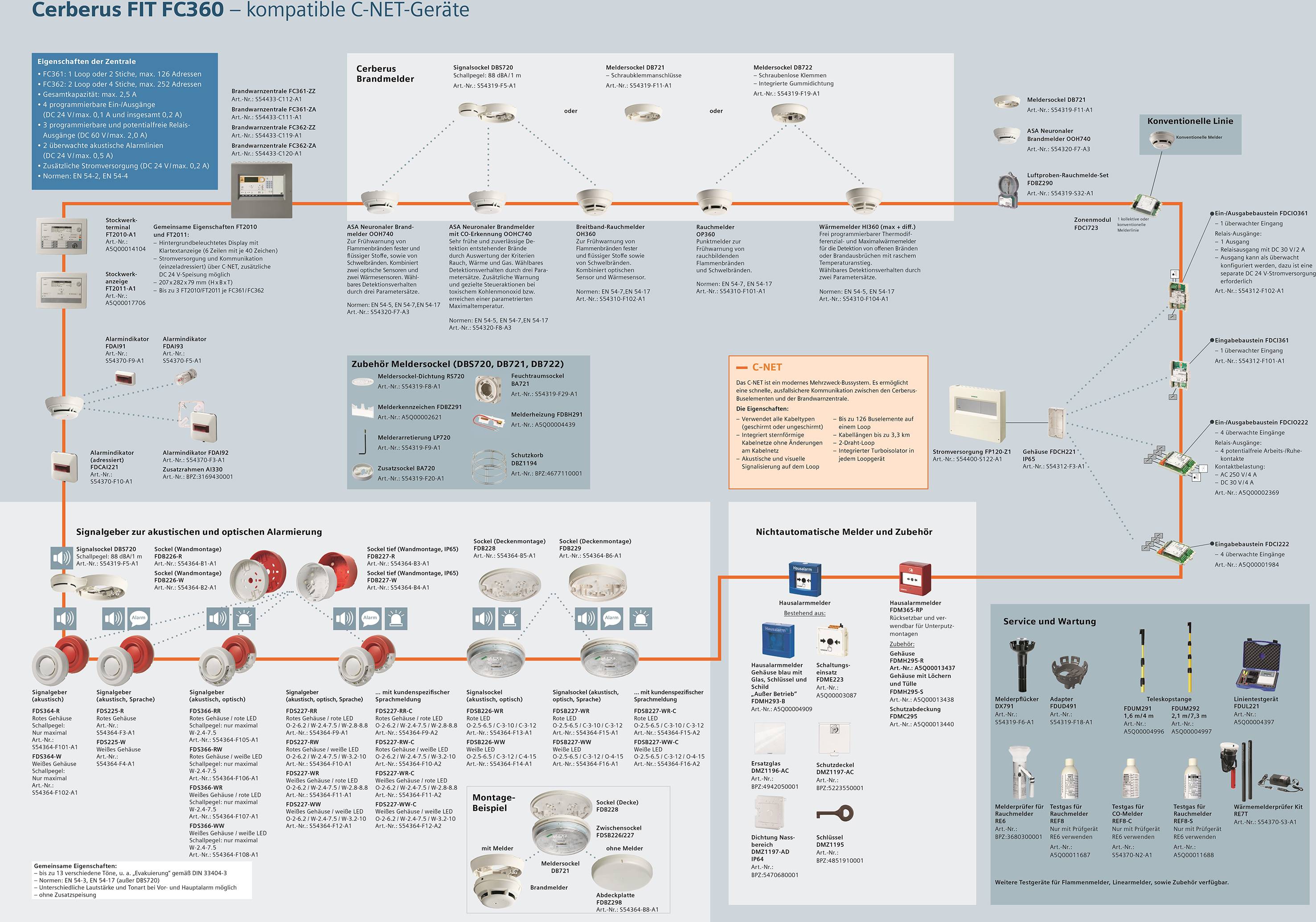

- System compatibility: FDnet -> FS20, Algorex, SIGMASYS
- C-NET> - FS720
- Dimensions (W x H x D) 130 x 90 x 20 mm
- Color: Housing/cover pure white, ~RAL 9010 / transparent matt
- Accessories: Hat-rail TS35_122
- Top hat rail TS35_288
- FDCH221 housing with cover, seal and
- Screw
- Metal cable gland M20 x 1.5
- Metal counter nut M20
- DBZ1190-FROM connection terminal 1.0...2.5 mm² (3-pin)
- FDCM291 mounting feet (25 pieces)
- Product type
Multi-line separator
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483101 Siemens S54312F6A1 FDCL221-M Multi-line separator 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483101 Siemens S54312F6A1 FDCL221-M Multi-line separator 1 pc(s)
Information
Information 2483101 Siemens S54312F6A1 FDCL221-M Multi-line separator 1 pc(s)
Description
To ensure that in the event of a short circuit, line separators can be connected in between. The line separator is used where several stitches are connected to the FDnet/C-NET at one point. The block can be connected to 2 separate loops. Conversion of existing collective systems to addressable Sinteso and Cerberus PER fire alarm system. The block has a total of 9 line separators. Each line separator is an electronic switch that is inserted in the FDnet/C-NET and, in the event of a short circuit, breaks the negative conductor so that the short-circuit-free side can continue to be operated. The line isolator has connections for the detector line, connections for the spur lines (T-branches), jumpers for programming the operating mode (1 or 2 loop), yellow LEDs for the status display signals the short-circuit isolation.
