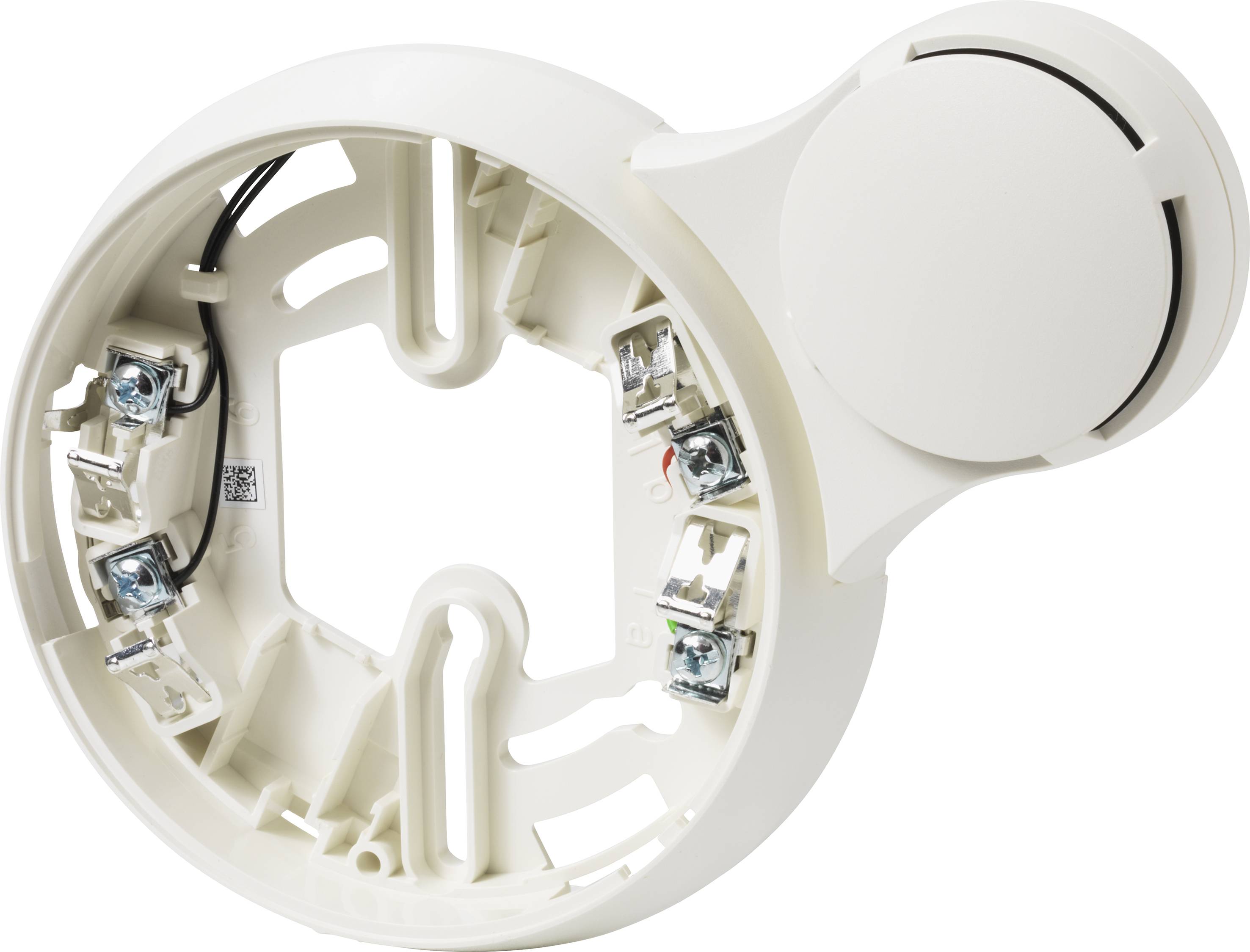

Siemens S54319F5A1 DBS720 Detector base 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 134.99 / piece)
€ 134.99
incl. VAT
14-day return policy included
Technical specifications
- Standard: EN 54-3
- Protection class: IP41; IP42 with detector base seal
- Operating voltage 12…33 V DC
- Operating temperature -25…70 °C.
- Storage temperature: -30...+70 °C.
- 8088 dB (A) sound intensity
- Cable size: 0.2...1.6 mm²
- Relative humidity: ≤95 % rel.
- Communication protocol: C-NET
- Alarm current 1.2 mA
- Number of tones: 11
- Quiescent current 150 µA
- EXT. Alarm indicator: 2
- SYSTEM COMPATIBILITY: C-NET -> FS720
- Color: Pure white, ~RAL 9010
- Dimensions (W x H x D) 175 x 117 x 29 mm
- Accessories: FDB291 socket attachment
- RS720 signal base
- DBZ1190-AA CONNECTION TERMINAL 0.5 mm²
- DBZ1190-FROM microterminal 2.5 mm²
- Product type
Detector base
- Operating voltage
12...33 V DC
- SPL
8088 dB(A)
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483053 Siemens S54319F5A1 DBS720 Detector base 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483053 Siemens S54319F5A1 DBS720 Detector base 1 pc(s)
Information
Information 2483053 Siemens S54319F5A1 DBS720 Detector base 1 pc(s)
Description
Can be used with all Cerberus PRO series point detectors.
The signal socket DBS720 forms a unit with the detector, already has a base and is mounted on ceilings, e.g. in hotel rooms, hospital rooms or homes.
The signal base is used for acoustic alarm signaling in the addressed FS720 fire alarm system. The signal base can be freely assigned via the fire panel to trigger if required: It is not dependant on an alarm signal from an assigned detector.
Synchronization with the other alarm toners in the same detector line (C-NET).
No additional power supply required, power is supplied via C-NET.
For flush-mounted supply lines. For surface-mounted supply lines, the corresponding break-out points break out for cables up to max. Ø 8 mm.
This text is machine translated.
The signal socket DBS720 forms a unit with the detector, already has a base and is mounted on ceilings, e.g. in hotel rooms, hospital rooms or homes.
The signal base is used for acoustic alarm signaling in the addressed FS720 fire alarm system. The signal base can be freely assigned via the fire panel to trigger if required: It is not dependant on an alarm signal from an assigned detector.
Synchronization with the other alarm toners in the same detector line (C-NET).
No additional power supply required, power is supplied via C-NET.
For flush-mounted supply lines. For surface-mounted supply lines, the corresponding break-out points break out for cables up to max. Ø 8 mm.
This text is machine translated.
