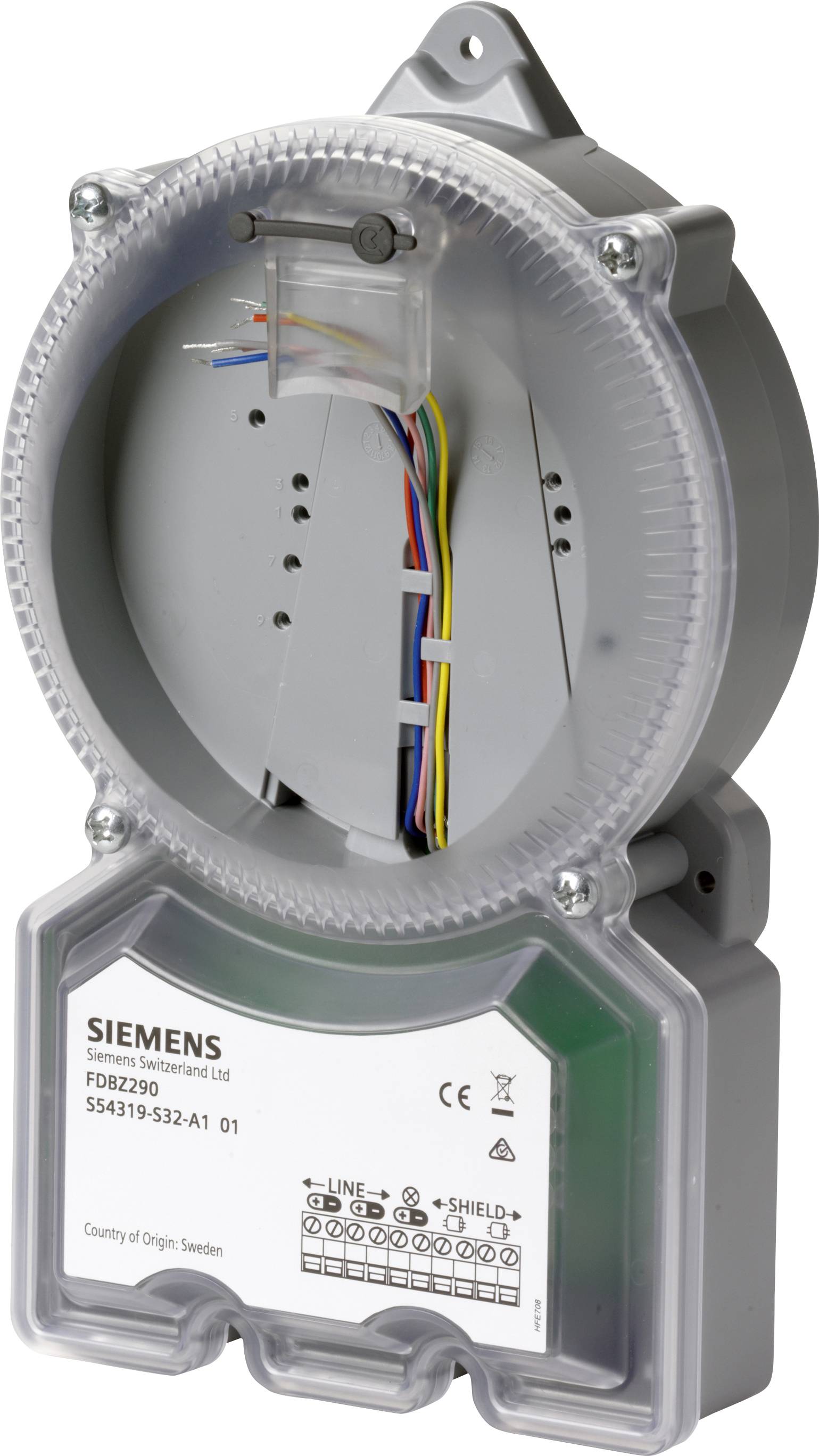

Siemens S54319S32A1 FDBZ290 Air sampling smoke detector 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class: IP54
- Relative humidity: ≤95 % rel.
- Operating temperature -20…50 °C.
- System compatibility: Sinteso: FDnet, collective
- Cerberus PRO: C-NET, collective
- Permissible air speed: 1…20 m/s.
- Air flow indicator: ≥1 m/s.
- Color: Silver gray, ~RAL 7001
- Accessories: FDBZ290-AA air flow tube, length 600 mm
- FDBZ290-FROM air flow tube, length 1500 mm
- FDBZ290-AC air flow tube, length 2800 mm
- FDBZ290-AD mounting device
- FDBZ292-AD sealing set
- A5Q00004478 metal cable gland M20 x 1.5
- A5Q00004479 metal counter nut M20 x 1.5
- Product type
Air sampling smoke detector
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483085 Siemens S54319S32A1 FDBZ290 Air sampling smoke detector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483085 Siemens S54319S32A1 FDBZ290 Air sampling smoke detector 1 pc(s)
Information
Information 2483085 Siemens S54319S32A1 FDBZ290 Air sampling smoke detector 1 pc(s)
Description
The air sample smoke detector set is a passive monitoring system without its own fan. It uses the pressure differences in the ventilation system to continuously take air samples from the ventilation duct via the air flow pipe and to feed them into the air sample smoke detection set.
The air sample smoke detector set only works when the ventilation system is in operation and the air is circulating.
The air to be monitored must normally be clean, i.e. dust and aerosol-free.
If the smoke detector detects a certain smoke concentration, the corresponding hazard level is reported to the fire panel, which in turn triggers an alarm.
The specialized Sinteso and Cerberus? PRO detectors and sockets must be ordered separately.
This text is machine translated.
The air sample smoke detector set only works when the ventilation system is in operation and the air is circulating.
The air to be monitored must normally be clean, i.e. dust and aerosol-free.
If the smoke detector detects a certain smoke concentration, the corresponding hazard level is reported to the fire panel, which in turn triggers an alarm.
The specialized Sinteso and Cerberus? PRO detectors and sockets must be ordered separately.
This text is machine translated.
