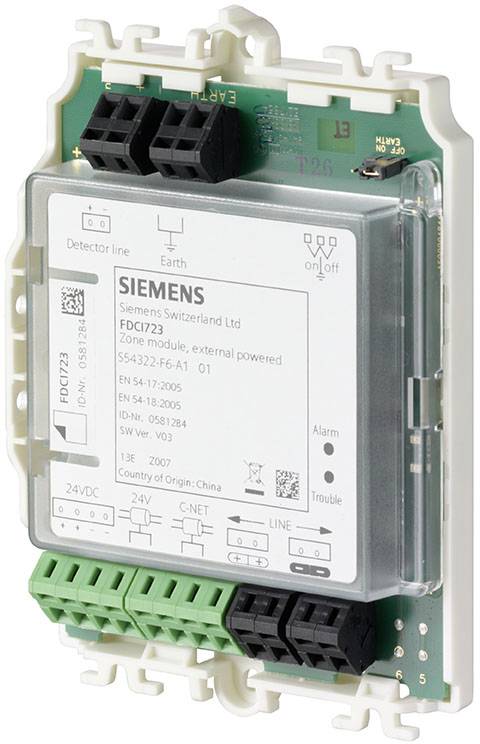

Siemens S54322F6A1 FDCI723 Zone interface module 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standard: EN 54-17
- EN 54-18
- Relative humidity: ≤95 % rel.
- Protection class IP30; IP65 with additional housing
- Operating voltage 12…33 V DC
- Terminating resistor 20 V transcendorb diode or EOL22(Ex)
- Storage temperature -30…+70 °C
- Cable size: 0.2...1.5 mm²

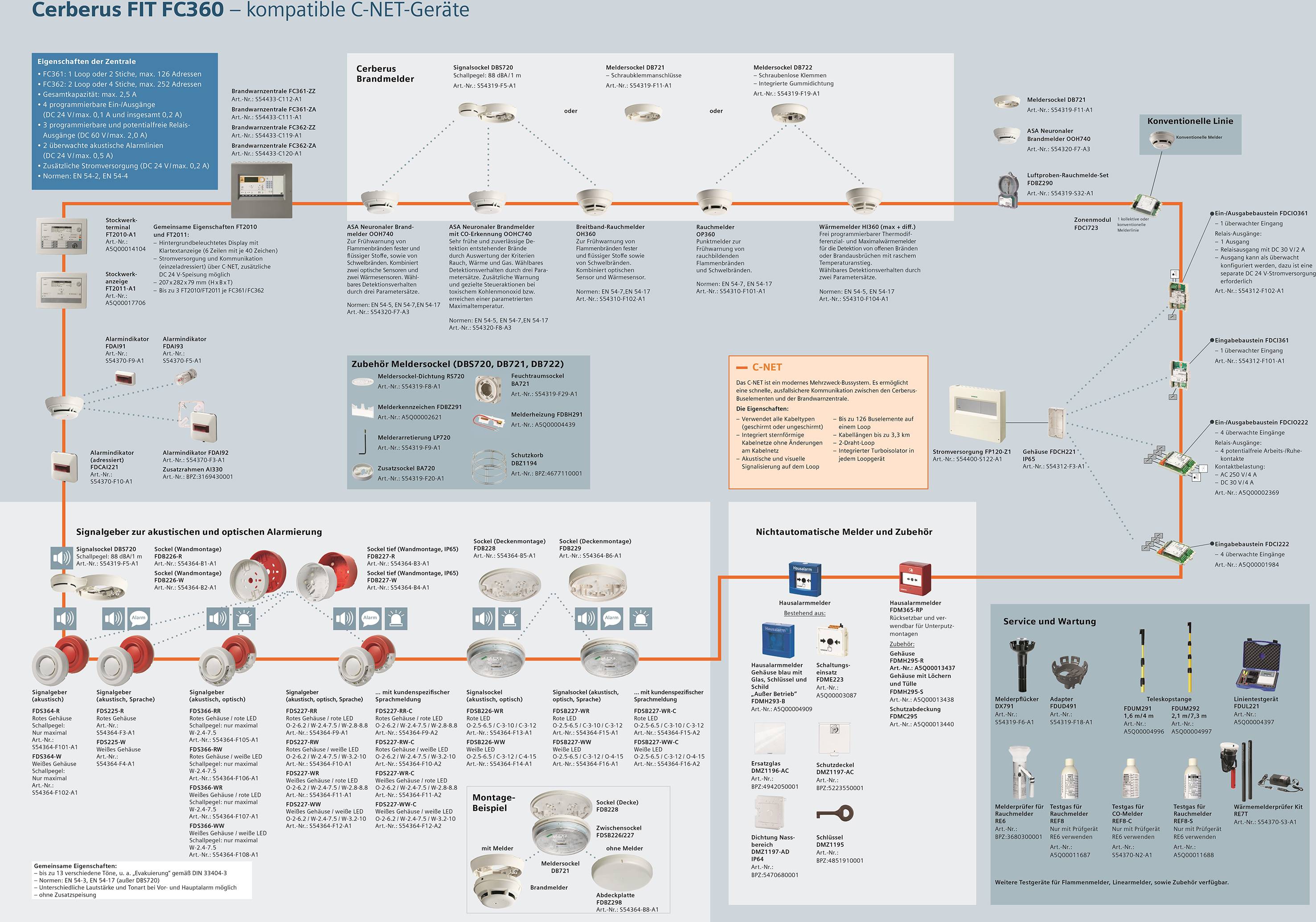

- SYSTEM COMPATIBILITY: C-NET > FS720
- Communication protocol: C-NET
- Detector line: 110 series / DS11, SynoLINE300/600
- Dimensions (W x H x D) 95 x 71 x 23 mm
- Input voltage: DC 12...33 V.
- Accessories: FDCH221 housing with cover, seal and screws
- A5Q00004478 metal cable gland M20 x 1.5
- A5Q00004479 Metal-counter nut M20
- DBZ1190-FROM connection terminal 1.0…2.5 mm² (3-pin)
- FDCM291 mounting feet (25 pieces)
- Product type
Zone interface module
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483097 Siemens S54322F6A1 FDCI723 Zone interface module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483097 Siemens S54322F6A1 FDCI723 Zone interface module 1 pc(s)
Information
Information 2483097 Siemens S54322F6A1 FDCI723 Zone interface module 1 pc(s)
Description
Zone module, external power supply, C-NET.
- Connection of a detector line (collective or conventional 110 series, DS11, SynnoLINE 300/600) to the C-NET
- LED display of the status of the detector line: Fault, test, etc.
- Two-wire installation for all cable types
- Power supply 24 V DC external (detector lines electrically isolated)
- microprocessor-controlled signal evaluation
- Communication via C-NET (individually addressed)
- can be used in dry, dusty and damp areas
- different mounting options
- Group module including 1 20 V voltage reference diode and 2 mounting feet for TS35 top hat rail
