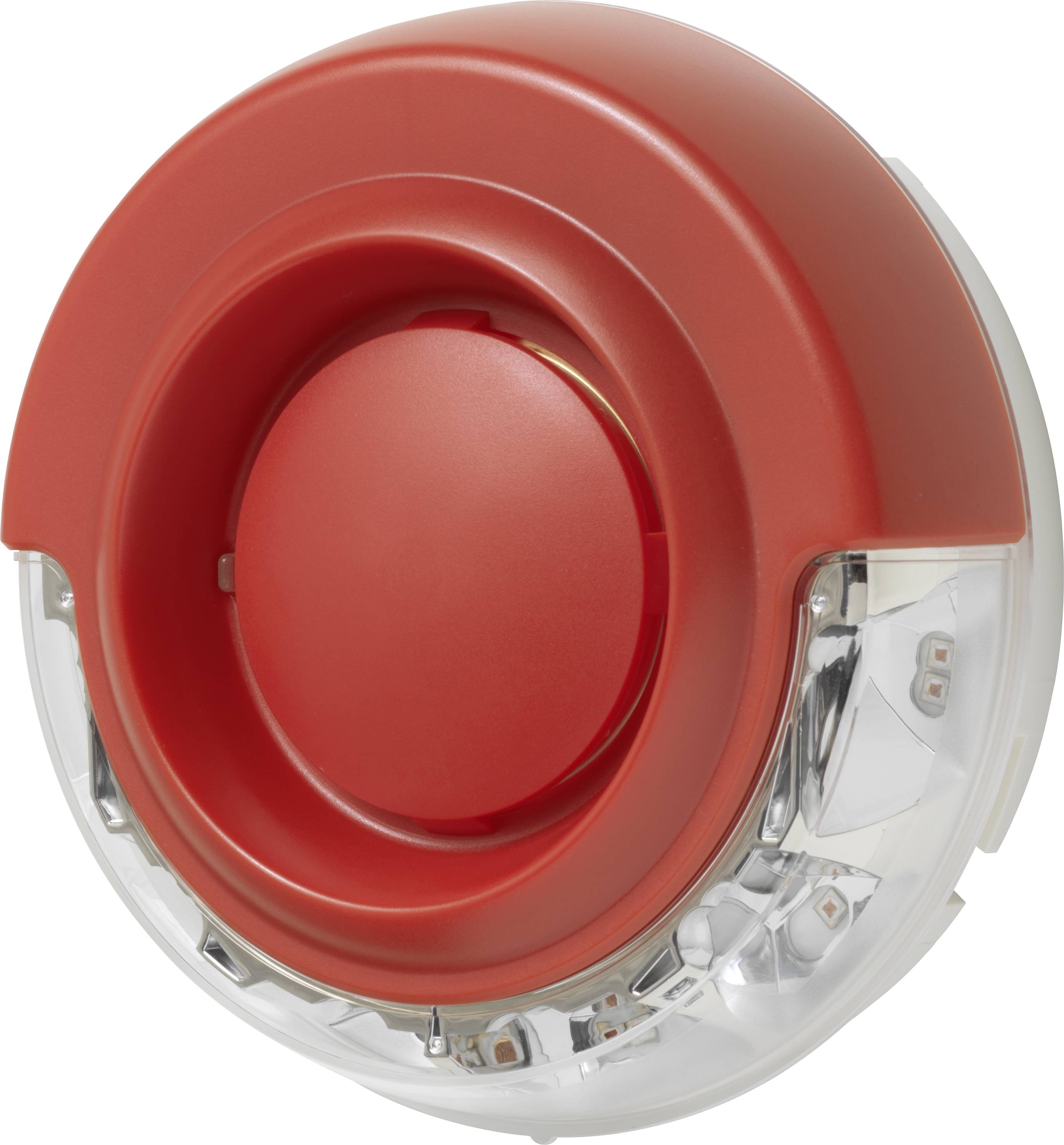

Siemens S54364F105A1 FDS366-RR Alarm sounder 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 229.99 / piece)
€ 229.99
incl. VAT
14-day return policy included
Technical specifications
- Standard: EN 54-3
- EN 54-23
- EN 54-17
- Protection class IP33C; IP65 with base deep
- Operating voltage 16…33 V DC
- Operating temperature -25…70 °C.
- Operating current: 4…20 mA (sound and flashing light activated)
- Number of tones: 16
- Storage temperature: -30...+75 °C.
- Relative humidity: ≤95 % rel.
- Standby current 400 μA
- Sound intensity 7599 dB (A)
- Light intensity: Medium = W-2.4-7.5
- Indicator
- Cable size 0.2…2.5 mm²
- Communication protocol: C-NET
- SYSTEM COMPATIBILITY: C-NET -> FC360
- Color: Fire red, ~RAL 3000
- Accessories: FDB226-R socket (wall mounting), red
- FDB227-R base deep (wall mounting), red
- FDBZ293 detector locking
- LP720 detector locking
- Product type
Alarm sounder
- Operating voltage
16...33 V DC
- SPL
7599 dB(A)
- Dim
(Ø x H) 116 mm x 42.7 mm
- Content
1 pc(s)
- Weight
0
- Height
42.7 mm
- (Ø)
116 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483119 Siemens S54364F105A1 FDS366-RR Alarm sounder 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483119 Siemens S54364F105A1 FDS366-RR Alarm sounder 1 pc(s)
Information
Information 2483119 Siemens S54364F105A1 FDS366-RR Alarm sounder 1 pc(s)
Description
The device serves to alarm in an addressed fire alarm system and triggers an acoustic and an optical danger signal in the event of a fire alarm. The device is mounted on the wall, e.g. along escape routes, corridors, stairwells and office spaces. The tones and light intensity are adjustable, the alarm devices are synchronized.
The power supply is via C-NET, no additional power supply is necessary. The device automatically monitors its optical and acoustic function.
The base must be ordered separately.
This text is machine translated.
The power supply is via C-NET, no additional power supply is necessary. The device automatically monitors its optical and acoustic function.
The base must be ordered separately.
This text is machine translated.
