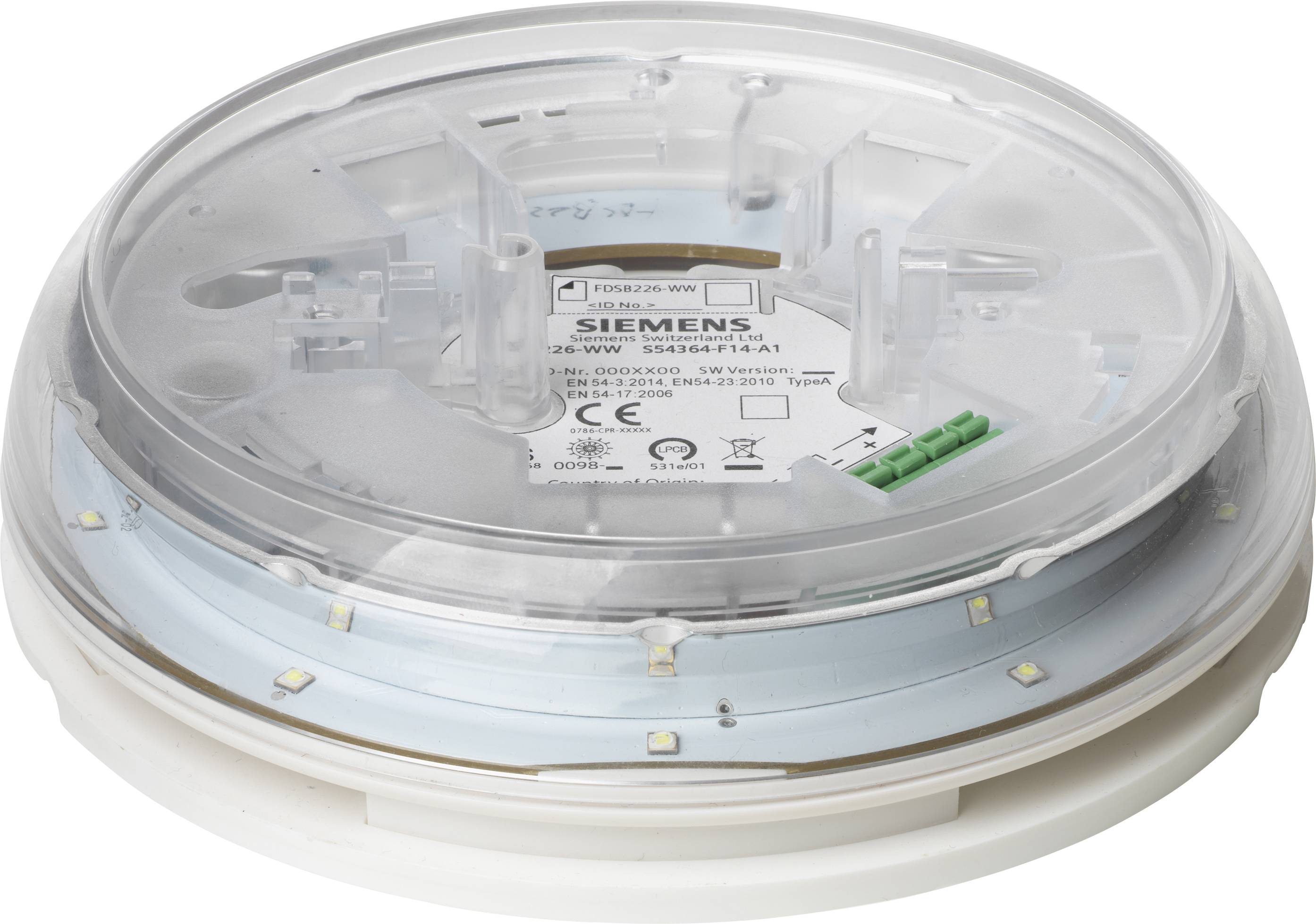

Siemens S54364F16A1 FDSB227-WW Detector base 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Standard: EN 54-3
- EN 54-23
- EN 54-17
- Protection class IP21C; IP21C with base deep
- Operating voltage 16…33 V DC
- Operating temperature -25…70 °C.
- Operating current: 5…29 mA (sound/voice and flashing light activated)
- Number of tones: 16
- Storage temperature: -30...+75 °C.
- Relative humidity: ≤95 % rel.
- Standby current 400 μA
- Sound intensity 7093 dB (A)
- Light intensity: Bright = C-3-12
- Medium = C-3-10
- Weak = O-2.5-6.5
- Indicator
- Cable size 0.2…2.5 mm²
- Communication protocol FDnet/C-NET

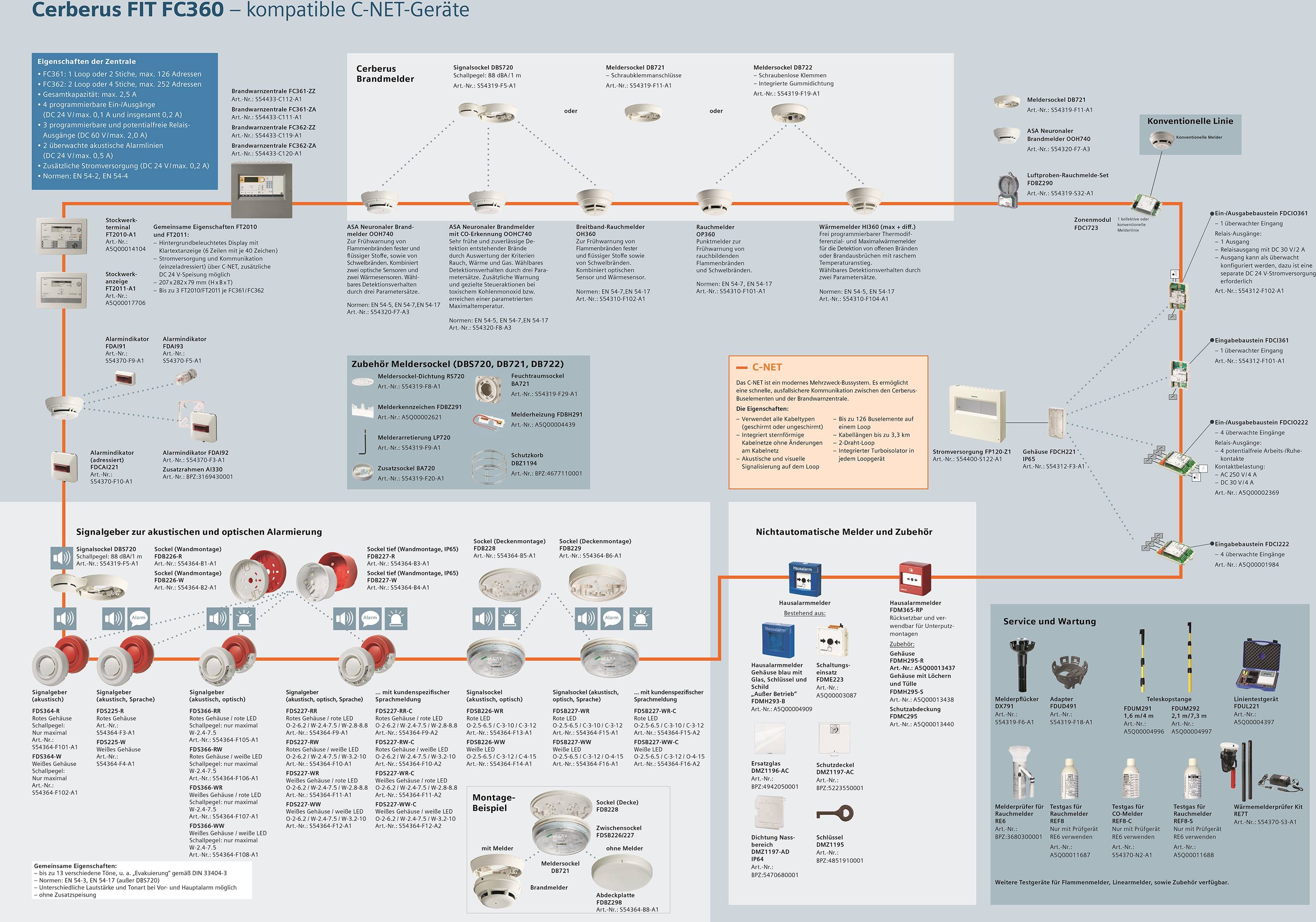

- System Compatibility FDnet -> FS20 (MP7)
- C-NET> - FS720 (IP7)
- Color: Pure white, ~RAL 9010
- Accessories: FDB228 socket (ceiling mounting)
- FDB229 base deep (ceiling-mounted)
- FDBZ298 cover plate
- FDBZ221 additional ring
- FDBZ291 Detector identification
- FDBZ293 detector locking
- LP720 detector locking
- DBZ1190-AA microterminal
- DBZ1190-FROM connection terminal
- Product type
Detector base
- Operating voltage
16…33 V DC
- SPL
7093 dB(A)
- Dim
(Ø x H) 116 mm x 42.7 mm
- Content
1 pc(s)
- Height
42.7 mm
- (Ø)
116 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483126 Siemens S54364F16A1 FDSB227-WW Detector base 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483126 Siemens S54364F16A1 FDSB227-WW Detector base 1 pc(s)
Information
Information 2483126 Siemens S54364F16A1 FDSB227-WW Detector base 1 pc(s)
Description
The device serves to alarm in an addressed fire alarm system and triggers an acoustic and an optical danger signal with voice message in the event of a fire alarm. The device is mounted on the ceiling, e.g. in hotel rooms, along escape routes, corridors, stairwells and office spaces. The sound level, the tones, the light intensity and the voice messages are adjustable, the alarm devices are synchronized. 15 languages are integrated in the device, each voice message can be output in two different languages one after the other.
The power supply is via FDnet/C-NET, no additional power supply is necessary. The device automatically monitors its optical and acoustic function.
The base must be ordered separately.
This text is machine translated.
The power supply is via FDnet/C-NET, no additional power supply is necessary. The device automatically monitors its optical and acoustic function.
The base must be ordered separately.
This text is machine translated.
