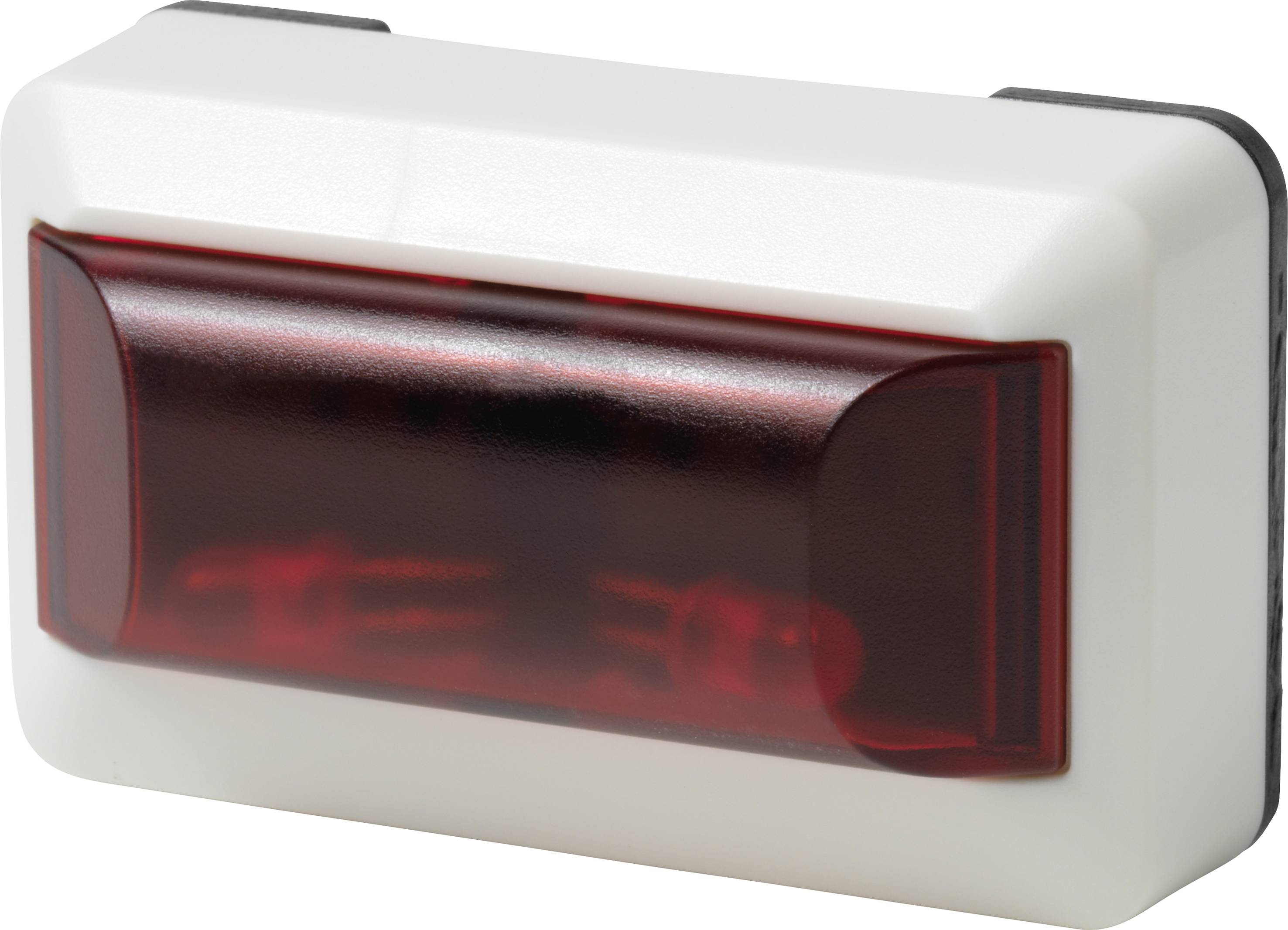

Siemens S54370F9A1 FDAI91 Alarm indicator 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Protection ar:t IP40
- Operating voltage 5…8 V DC
- Operating temperature -25…80 °C.
- Operating current: 35 mA
- Relative humidity: ≤95 % rel.
- Cable size: Max. 1.5 mm²
- Dimensions (W x H x D) 62 x 37 x 24 mm
- Color: Pure white, ~RAL 9010
- Product type
Alarm indicator
- Operating voltage
5/8 V DC
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483075 Siemens S54370F9A1 FDAI91 Alarm indicator 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483075 Siemens S54370F9A1 FDAI91 Alarm indicator 1 pc(s)
Information
Information 2483075 Siemens S54370F9A1 FDAI91 Alarm indicator 1 pc(s)
Description
The alarm indicator serves as a visual parallel display for automatic fire detectors. It enables the quick detection of alarm-giving detectors, which are difficult to access or are poorly visible or not immediately visible. The alarm indicator lights up as soon as the associated detector alarms.
Screwless terminals.
The alarm indicator is suitable for door frames.
