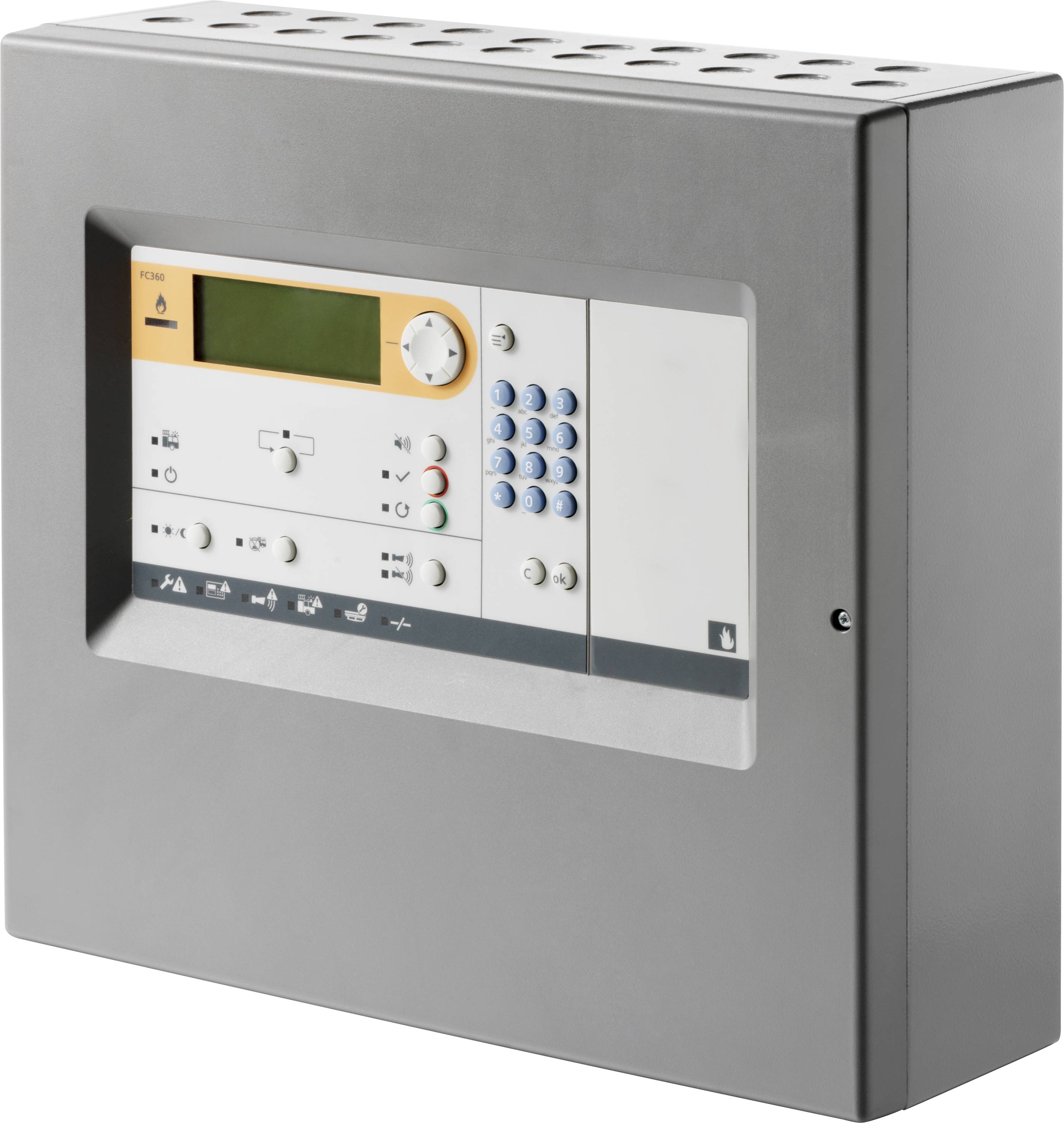

Siemens S54433C111A1 FC361-ZA Fire alarm hub 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 1,555.00 / piece)
€ 1,555.00
incl. VAT
14-day return policy included
Technical specifications
- Removal: FCA3602-Z1 Output Module (4M)
- FTO3602-Z1 LED display (16 zones)
- FTO3601-H1 Evacuation Module (NL)
- FCA3601-Z1 key switch
- FCA3603-Z1 key switch (Nordic)
- FCA2001-A1 RS232 module (isolated)
- Accessories: FHA3602-Z1 half-flush-mounted frame panel
- FCA1209-Z1 OUTPUT MODULE (230 V)
- DL3750+ dot matrix printer (external)
- Product type
Fire alarm hub
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2483065 Siemens S54433C111A1 FC361-ZA Fire alarm hub 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483065 Siemens S54433C111A1 FC361-ZA Fire alarm hub 1 pc(s)
Information
Information 2483065 Siemens S54433C111A1 FC361-ZA Fire alarm hub 1 pc(s)
Description
The FC361-ZA is a fire panel (1-loop) to which up to 126 addressed fire detectors and other peripheral devices can be connected.
Compared to the standard version, the FC361-ZA version is equipped with an extra large Comfort housing for 2x 12 V, 25 Ah batteries and integrated LED display for 16 zones.
The control panel is ideal for smaller fire detection systems, such as workshops, smaller hotels, schools, shops, Residential homes etc.
The integrated Panel Configurator enables quick and easy configuration adjustments using a PC/laptop without additional software.
Accessories and extensions must be ordered separately.
This text is machine translated.
Compared to the standard version, the FC361-ZA version is equipped with an extra large Comfort housing for 2x 12 V, 25 Ah batteries and integrated LED display for 16 zones.
The control panel is ideal for smaller fire detection systems, such as workshops, smaller hotels, schools, shops, Residential homes etc.
The integrated Panel Configurator enables quick and easy configuration adjustments using a PC/laptop without additional software.
Accessories and extensions must be ordered separately.
This text is machine translated.
