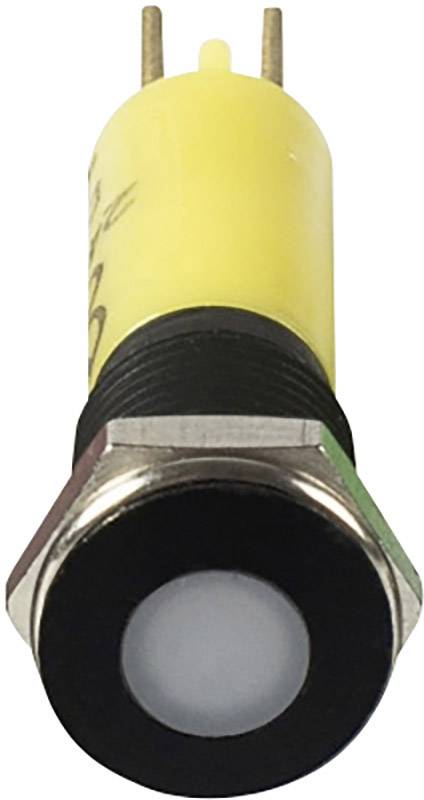

Signal Construct SFEU081245 LED indicator light Yellow 24 V AC, 24 V DC 1800 mcd
Product type
LED indicator light
Operating voltage
24 V AC
24 V DC
Operating current
12 mA
Recess diameter
8 mm
IP rating
IP67 (front)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 7.99 / piece)
€ 7.99
incl. VAT
14-day return policy included
Highlights & Details
LED signal lamp Ø 8 mm
Our service for you
Technical specifications
- Product type
LED indicator light
- Type
081245 SFEU
- Factory colour
Yellow
- Operating voltage
24 V AC
24 V DC
- Operating current
12 mA
- Recess diameter
8 mm
- Head height
0.80 mm
- Front panel thickness
7 mm
- Case colour
Black
- Material
Brass
- Material properties
chrome plated
- Mounting type
Screw and union
IP67 (front)
- Light intensity I(V)
1800 mcd
- Radiation angle
160°
- Connection
Type C CEE 7/16 plug 2.8 mm
- Length
38.04 mm
60000 h
- Min. temperature
-30 °C
- Max. temperature
+75 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1647013 Signal Construct SFEU081245 LED indicator light Yellow 24 V AC, 24 V DC 1800 mcd
User & Safety Instructions
User & Safety Instructions 1647013 Signal Construct SFEU081245 LED indicator light Yellow 24 V AC, 24 V DC 1800 mcd
Description
Hints
In AC operation, power consumption and power are halved.
