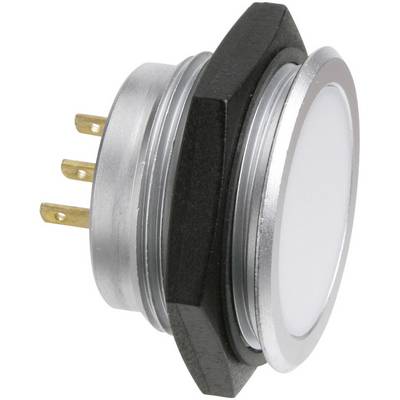

Signal Construct SMFE30224 LED indicator light (multi-colour) Red, Green 24 V DC 180 mcd, 180 mcd
EAN:
Part number:
Item no:
Datasheet (PDF)
88 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€
Highlights & Details
LED indicator lamps with 2 color LED
- Common Cathode
- This text is machine translated.
Technical specifications
- Luminous flux (phi): (red/green) 0.82/1 lm
- Common Cathode
- Type
SMFE 30224
- Factory colour
Red
Green
- Operating voltage
24 V DC
- Operating voltage
- Operating current
16 mA
7 mA
- Recess diameter
30 mm
- Case colour
Silver
- Material
Brass
Polyamide 6.6
- Mounting type
Screw
IP67
- Light intensity I(V)
180 mcd
180 mcd
- Radiation angle
120°
- LED features
multicolour
splashproof
- Connection
Type C CEE 7/16 plug 2.8 mm
- Dim
60000 h
- Min. temperature
-30 °C
- Max. temperature
85 °C
- RoHS-compliant
Yes
n.rel.
- Content
1 pc(s)
- Colour temperature range
- Product type
LED indicator light (multi-colour)
Documents & Downloads
Datasheet
Datasheet 394615 Signal Construct SMFE30224 LED indicator light (multi-colour) Red, Green 24 V DC 180 mcd, 180 mcd
Conformity certificate
Conformity certificate 394615 Signal Construct SMFE30224 LED indicator light (multi-colour) Red, Green 24 V DC 180 mcd, 180 mcd
Description
LED indicator lamps with 2-colored LED and frosted light surface for optimal on/off contrast. The control of the two anodes is the mixed color amber. IP67 housing matt chrome-plated screw fixing M 30 x 1.5 mm.
