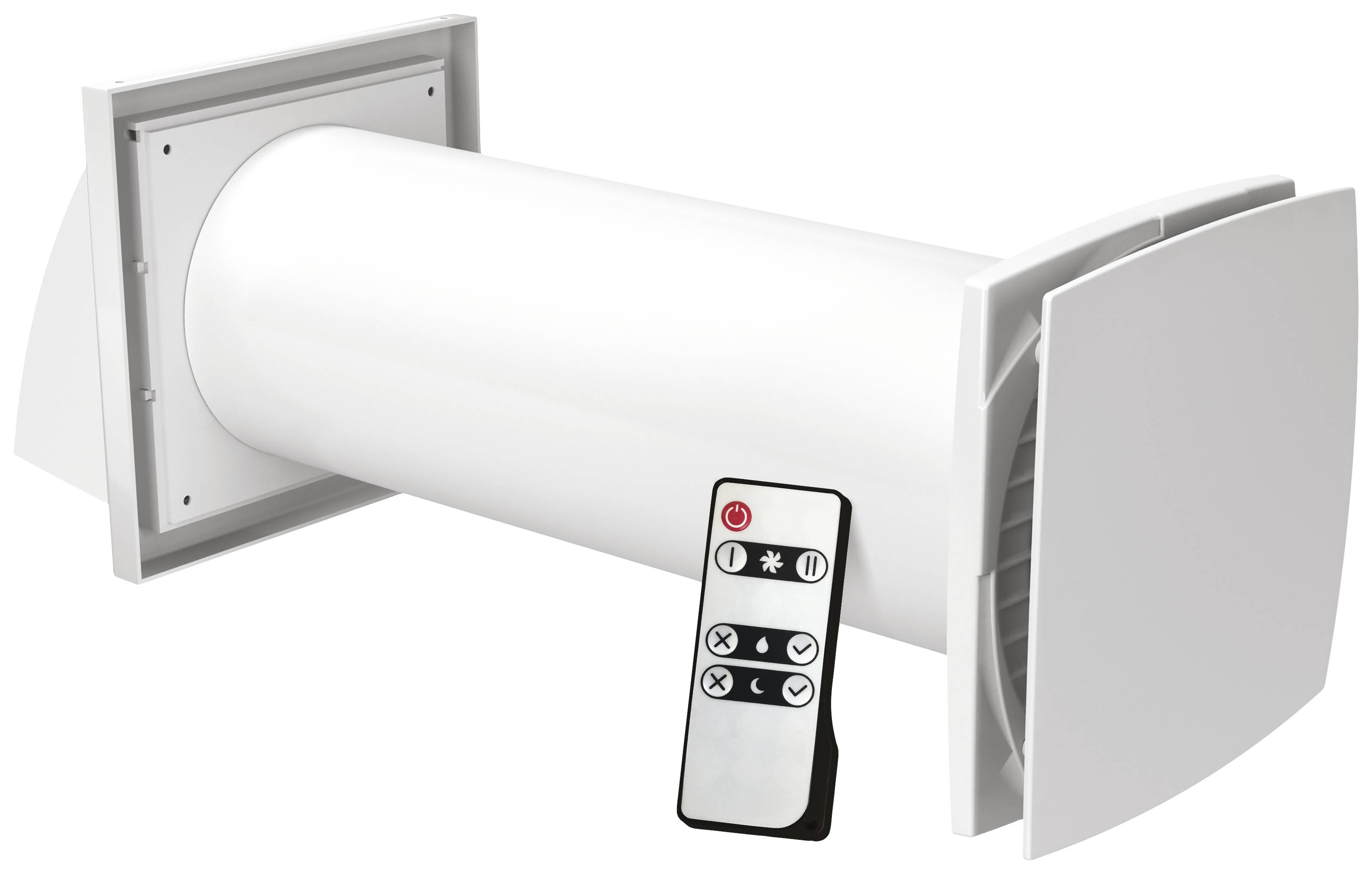

SIKU RV1-35 C Mini V2 Heat recovery fan Recess-mount 46 m³/h EEC: A+ (A+ - G) 50708
EAN:
Part number:
Item no:
Highlights & Details
Decentralized ventilation with heat recovery
- Remote controlAdjustable humidity sensorNight mode can be activated
Technical specifications
- Tube length 380 m.
- Pipe-Ø (diameter) 106 mm
- Protection class IP24
- Product type
Heat recovery fan
- Operating voltage
230 V
- Switching stages
2
2.3 W
- Air flow rate
46 m³/h
- Mounting type
Recess-mount
- Noise emission (max.)
26 dB
A+ (A+ - G)
- Width
150 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2544564 SIKU RV1-35 C Mini V2 Heat recovery fan Recess-mount 46 m³/h EEC: A+ (A+ - G) 50708
User & Safety Instructions
User & Safety Instructions 2544564 SIKU RV1-35 C Mini V2 Heat recovery fan Recess-mount 46 m³/h EEC: A+ (A+ - G) 50708
Warranty Terms
Warranty Terms 2544564 SIKU RV1-35 C Mini V2 Heat recovery fan Recess-mount 46 m³/h EEC: A+ (A+ - G) 50708
Description
For ventilation in apartments, houses, public and commercial buildings.
This text is machine translated.
This text is machine translated.
Features
- Pipe diameter Ø 100 mmDesigned for installation in a core hole (120 mm DM) through the exterior wall of a buildingEconomical and quiet EC-motorOperated by remote controlAdjustable humidity sensorNight mode can be activated (in addition, the LED lighting is dimmed)Ventilation in 60-second cycle with automatic energy recoveryEnergy-saving thanks to ceramic heat exchangerTwo flow rectifiers prevent air turbulence in the ventilation systemTwo filters (filter class G3) provide clean air, protect the ceramic heat exchanger from contamination and additionally dampen the noise levelFilter life 3 years (replacement filter can be obtained from dealer), cleaning the filters is easy and should be done at least every 3 monthsIncl. overheating protection.Max. Air flow rate 46 m³/h.Heat exchange efficiency up to 85%.
Scope of delivery
- Ventilation tubes
- Cartridge
- Inner and outer hood
- Remote control
- Mounting template + wedges
- Mounting set
- User manual.
Hints
Appliances sold without a fitted mains plug must be installed by the utlitiy provider, or by an accredited tradesperson who will also help you obtain the approval of the relevant utility provider prior to installation.
