Name: Silverstone SST-RM61-312 Casing Black
Brand: Silverstone
SKU: 3742829

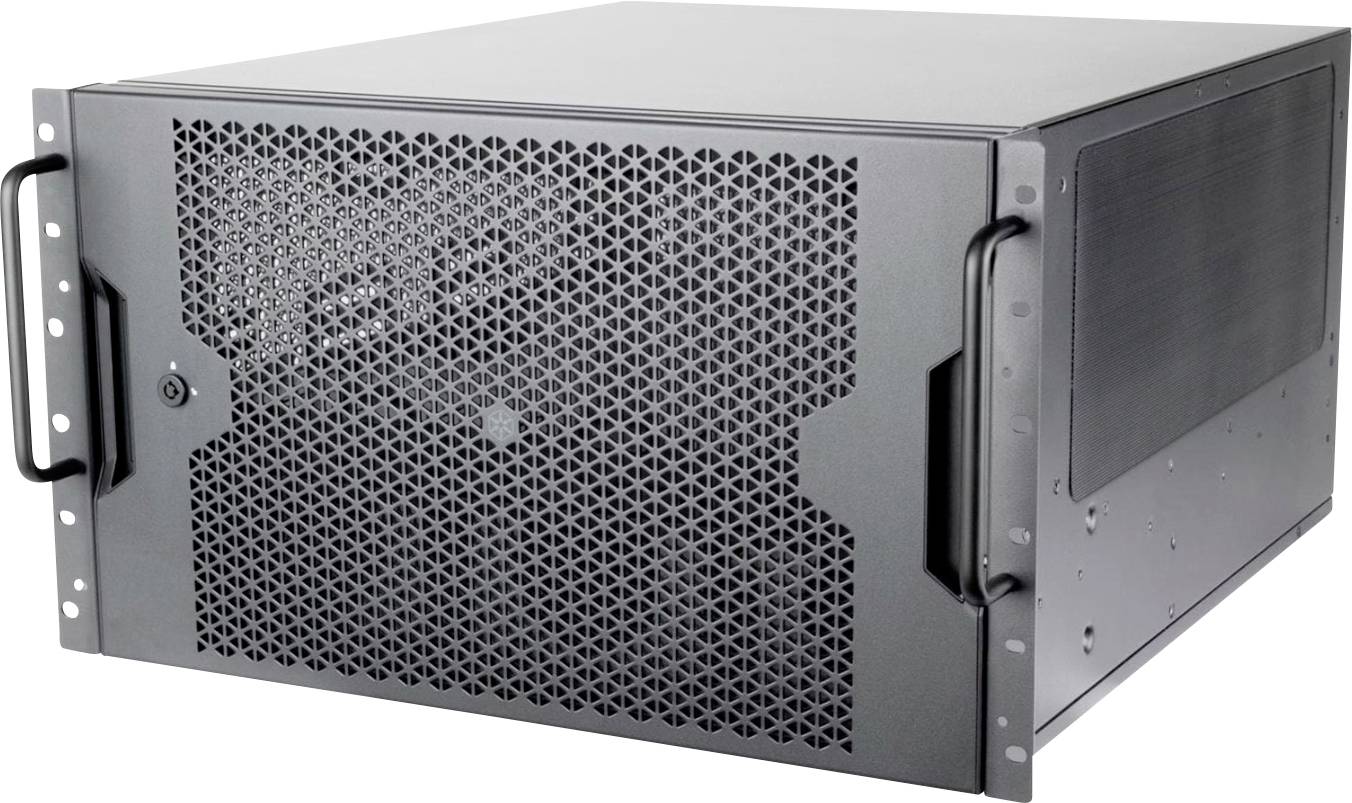

Black rackmount enclosure with perforated front and side handles, presumably a server or computer housing.

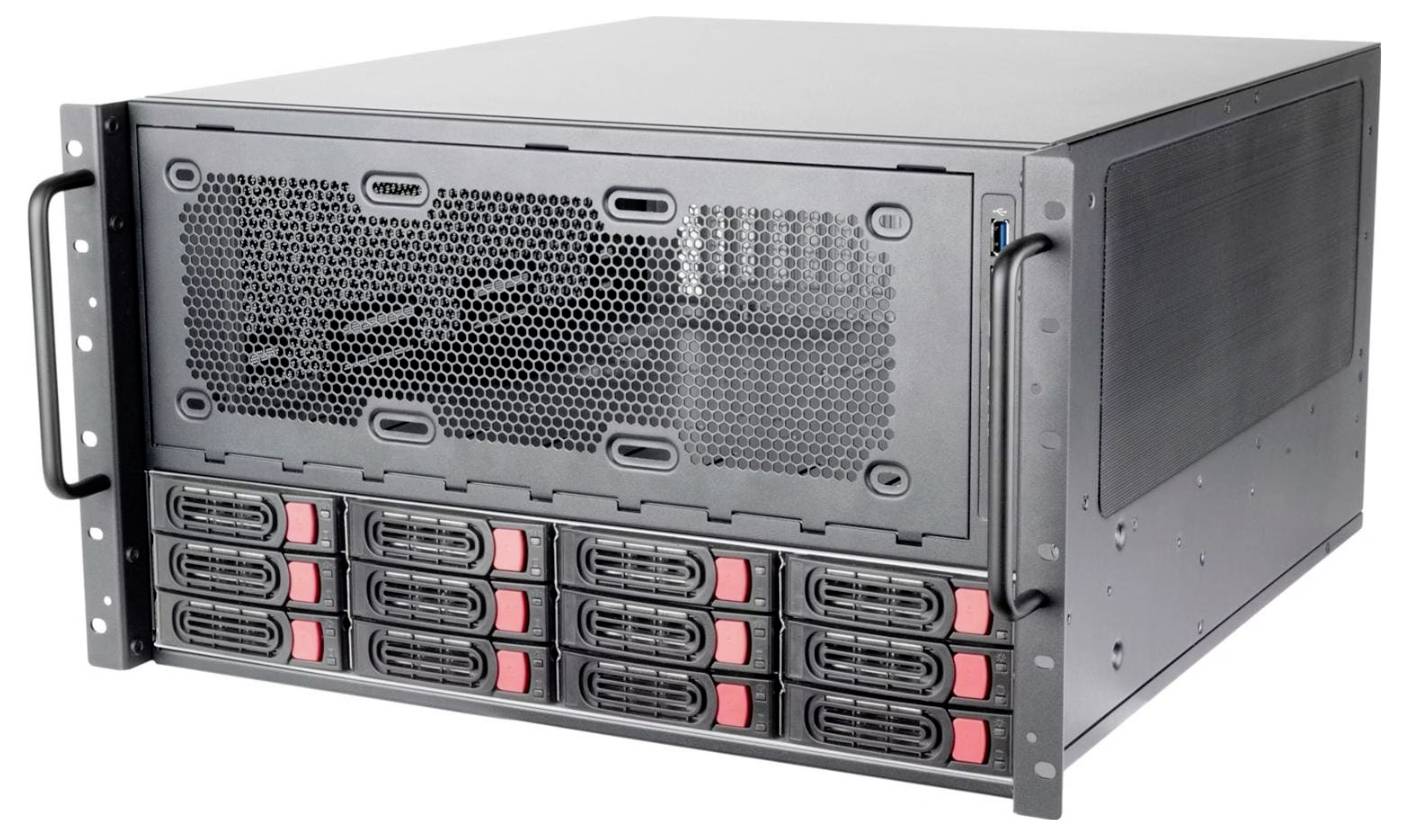

Black rackmount server system with front fans and multiple hot-swap hard drive bays in a metal chassis.

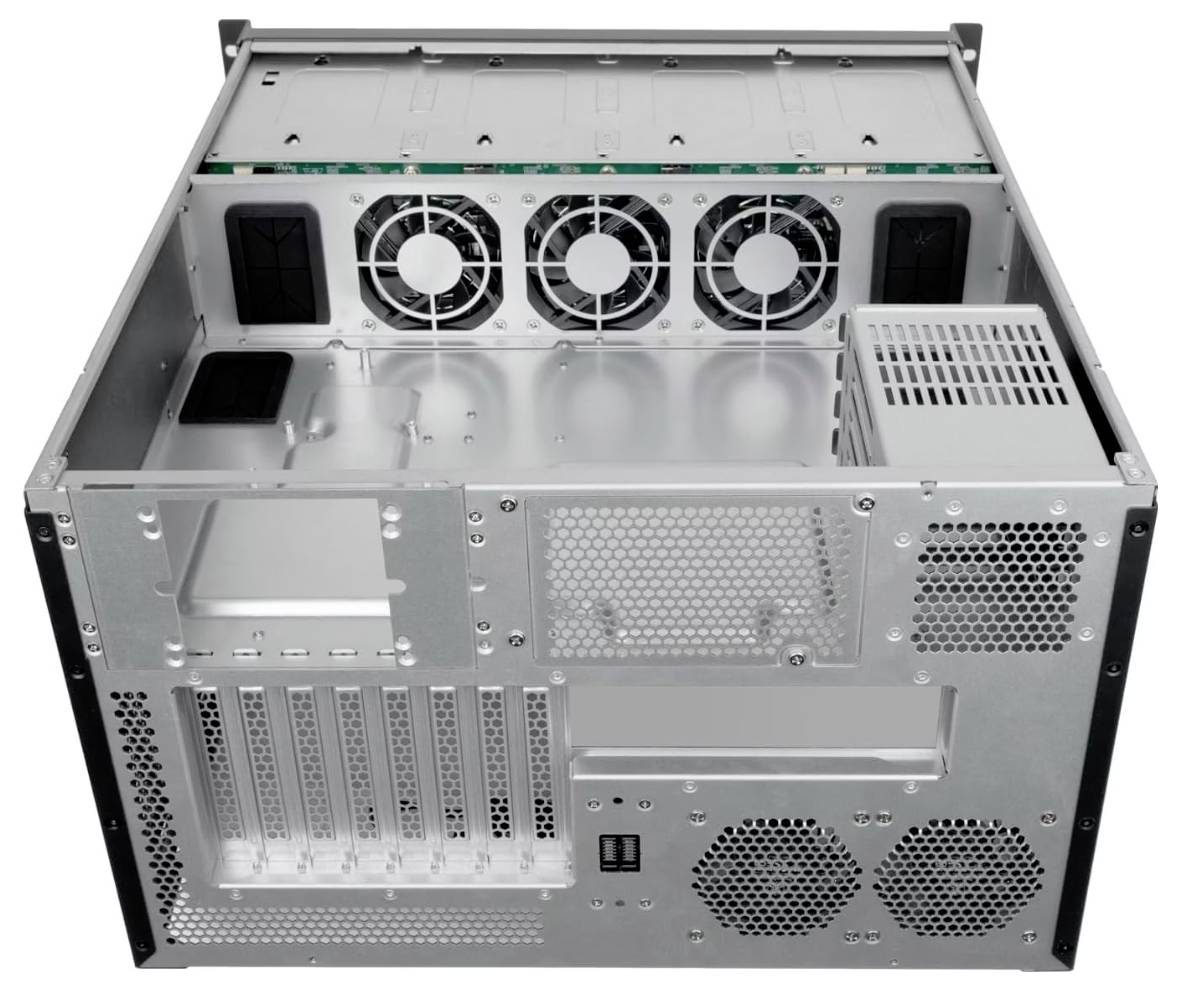

Open metal server case with three fans, multiple expansion and drive bays, and a ventilated rear panel.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Silverstone SST-RM61-312 Casing

Equipped with 12 x 2.5 inch SSD or 3.5 HDD hot-swap-capable compartments
The internal backplane supports 12-port SAS / SATA drives and is equipped with 12 GB/s mini-SAS HD SFF-8643 plugs as well as SGPIO compatibility
Dual power supply support for PS2 (ATX), mini-redundancy or 2HE redundancy
Supports three 360 mm heatsinks
Supports motherboards up to E-ATX or SSI-EEB
Safety lock on removable front flap

Technical specifications

Product type: Casing

Factory colour: Black

6.4 cm (2.5") internal slots: 4

8.9 cm (3.5") internal slots: 12

Width: 438 mm

Height: 265 mm

Depth: 522 mm

Weight: 17.9 kg

Form factor: ATX
E-ATX
Micro-ATX
Mini-ATX
SSI CEB
SSI EEB

Wireless charging: No

Dim: (W x H x D) 438 x 265 x 522 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742829 Silverstone SST-RM61-312 Casing Black

Description

Silverstone SST-RM61-312 housing
6U 12-bay rack-mount enclosure compatible with two power supplies

The Silverstone RM61-312 stands out through its improved storage capabilities, superior cooling standards and extended power supply options. Based on the design of the RM600, it has a custom front panel with 12 hot-swapping drive bays that support 2.5-inch SSDs or 3.5-inch hard drives in 12G SAS or 6G SATA formats. In addition, the housing enables the installation of up to three 360-mm heat sinks, WAS surpasses conventional rack-mount cooling standards thanks to three 120-mm fan holders at the front and side walls. In addition, it provides support for two power supplies, increasing reliability, redundancy and power flexibility.

This text is machine translated.
