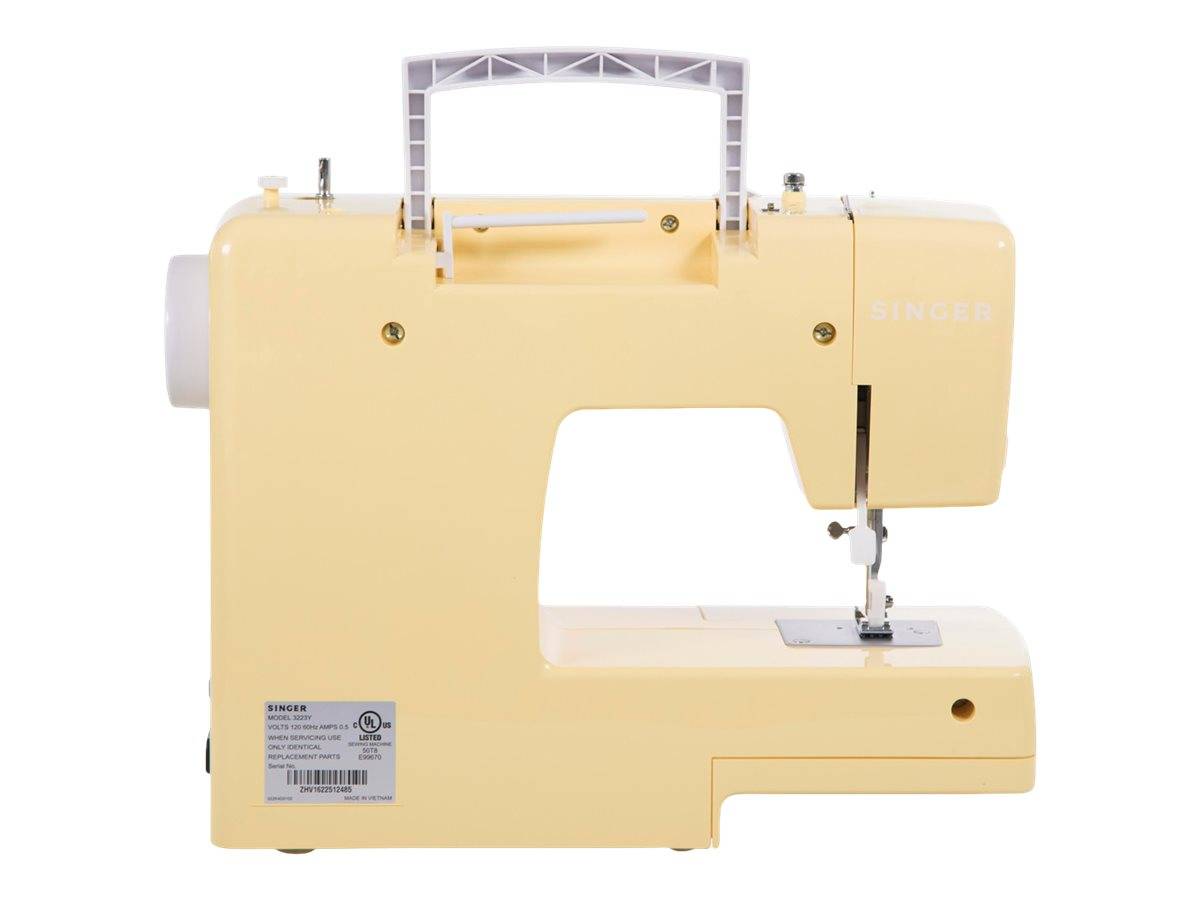

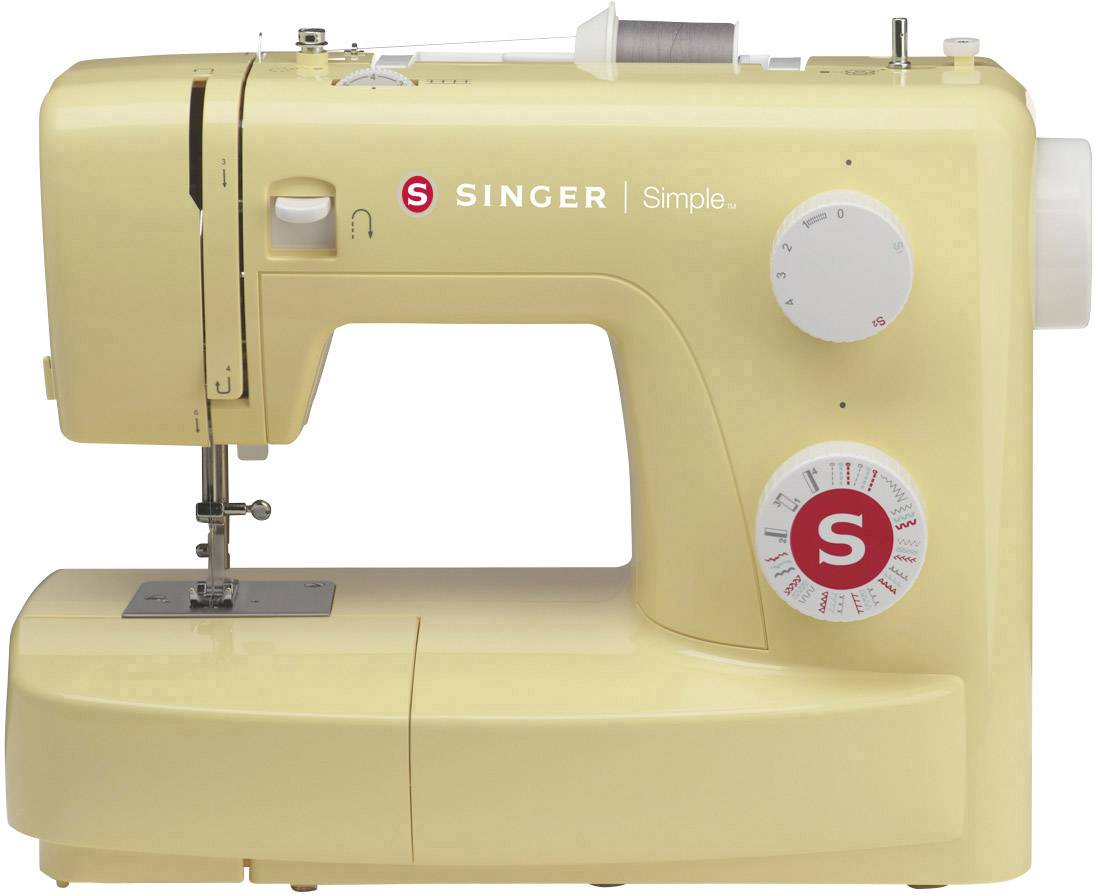

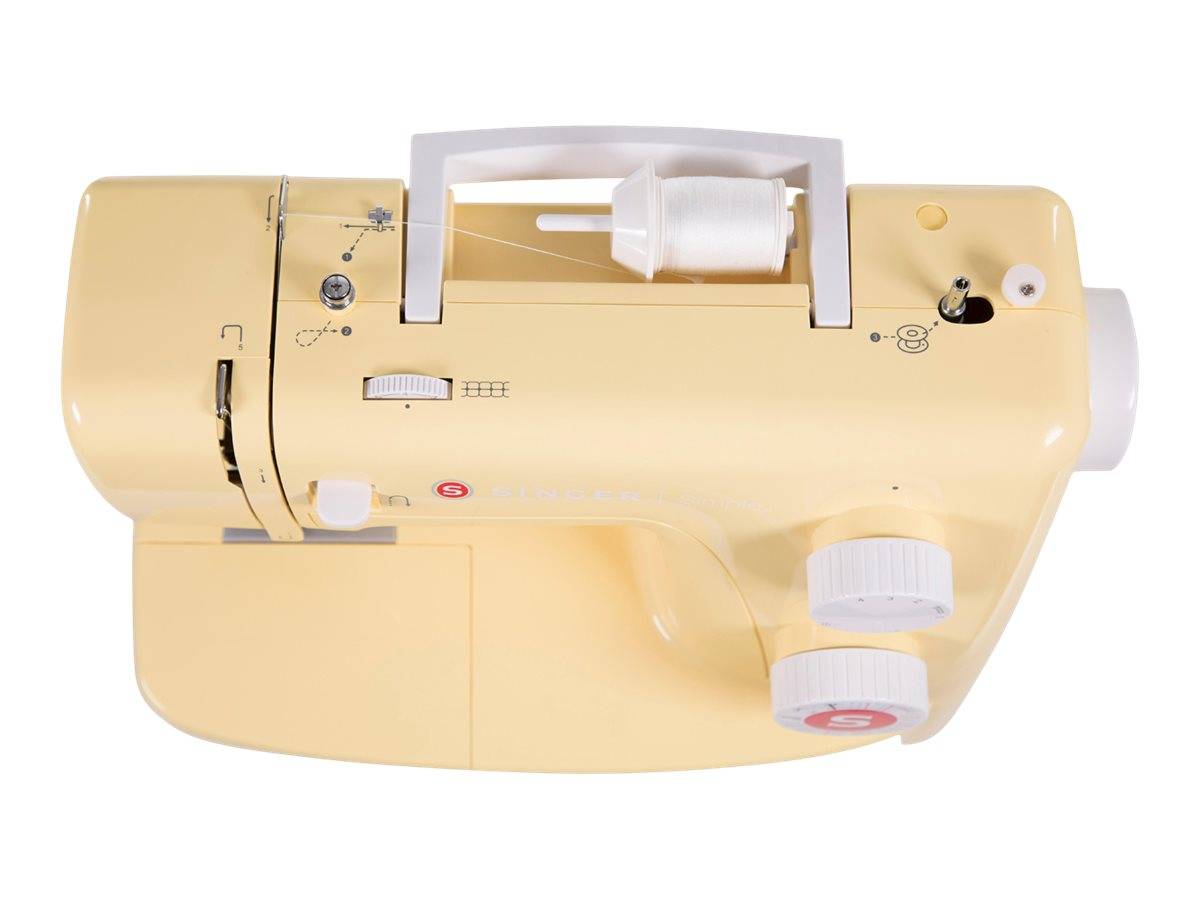

Singer Sewing machine Simple 3223Y Yellow
EAN:
Part number:
Item no:
Highlights & Details
Singer Sewing machine Simple 3223Y
- Free-arm useful stitch sewing machine
- 23 sewing programs
- Including button hole.
- This text is machine translated.
Technical specifications
- Dimensions sewing machine L 370 mm / B 170 mm / H 295 mm
- Factory colour
Yellow
- Product type
Sewing machine
70 W motor / lamp 15 W
- Weight
6 kg
85 W
- Stitch width (max.)
4.5 mm
- Stitch length (max.)
4 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2102881 Singer Sewing machine Simple 3223Y Yellow
Description
Features
- Carrying handle for carrying the sewing machine

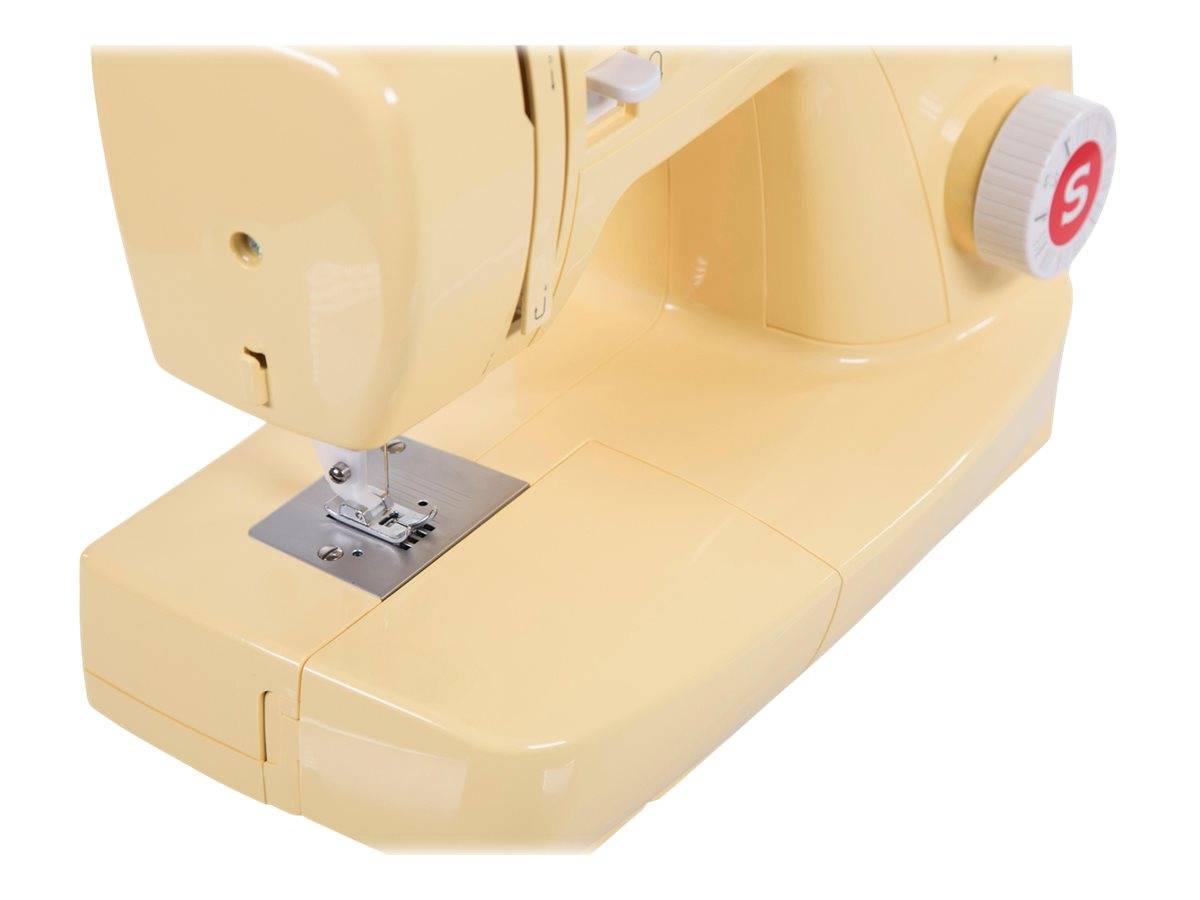

- Free-arm for sewing round-closed like sleeves, trouser legs
- Sewing foot change in seconds by snap-on mechanism
- 2 adjusting wheels for the spur selection and setting of the spur length
- Feeder table with accessory box for accessories
- Sew buttons with the zigzag stitch to sew 2-hole and 4-hole buttons
- Sew backwards using lever pressure
- Thread cutter on the head part of the machine
- Extra high sewing foot stroke offers plenty of space under the sewing foot for voluminous fabrics
- Horizontal twine roller holder for optimum twine flow during sewing
- Stub No. Useful description
- 1 button hole in 4 steps is mechanically sewn by adjusting the dial in 4 steps, ideal for blouses and bed linen
- 2 straight stitch, needle position center for straight and quilting work up to 4 mm stitch length
- 2 Straight, needle position right Straight with needle position right
- 3 zigzag stitch for dusting and appliqué work, also suitable for decorative seams
- Use 4 multi-zigzag stitch to step on rubber bands, stoppers and patches
- 5 elastic blind stitch for invisible seam fixing with simultaneous edge contamination, ideal for easily elastic materials of medium strength, woolen fabrics, gabardines, etc.
- 6 simple blind stitch for an invisible suction attachment of unelastic fabric and medium strength stub no. Stretch description
- 10 Stretch 3-fold straight stitch - for sewing stretchable fabrics or seams with high stress Needle position center
- 10 Stretch 3-fold straight stitch - for sewing stretchable fabrics or seams with high stress, with needle position right needle position right
- 11 Stretch 3-fold zigzag stitch for sewing on rubber bands or sewing on seams with elastic materials
- 12 Wabensteich for sew-on of rubber bands or sewing of seams with elastic materials
- 13 Pullover sgravings are suitable as a quilting stitch, also as a closing and a seam for knitted goods
- 16 closed overlockstitch for simultaneous sewing and dusting of stretchable, even more frantic materials
- 19 Pulloverstime closed as closing and shipping seam for knitted goods
- 21 Overlockstitch as closure and spray seam for knitted, elastic materials stub no. Tasting Description
- 7 Shell edge stony for decorative hem on fine materials
- 8 traditional Greek stitch pattern for edge decoration
- 9 semi-moon stitch satin, for decorative effects on textiles, accessories and much more
- 14 edge-gripping cast for decorative edge work, also as closing and salting seam on worked goods
- 15 slanted edge-cast for decorating smooth fabrics, e.g. at table linen, accessories etc.
- 17 decorative stitch to decorate your sewing projects
- 18 Fagottstich for the stablation of Biederware, bath linen and other stretchable materials
- 20 Edge trim decorative edge trim for smooth materials
- 22 Grätenstich the ideal, decorative border decoration on smooth materials
- 23 decorative stitch to decorate your sewing projects
Scope of delivery
- singer Simple sewing machine
- 1 needle assortment
- 3 coils
- Universal base
- Zipper base
- Button hole base
- Button base
- Screwdrivers
- Brush/seam separator
- Edge/cross guide
- Transport cover plates
- Large and small twine drain disc
- Soft protective cover.
- User manual.
