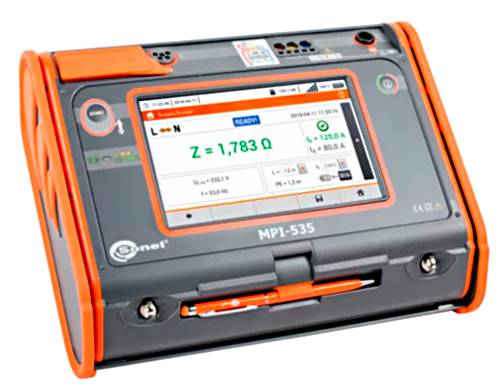

Name: Sonel Multifunktions-Installationsprüfgerät MPI-535 Earth ground meter
Brand: Sonel
SKU: 3763600

Highlights & Details

Multifunctional installation tester

The largest touchscreen display on the market (7”) – exceptional ergonomics and ease of use
Removable memory card – easy expansion of the storage capacity
Li-ion battery - more efficient operation through longer runtime
Measure all parameters with respect to grounding and protection against electric shock - all with one instrument
Quick measurement of short-circuit impedance in RCD-protected systems without tripping (for a few seconds)
Auto Tests – Perform automatic successive measurements – simplified measurements
Lightning fast, from the measurement to the test report

Technical specifications

Product type: Earth ground meter

Interfaces: Wi-Fi
Bluetooth®

: IP51

Dim: (L x W x H) 75 x 288 x 223 mm

Weight: 2.5 kg

Display: Touchscreen

Weight, information: incl. rechargeable battery

Content: 1 Set

Reading category: CAT III 500 V
CAT IV 300 V

Width: 288 mm

Height: 223 mm

Length: 75 mm

Type: Multifunktions-Installationsprüfgerät MPI-535

Documents & Downloads

Datasheet

Datasheet 3763600 Sonel Multifunktions-Installationsprüfgerät MPI-535 Earth ground meter

User & Safety Instructions

User & Safety Instructions 3763600 Sonel Multifunktions-Installationsprüfgerät MPI-535 Earth ground meter

Description

Automatically Safety checks of equipment
The MPI-536 enables the safety inspection of electrical systems in residential, commercial and industrial buildings. Measurements can be easily automated by:
• Testing of residual current circuit breakers in AUTO mode,
• Automatic processes – i.e. freely configurable,
• Use AutoISO-1000C adapters to test the insulation resistance of 3-, 4- and 5-core cables.

Interfaces and software
The numerous communication interfaces and the cooperation with external software are to be highlighted. You can easily transfer measurement data to the PC via a USB port, a removable SD memory card or wireless communication (Bluetooth, Wi-Fi). To report electrical shock protection measurements, use the Sonel REPORTS PLUS software. The saving of the downloaded data in the most common formats and the printing is done via the free software Sonel reader.

Increased resistance
The device is designed for use under difficult environmental conditions. The protection against penetration of dust and water is ensured by the unique IP51 casing. It is also extremely robust to cope with mechanical external influences. A special design of the lid also protects the display against damage. Despite the design for protecting the device, it is nevertheless comfortable to use and transport.

Integrated help menu
The device has integrated help menus with connection diagrams. Thanks to this, you can quickly and easily check and ensure how you need to connect the device to a specific system, depending on the type of measurement.

Brilliant images
The device is equipped with a color TFT LCD touch screen of 800 x 480 pixels and a 7 inch diagonal screen, which enables easy operation and reading of parameters and recorded waveforms. This screen size allows you to view more information at the same time that is currently available. The user interface is easy to read under all lighting conditions. The pen included in the delivery also enables use with insulated gloves

This text is machine translated.
