SONLUX 80P01006-0006 80P01006-0006 LED (monochrome) Work light 421 W
EAN:
Part number:
Item no:
Technical specifications
- Bulb: LED not replaceable
- With bulb: Yes
- Suitable for number of light sources: 24
- Socket: Without
- Material of housing: Aluminium
- With wheels: No.
- With stand holder: No.
- With protective cover: No.
- Protective cover material: Plastic
- Nominal voltage 220..240 V
- With socket: No.
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Lumen maintenance at medium. Service life 100,000 h at 25 °C surrounding temperature: 80 %
- Failure rate at medium. Service life 100,000 h at 25 ° C surrounding temperature (tq): 10%
- Protection class (IP) IP65
- Protection class (NEMA): Other
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Suitable for lamp output 421 W
- Max. System power 421 W
- Rated light current according to IEC 62722-2-1: 52000 lm
- Light color: White
- Colour temperature: 5000 K
- Color Rendering Index CRI: 80-89
- Type of wiring: Finish
- Number of poles: 3
- Conductor cross-section: 2.5 mm²
- Connection type: Other
- Length of connection cable 10 m.
- Product type
Work light
- LEDs
24
- Bulb type
LED (monochrome)
421 W
- Protection class
I
n.rel.
IP65
- Colour
Neutral white
- Material
Aluminium
Plastic
- Feed length
10 m
- Total luminous flux
52000 lm
- Number of pins
3
- Operating voltage
220 V
240
5000 K
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3795818 SONLUX 80P01006-0006 80P01006-0006 LED (monochrome) Work light 421 W
Description

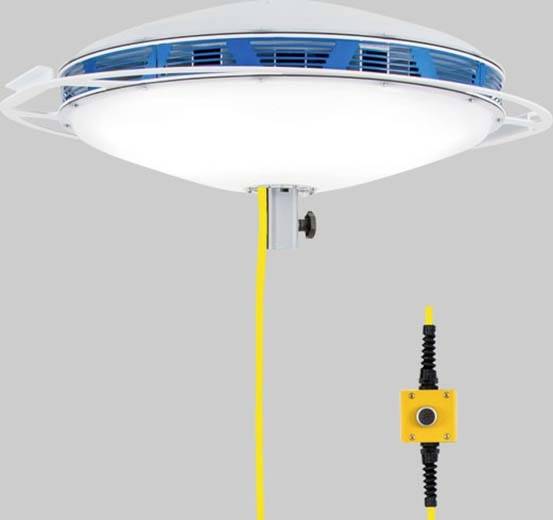

Large surface illumination. Powder-coated aluminum casing. Cover optional, made of impact-resistant and break-proof plastic (polycarbonate). Highly efficient COB LED. Homogeneous, soft and glare-reduced illumination. Can be used on a stand or suspended. On/off and dimmable with button. With 6 bits. Adapter for pin support (d=30 mm, DIN 14640) with the possibility of a straight or 30° inclined mounting.
