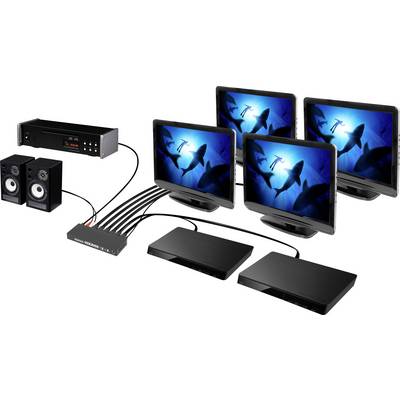

The image depicts a home cinema system with speakers and multiple monitors displaying sharks on their screens, connected to a central device.

1/6

Our service for you

33 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€

Report legal concerns

Highlights & Details

SpeaKa Professional 2x4 HDMI Splitter

2 inputs, 4 outputs
Distribute your HDMI signal on 4 tvs or projectors
Simultaneous playback of images and sound on 4 screens
Supports 480p, 576p, 720p, 1080p and 2160p resolution

Technical specifications

Product type: HDMI splitter

No. of inputs: 2 x

Interfaces (input): HDMI™

No. of outputs: 4 x

Interfaces (output): HDMI™
RCA (phono)
Toslink

Resolution (max.): 3840 x 2160 p

Power supply (LOV): via PSU

Distributor/switch features: + audio ports
+ remote control

Factory colour: Black

Weight: 370 g

Width: 205 mm

Height: 74 mm

Depth: 26 mm

Dim: (W x H x D) 205 x 74 x 26 mm

Port: 4 ports

Supported audio file formats: Dolby-AC3
DTS
LPCM 2.0

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1497182 SpeaKa Professional 4 ports HDMI splitter + audio ports, + remote control 3840 x 2160 p Black

Conformity certificate

Conformity certificate 1497182 SpeaKa Professional 4 ports HDMI splitter + audio ports, + remote control 3840 x 2160 p Black

Description

The 2x4 HDMI Splitter enables two HDMI source devices in a simple way to up to 4 HDMI displays to distribute. Thus it is possible to switch between the two HDMI inputs, without having to change.

The switching of the HMDI inputs is done with the enclosed remote control. The signal of the active HDMI input is parallel to all HDMI outputs.

Well thought-out arrangement of the cable connectors
All connectors are located on the back side of the switch, Thus, the switch can be installed to save space.

3 different audio EDID settings
2CH: The Splitter supports exclusively LPCM 2.0 and transmits this information to the source device.
5CH: the splitter is now compatible with Dolby-AC3, DTS and LPCM 2.0. The source device are the best possible audio format.
PASS: The device automatically detects the best possible supported audio format.

3 different video EDID settings
Video 4K: The Splitter supports resolutions up to 3840 x 2160 @ 30 Hz and transmits this information to the source device. The source device are the best possible resolution.
Video 3D: The Splitter supports resolutions up to 1080p/3D and transmits this information to the source device. The source device are the best possible resolution.
PASS: The Splitter determines the best possible resolution of the target device and transmits this information to the source device.

This text is machine translated.
