Buy SpeaKa Professional SP-HDE-350 HDMI™ via RJ45 network cable KVM function 150 m

Two black devices with the inscription 'HDMI/USB Extender Over IP', labelled as 'Transmitter' and 'Receiver', for signal transmission.

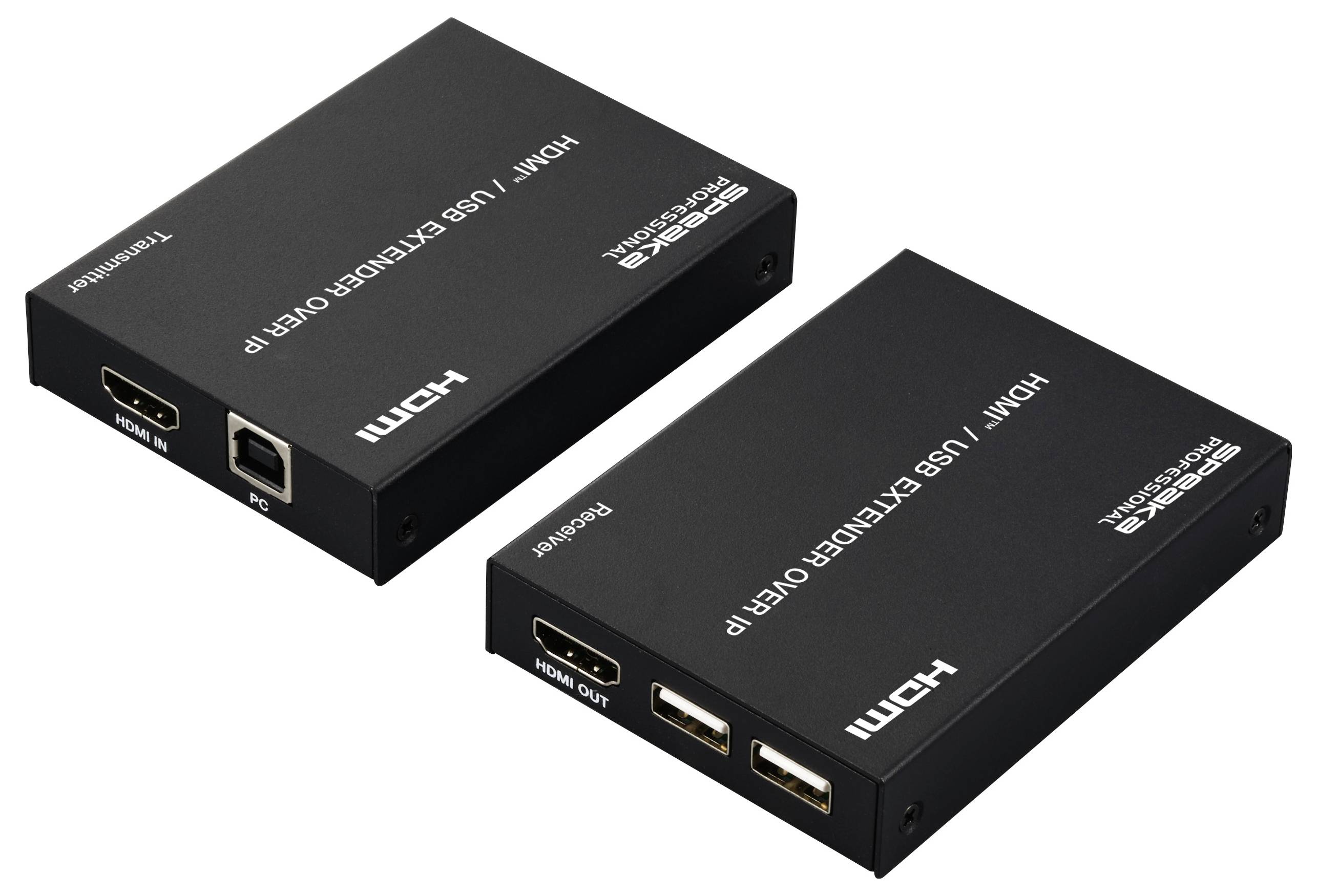

Two black HDMI/USB extender modules, one with HDMI input and USB, and a second with HDMI output and USB ports, each labelled.

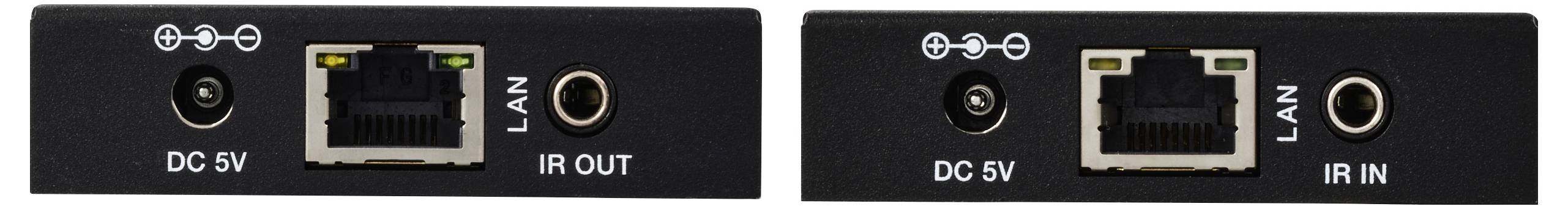

Two black connection panels with LAN ports, IR output/input, and DC 5V connections. Left side IR OUT, right side IR IN.

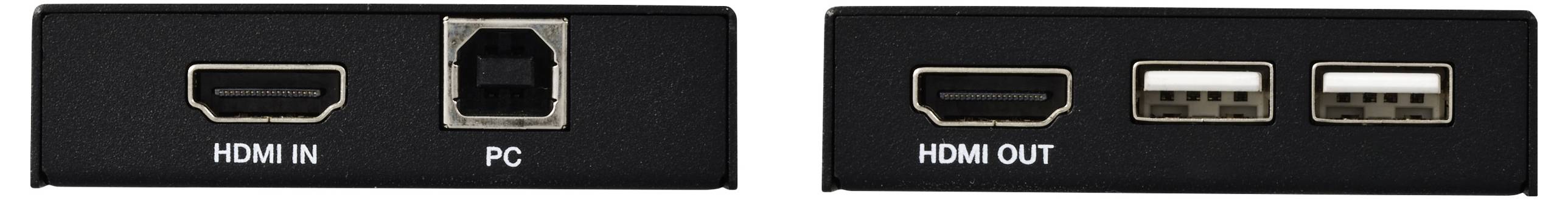

Back of an electronic device with connections: On the left 'HDMI IN', 'PC'; on the right 'HDMI OUT', two USB ports.

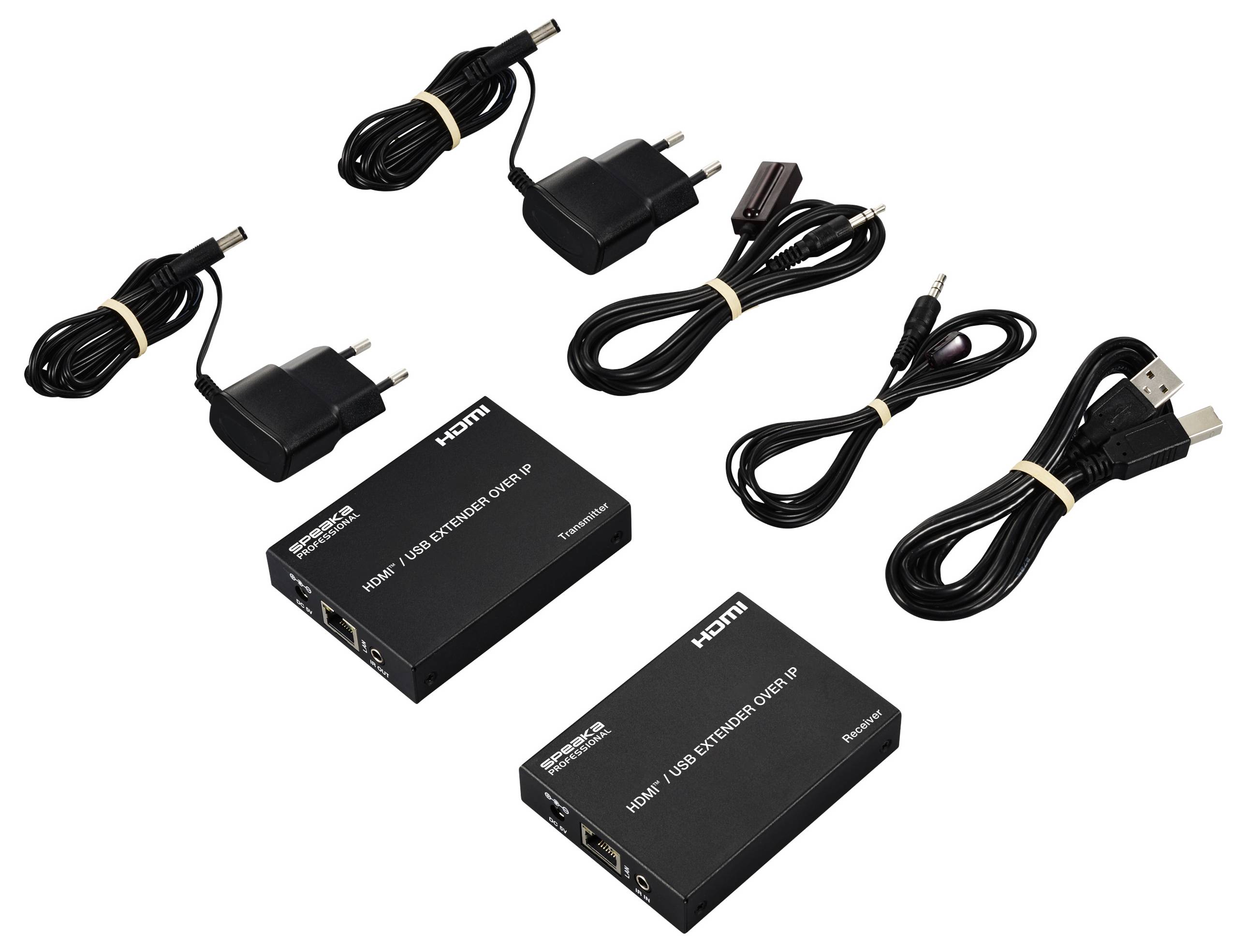

The image shows a set of HDMI-USB extenders with power supplies and cables. The devices are black and connected with various cables.

'Diagram shows connection of PC to monitor, mouse and keyboard via ENC and DEC units. HDMI and CAT connections are highlighted.'

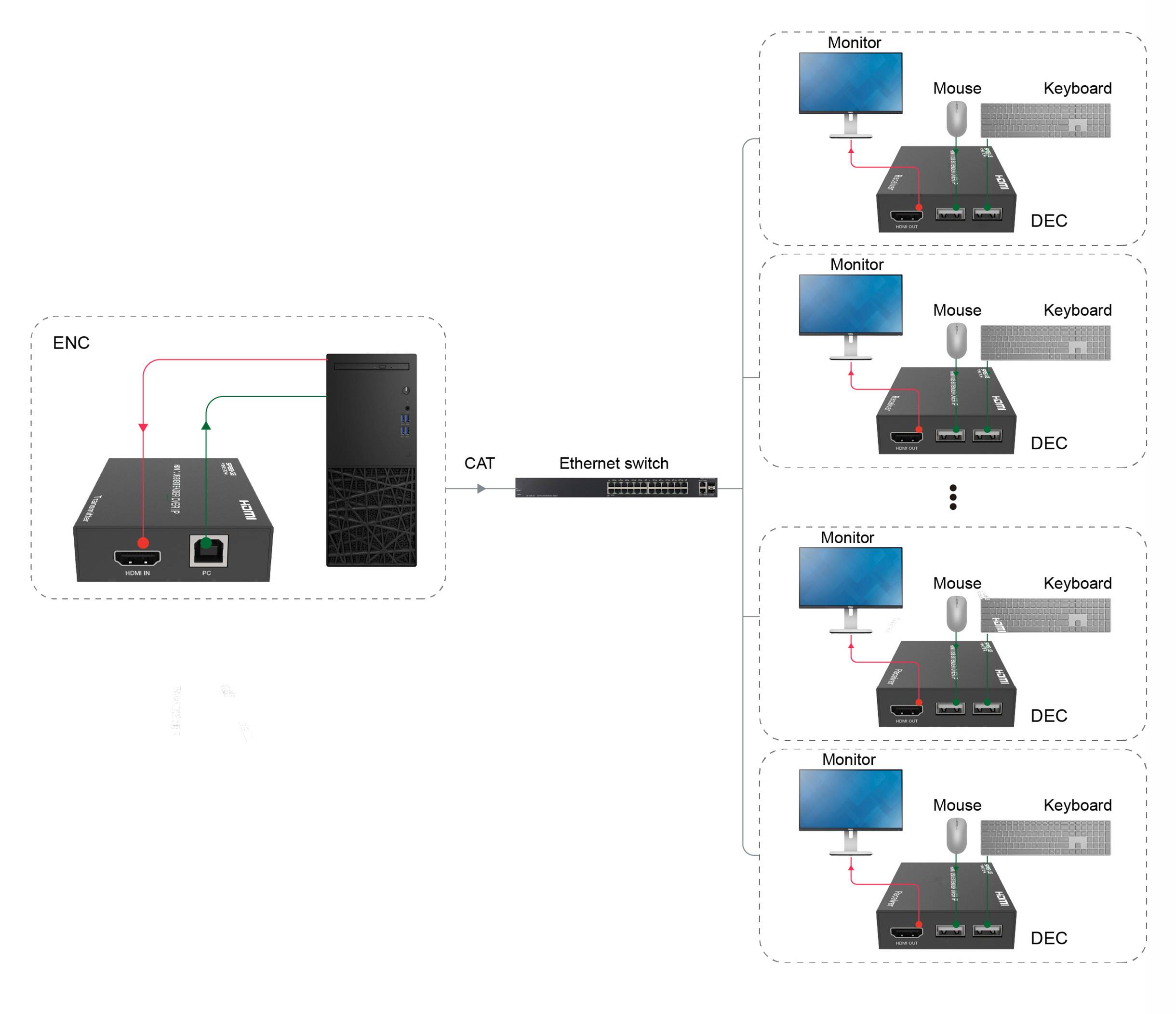

Diagram of a KVM Over IP Connection: An encoder connects multiple decoders via an Ethernet switch, with a monitor, mouse, and keyboard attached to each decoder.

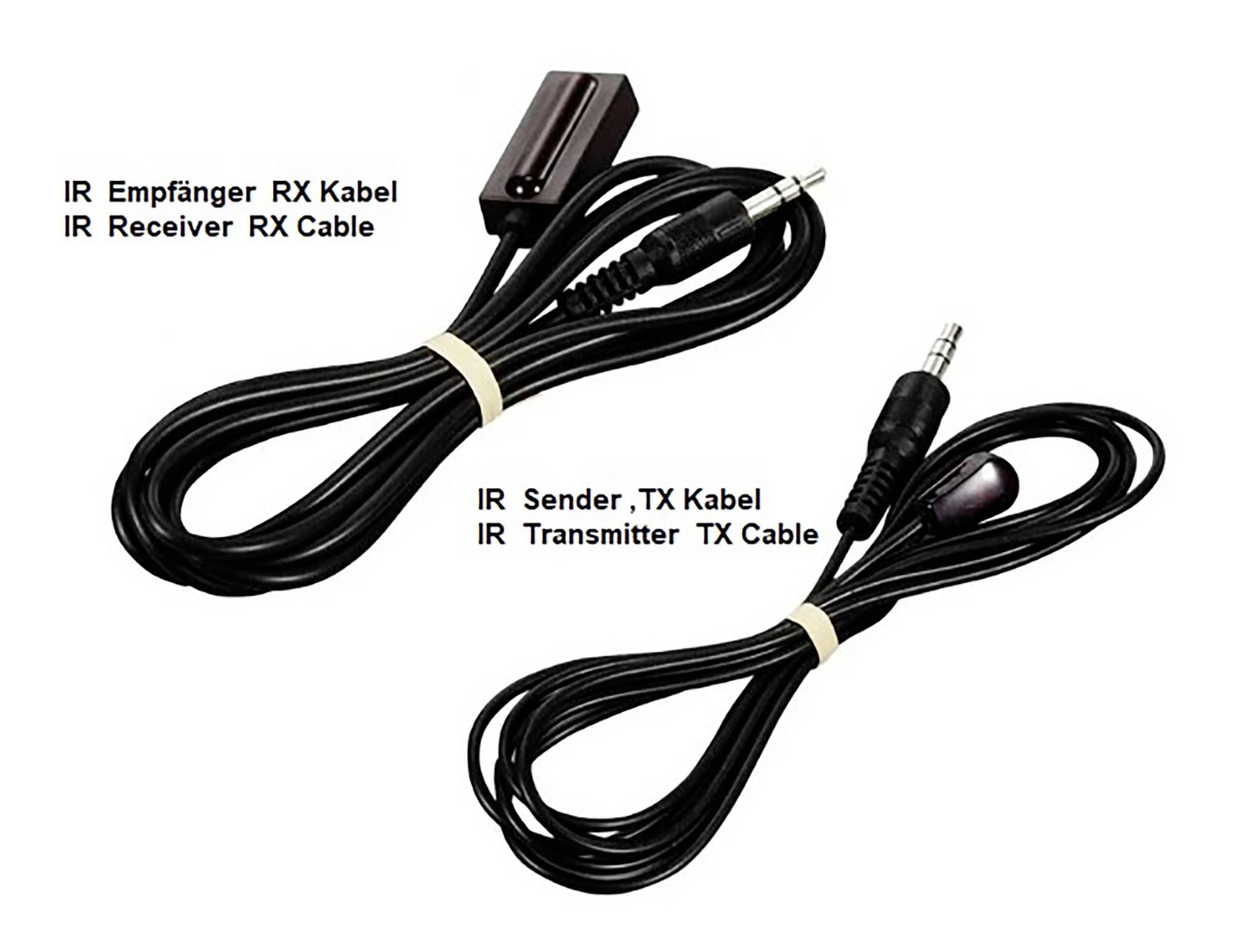

Two cables with jack plugs and labels: 'IR Receiver RX Cable' and 'IR Transmitter TX Cable'. Both are black and coiled.

1/8

Our service for you

114 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€

Report legal concerns

Highlights & Details

SpeaKa Professional SP-HDE-350 HDMI™ via RJ45 network cable KVM function 150 m

Complies with HDCP 1.4
Supports 6.75Gbps video bandwidth
Input video resolution of up to 1920×1200@60Hz
Output video resolution up to 1080P@60Hz
Extend the transmission distance up to 150m between the encoder and decoder using a single Cat5e/6 cable
Accepts standard H.265 encoding/decoding
Supports 1G standard IP switch/router/hub
Supports one-sided IR control signal transmission
KVM function enables the control via the keyboard
Compact design for easy and flexible installation

Technical specifications

Product type: HDMI extender

Transfer type: via RJ45 network cable

Interfaces (input): HDMI™

Interfaces (output): HDMI™

Features: KVM function

Resolution (max.): 1920 x 1200 p

Range (max.): 150 m

Factory colour: Black

Weight: 150 g

Length: 67 mm

Width: 91.5 mm

Height: 17.5 mm

Dim: (L x W x H) 67 x 91.5 x 17.5 mm

No. of outputs: 1 x

No. of inputs: 1 x

Supported monitors: 1

Power supply (LOV): mains-powered

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3193681 SpeaKa Professional SP-HDE-350 HDMI™ via RJ45 network cable KVM function 150 m

Description

The HDMI over IP Extender uses the standard H.265 coding/decoding.
It can distribute an HD content to an HD display device or multiple HD display devices via a standard 1G network switch and extend the distance between the encoder and decoder to up to 150 meters via a Cat5e/6 cable.
It offers a configurable H.265 video compression with high quality and low bandwidth. The input video resolution is up to 1920×1200@60Hz; the output video resolution is up to 1080P@60Hz. It also supports the USB KVM function and the transfer of IR control signals in one direction.
The HDMI over IP Extender consists of two units: Encoder and decoder.
The encoder is responsible for receiving HDMI signals for encoding and transmission via CAT5e / 6 cables. The decoder is responsible for the signal decoding and the output of HDMI-signals to HD-displays.
The product offers the most comfortable solution for the HDMI-extension via a single Cat5e/6-cable and is the perfect solution for all applications, including underground-station, shopping center, control center, education and so on.

This text is machine translated.

Features

Standard H.265 encoding/decoding
With USB-KVM-Function
Supports 1G standard IP switch/router/hub
Supports one-to-one and one-to-many connection modes, and can connect up to 254 receivers
Extends the transmission distance between encoder and decoder to up to 150m/492ft via a single Cat5e/6 cable
Supports 6.75Gbps video bandwidth
Input video resolution of up to 1920×1200@60Hz YCbCr 4:4:4
Output video resolution of up to 1080P@60Hz YCbCr 4:4:4
