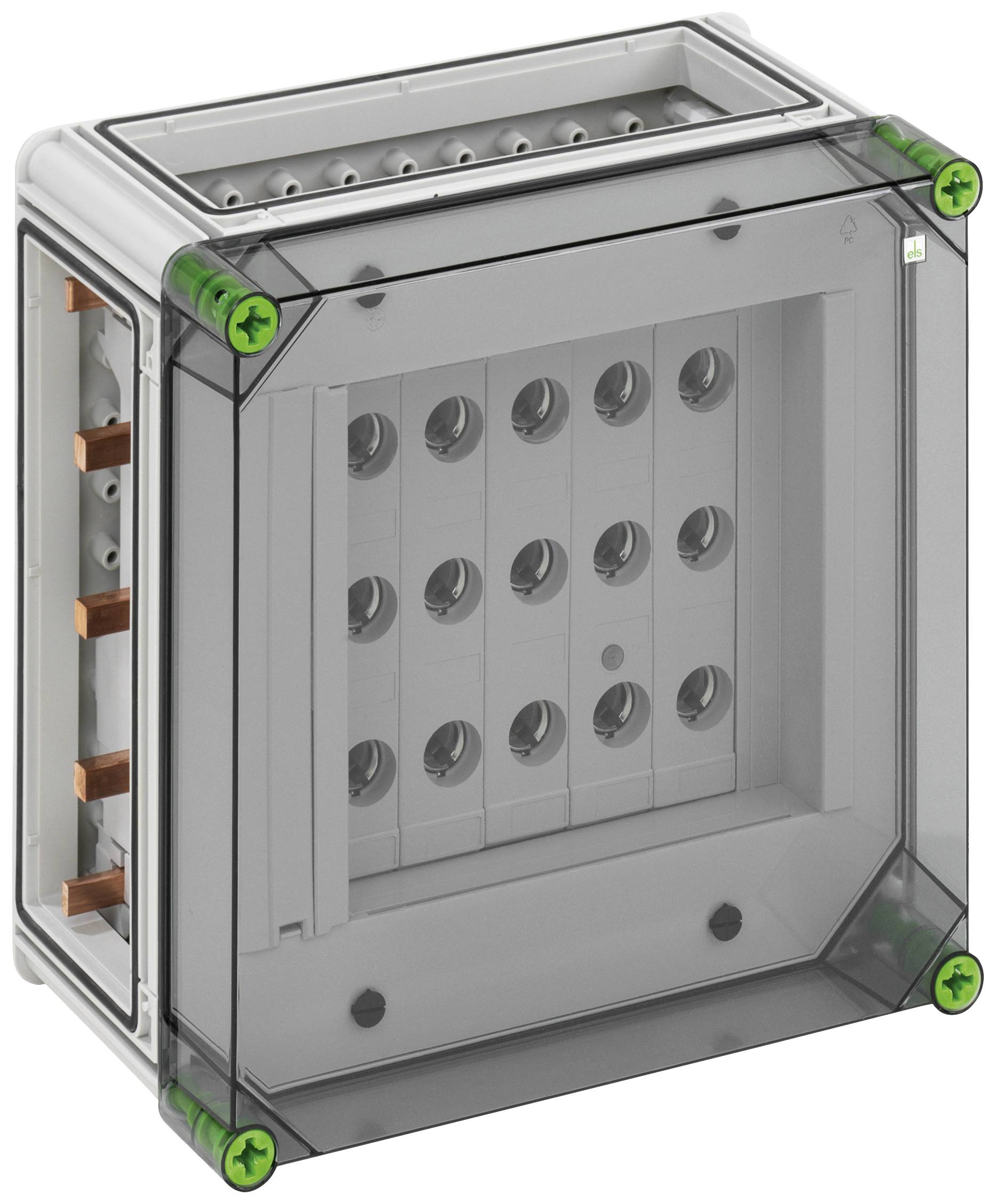

Spelsberg 5522501 GSN 225-250 Switchboard cabinet Busbar No. of rows = 5 Content 1 pc(s)
Product type
Switchboard cabinet
No. of rows
5
Mounting type
Busbar
Width
320 mm
Height
320 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Design: NEOZED® - equestrian fuse housing
- Protection system: IP65
- Rated current 250 A
- Material: Plastic
- Fuse: Screw fuse
- Cover type: Transparent
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- No. of rows
5
- Mounting type
Busbar
- Width
320 mm
- Height
320 mm
- Dim
(W x H x D) 320 x 320 x 179 mm
- Depth
179 mm
- Content
1 pc(s)
320
320 mm
179 mm
250 A
Plastic
IP65
3R
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379227 Spelsberg 5522501 GSN 225-250 Switchboard cabinet Busbar No. of rows = 5 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379227 Spelsberg 5522501 GSN 225-250 Switchboard cabinet Busbar No. of rows = 5 Content 1 pc(s)
Description
NEOZED(R)-Tab-Fuse casing, industrial quality, 5 x 3-pin D02-Tab-Fuse socket, E 18-Thread, Rated current 63 A, Screw connection 1.5-25qmm, on Busbar 5-pin, With 5 busbar terminals 4-35qmm, N terminals 1.5-16qmm, PE terminals 1.5-16qmm, 3 x housing connectors (GGV), on busbar system 250 A, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
