Name: Spelsberg 73442401 AK 24 Distribution board DIN rail No. of partitions = 24 No. of rows = 2 Content 1 pc(s)
Brand: Spelsberg
SKU: 3628620

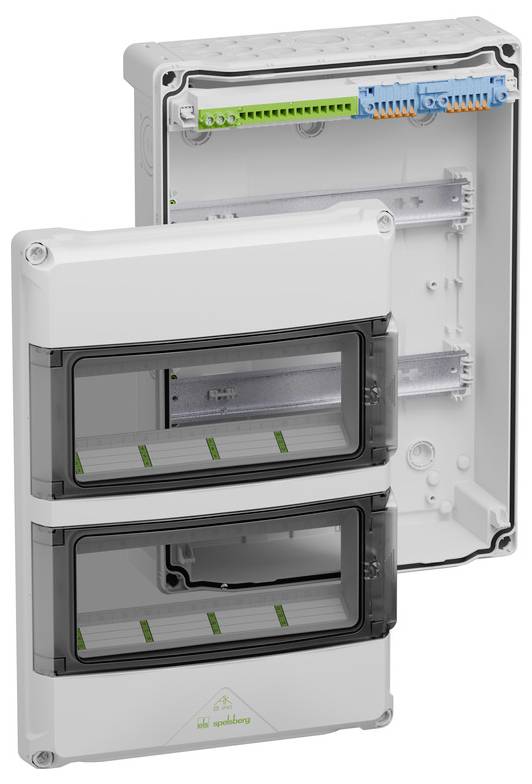

White electrical distribution box with two dark-tinted hinged front covers open, revealing internal wiring terminals and mounting rails.

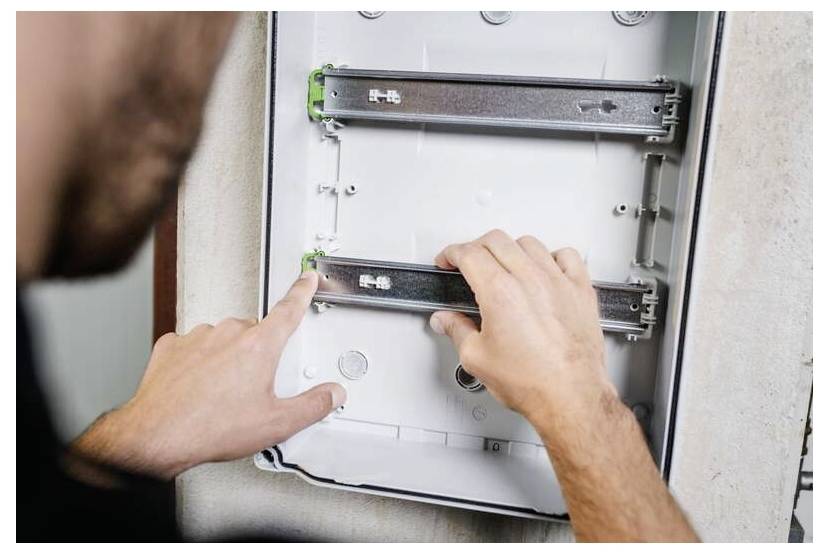

Person installing a metal electrical panel bracket, adjusting the lower rail inside a wall-mounted cabinet.<br>

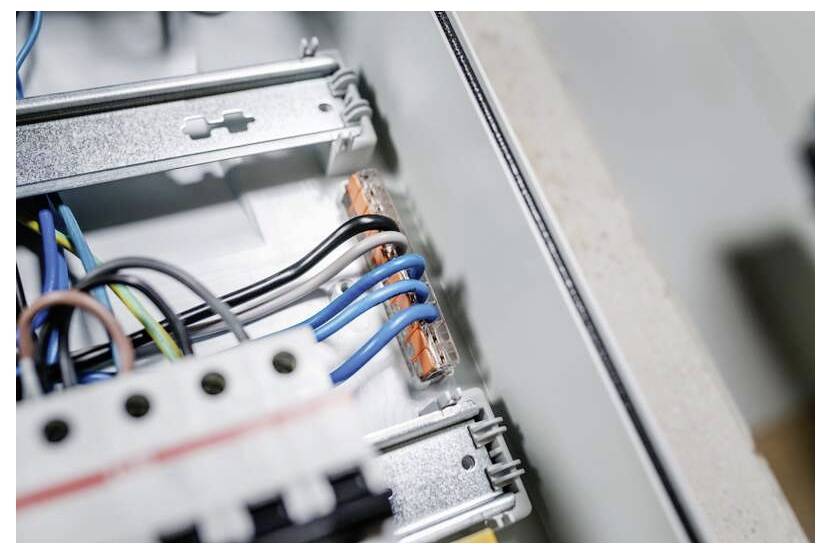

Close-up of electrical wiring inside a circuit panel, with blue and black cables connected to terminal blocks.<br>

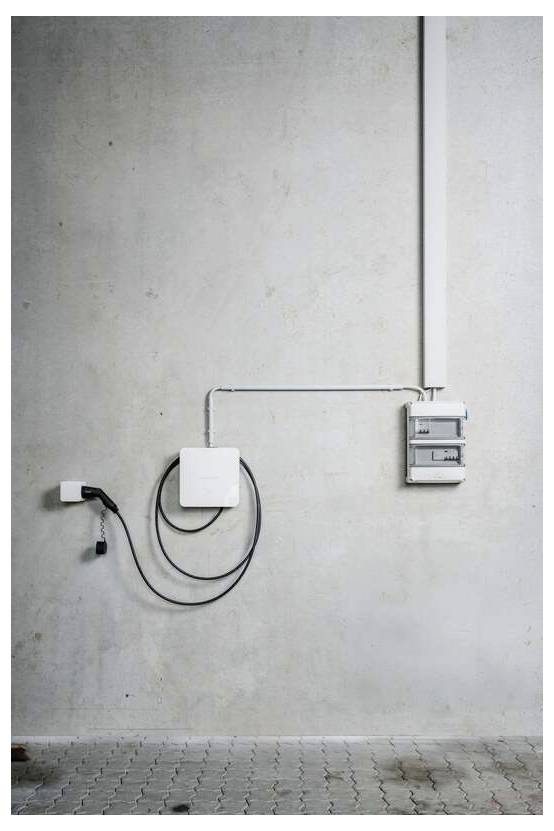

An electrical wall installation with conduit, junction box, coiled cable, and breaker panel on a plain concrete wall.<br>

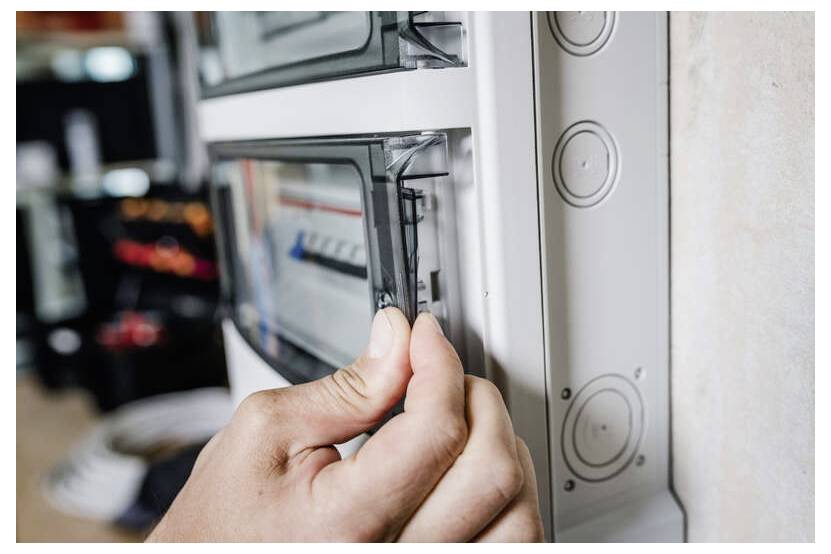

Hand opening an electrical panel cover to access the circuit breakers inside a wall-mounted breaker box.

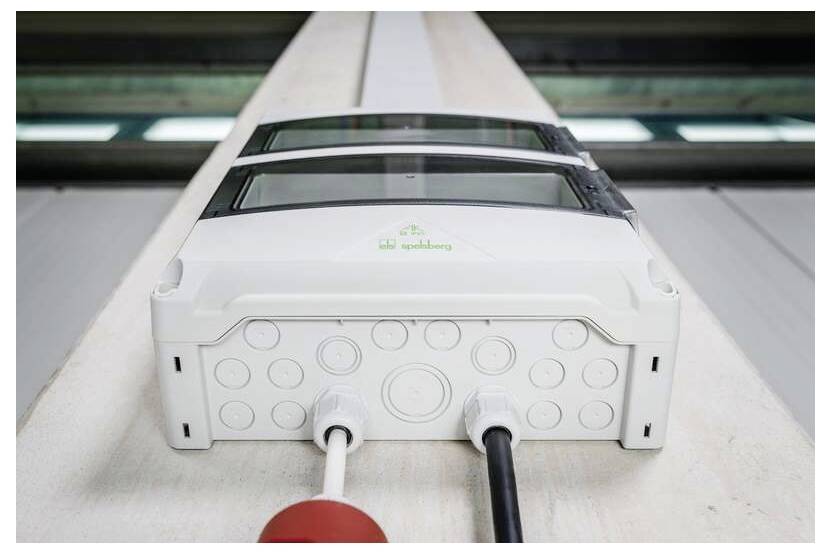

White electrical junction box on a conveyor line with red and black cables plugged into the front, shown in an industrial setting.

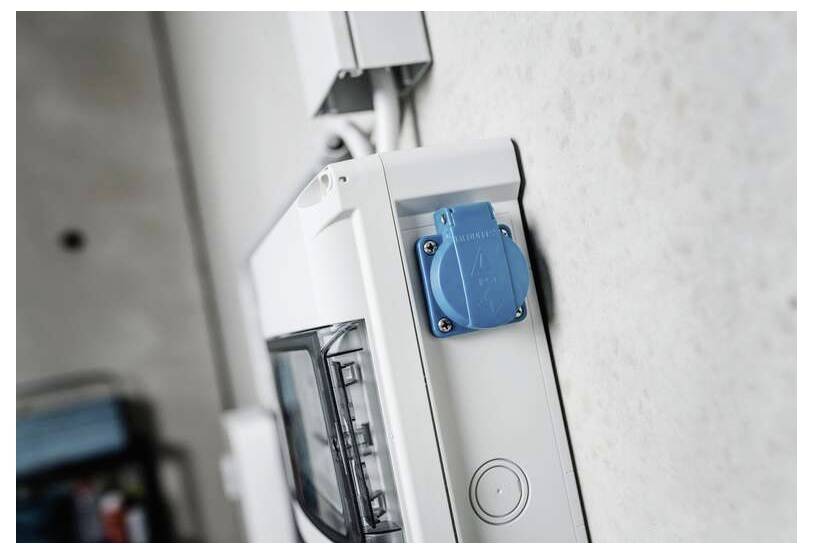

White electrical control box on a wall with a blue industrial power socket and exposed conduit.

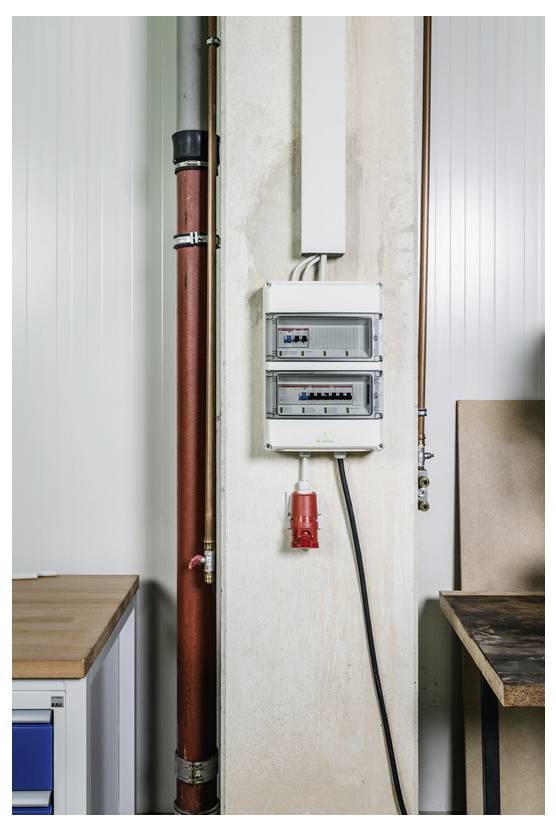

Electrical panel and red pipe installed on an unfinished interior wall between workbenches, with a cable running down to a red outlet box.

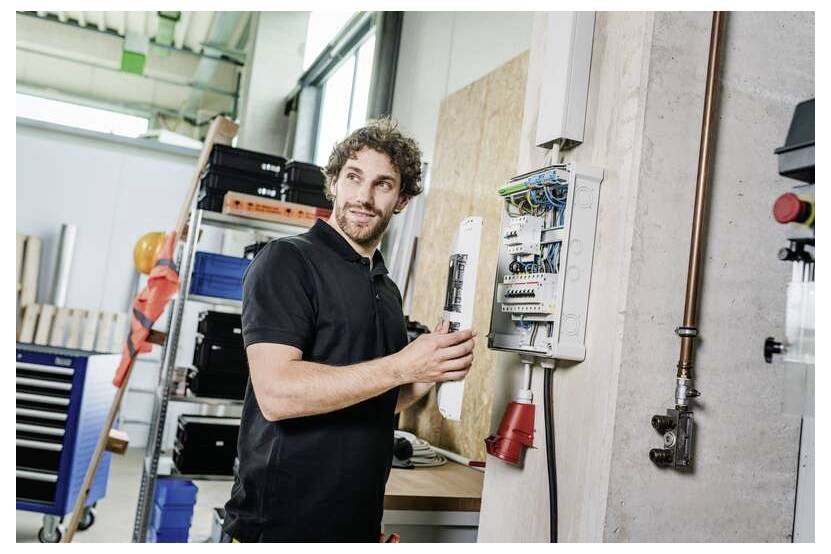

Technician inspecting an electrical control panel in a workshop, holding the door open near tools and storage shelves.

1/9

Product type

Distribution board

No. of partitions

No. of rows

Mounting type

DIN rail

Width

290 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Spelsberg AK 24 Small distribution box, with protection class IP65, 2-row, 24 available division units

Self-sealing, soft introduction membranes on a box front side
Predefined attributes for cable glands or double membrane stub on the other box face
Case can be rotated 180°
Standard rails can be mounted without tools
Inserts for 5-pin 6 mm² WAGO terminal 221 in the box base

Technical specifications

Product type: Distribution board

No. of partitions: 24

No. of rows: 2

Mounting type: DIN rail

Factory colour: Grey

Width: 290 mm

Height: 124 mm

Dim: (W x H x D) 290 x 124 x 407 mm

Depth: 407 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3628620 Spelsberg 73442401 AK 24 Distribution board DIN rail No. of partitions = 24 No. of rows = 2 Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3628620 Spelsberg 73442401 AK 24 Distribution board DIN rail No. of partitions = 24 No. of rows = 2 Content 1 pc(s)

Description

Small distribution box, with degree of protection IP65, 2-row, 24 available division units, rated operating voltage: 400V AC, Rated insulation voltage: 1000V AC, 1500V DC, top self-sealing, soft insertion membranes for tool-free cable entry, bottom metric knockouts for universal cable entry with cable glands and / or double membrane fittings, for the standard installation in the interior

PE/N terminal, consisting of: PE terminal strip with 3 screw terminals 2,5-16 mm² and 14 push-in terminals 0,75-4 mm², 2 N modules (connected with jumper) each with 2 screw terminals 2,5-16 mm² and 6 push-in terminals 0,75-4 mm² with operating lever for tool-free release of the conductor
