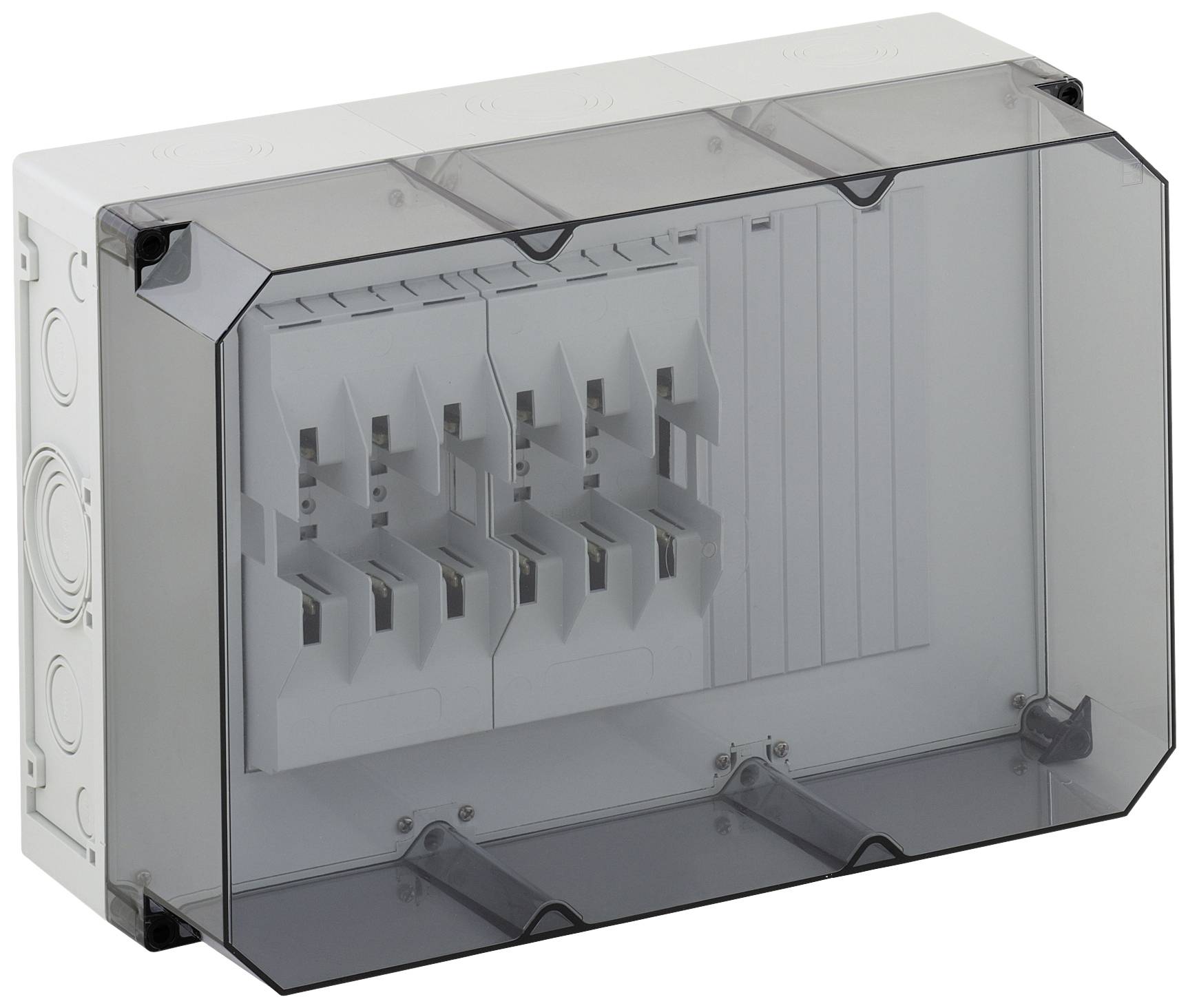

Spelsberg 76232501 AKi-SS 32 Busbar distributor Busbar No. of partitions = 2 No. of rows = 2 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar distributor
No. of partitions
2
No. of rows
2
Mounting type
Busbar
Width
450 mm
Datasheet (PDF)
Technical specifications
- Protection system: IP65
- Rated current 100 A
- Material: Plastic
- Fuse: NH fuse
- Cover type: Transparent
- Product type
Busbar distributor
- No. of partitions
2
- with PE and N terminals
Yes
- No. of rows
2
- Mounting type
Busbar
- Width
450 mm
- Height
300 mm
- Dim
(W x H x D) 450 x 300 x 210 mm
- Depth
210 mm
- Content
1 pc(s)
450
300 mm
210 mm
100 A
Plastic
IP65
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379242 Spelsberg 76232501 AKi-SS 32 Busbar distributor Busbar No. of partitions = 2 No. of rows = 2 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379242 Spelsberg 76232501 AKi-SS 32 Busbar distributor Busbar No. of partitions = 2 No. of rows = 2 Content 1 pc(s)
Description
NH-tab fuse enclosure, industrial quality, 2 x NH 00-tab fuse base, rated current 100 A, clamp connection 1.5-70qmm, outlet on top, 5-pin busbar, With 5 busbar terminals 16-70qmm, N terminals 4-35qmm, PE terminals 4-35qmm, with insulation plug, on 250 A busbar system, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
