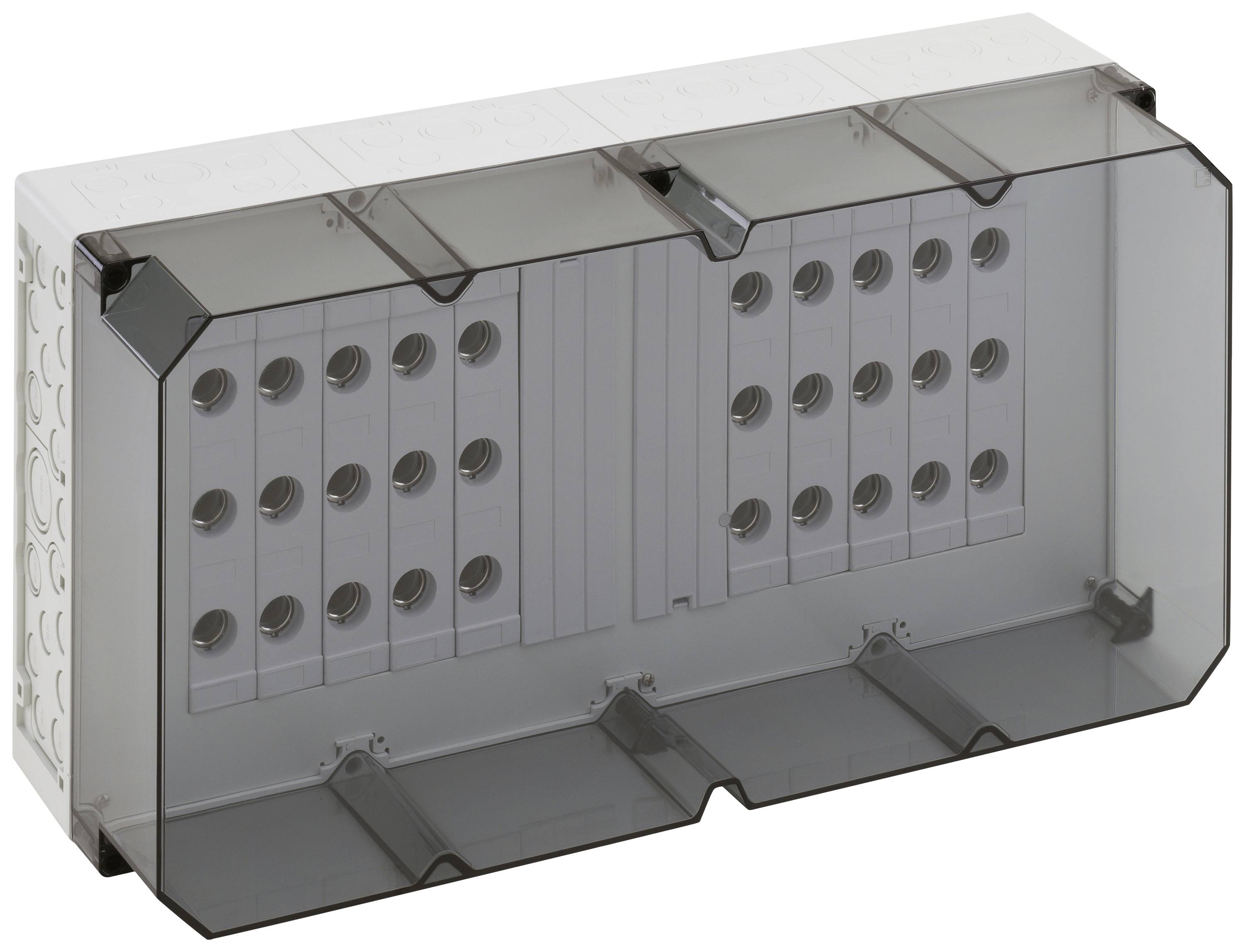

Spelsberg 76741001 AKi-SN 410 Switchboard cabinet Busbar No. of partitions = 1 No. of rows = 1 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
1
No. of rows
1
Mounting type
Busbar
Width
600 mm
Datasheet (PDF)
Technical specifications
- Design: NEOZED® - equestrian fuse housing
- Protection system: IP65
- Rated current 63 A
- Material: Plastic
- Fuse: Screw fuse
- Cover type: Transparent
- Product type
Switchboard cabinet
- No. of partitions
1
- with PE and N terminals
Yes
- No. of rows
1
- Mounting type
Busbar
- Width
600 mm
- Height
300 mm
- Dim
(W x H x D) 600 x 300 x 210 mm
- Depth
210 mm
- Content
1 pc(s)
600
300 mm
210 mm
63 A
Plastic
IP65
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2379246 Spelsberg 76741001 AKi-SN 410 Switchboard cabinet Busbar No. of partitions = 1 No. of rows = 1 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379246 Spelsberg 76741001 AKi-SN 410 Switchboard cabinet Busbar No. of partitions = 1 No. of rows = 1 Content 1 pc(s)
Description
NEOZED(R)-Tab-Fuse casing, industrial quality, 10 x 3-pin D02-Tab-Fuse socket, E 18-Thread, Rated current 63 A, Screw connection 1.5-25qmm, on Busbar 5-pin, N terminals 1.5-16qmm, PE terminals 1.5-16qmm, on 250 A busbar system, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
