Stabila LD520 Laser range finder Calibrated to (ISO standards) 200 m

Handheld laser distance meter with digital display, showing 39.334 metres. Drum unit display and building image.
A laser rangefinder with display shows various measurements in metres, including a large number '199.826 m'.

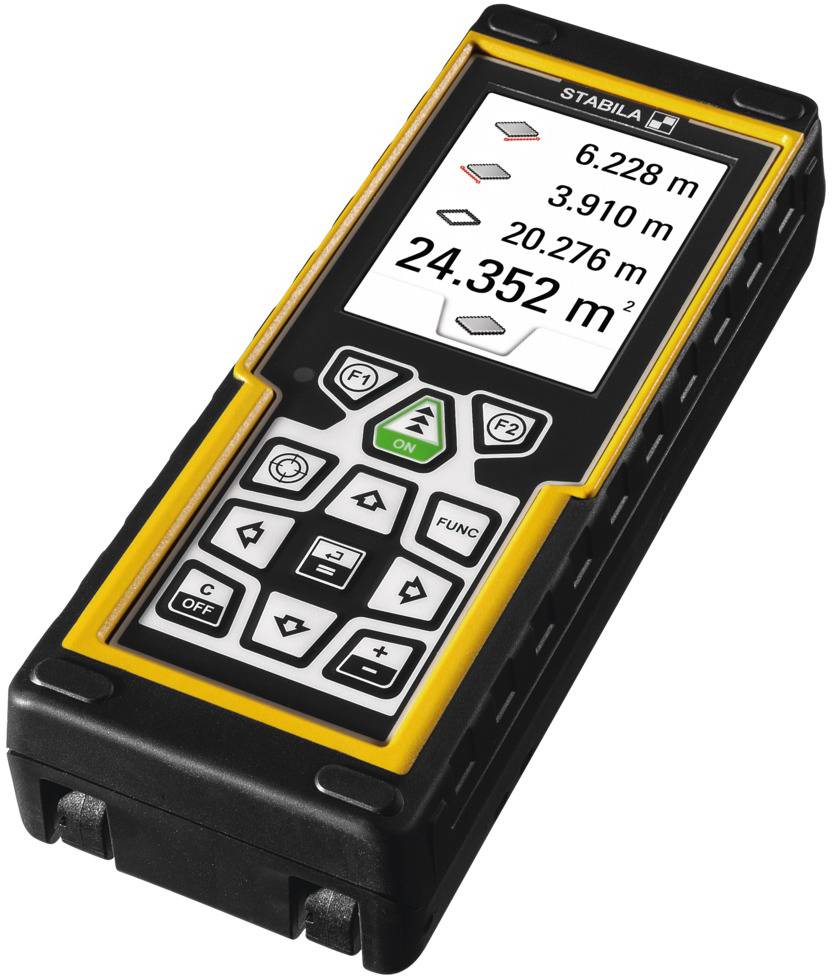

Handy measuring device with a digital display, showing distances in metres and calculated area. Control buttons located underneath.

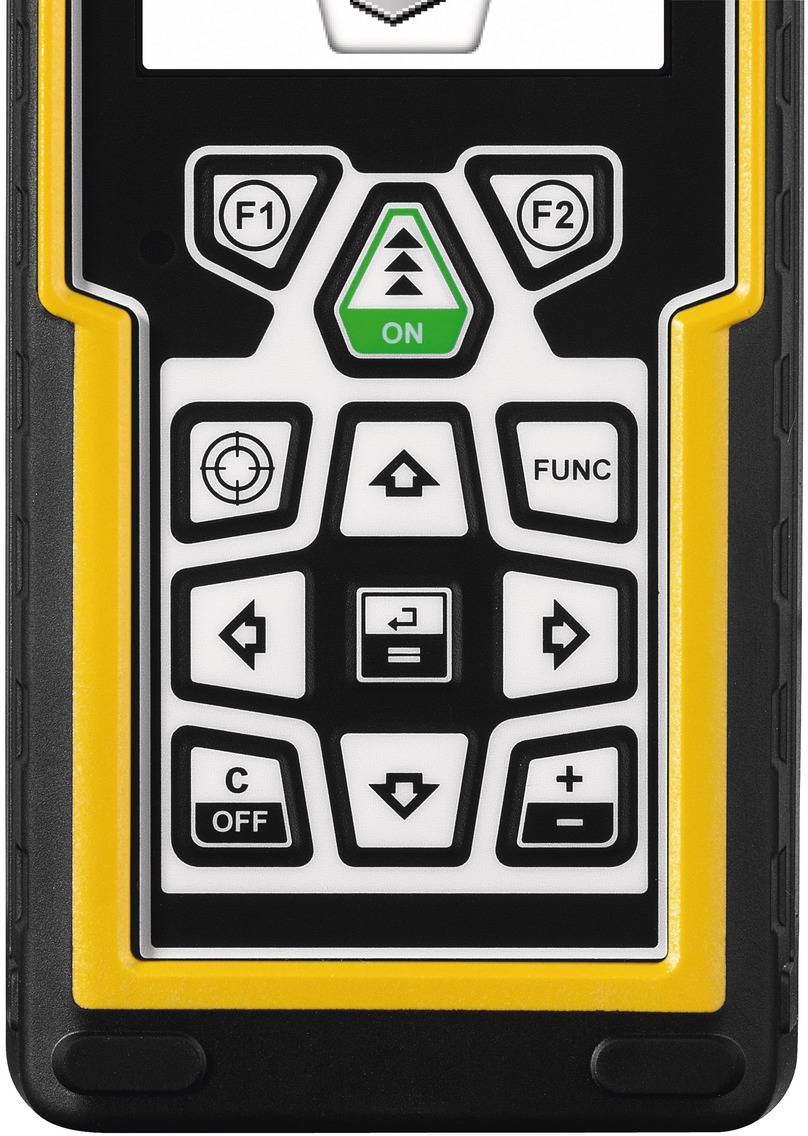

Close-up of a remote control with multiple buttons and arrows, including F1, F2, On, Function, and directional buttons.
A tablet and a digital measuring device are lying on a construction site. The tablet displays a construction drawing, and the measuring device shows a measurement.
A construction worker in a yellow hard hat is measuring a long concrete hall using a laser distance meter.
A laser distance measuring device is lying on a concrete surface, with a building under construction and a construction crane in the background.
A laser rangefinder displays the distance to a modern, white building with large windows against a blue sky in the background.
A white, modern building with an angled roof stands in the background, while a laser distance measurer is visible in the foreground.
1/9
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Stabila LD 520 laser distance meter, with digital target detection, Bluetooth smart 4.0

  • Reading range 0.05 m - 200 m
  • Accuracy ±

Technical specifications

  • PROFILASS 5.1 AAB717c003
  • Protection class IP54
  • Incl. Tripod holder
  • Tripod socket 1/4".
Product type

Laser range finder

Min. reading range

0.05 m

Max. reading range

200 m

Weight

0.15 kg

Laser category

2

Laser wavelength

635 nm

Dim

(L x W x H) 5.70 x 3.20 x 14.4 cm

Width

3.20 cm

Height

14.4 cm

Length

5.70 cm

ISO standards

Type

LD520

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2387418 Stabila LD520 Laser range finder Calibrated to (ISO standards) 200 m

User & Safety Instructions

User & Safety Instructions 2387418 Stabila LD520 Laser range finder Calibrated to (ISO standards) 200 m

Information

Information 2387418 Stabila LD520 Laser range finder Calibrated to (ISO standards) 200 m

Warranty Terms

Warranty Terms 2387418 Stabila LD520 Laser range finder Calibrated to (ISO standards) 200 m

Description

This device shines with a built-in camera with 4x zoom. This allows you to capture outdoor targets in up to 200 m, even if the laser point is not visible. Thanks to the integrated Bluetooth® 4.0 smart wireless technology, the measurement data can be easily transferred to a smartphone or tablet computer. With 18 functions, this all-rounder is an indispensable companion for craftsmen and other professional users. It helps to calculate material costs and labor costs quickly and efficiently. An investment that greatly simplifies everyday work and pays for itself within a very short time.
