Name: StandexMeder Electronics HE24-1A69-03 Reed relay 24 V DC 3 A 50 W
Brand: StandexMeder Electronics
SKU: 3846148

Gray rectangular electronic relay with printed circuit symbol and model number 'HE24-1A69' on top.

Dimensioned technical drawing of a rectangular electronic component, showing overall size 65 by 15.5 and lead spacing/diameter measurements.<br>

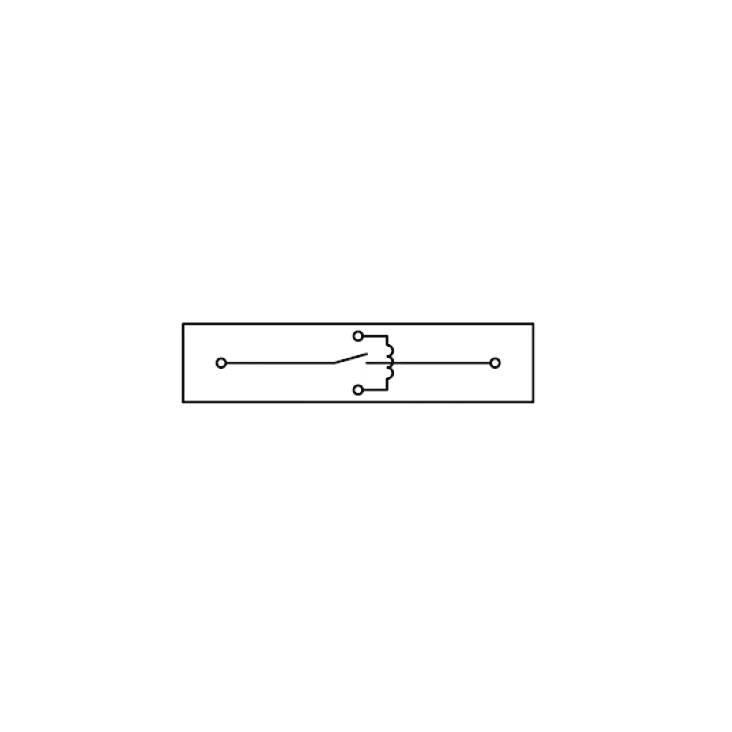

Simple electrical switch schematic inside a rectangle, showing a horizontal line with two terminals and a central contact mechanism.

1/3

Product type

Reed relay

Connection

THT

Nominal voltage

24 V DC

Switching voltage (max.)

10000 V DC

Switching current (max.)

3 A

Datasheet (PDF)

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Standex Electronics THT reed relay series HE SPST-NO 24VDC 3A 465Ohm soldering connection

High-voltage relay
Axial wire connection
Compact design
Housing: 65x14.5x15.5mm
Special pin assignment
This text is machine translated.

Our service for you

Technical specifications

Contact: SPST-NO
Transport current (contact) 5 A.
Contact resistance 150 mOhm.
Coil resistance 465 ohms
Coil rating: 1240 mW
Operating voltage coil 18 V
Drop-out voltage spool 2 V
Response time: 3 ms.
Decay time 1.5 ms
Insulation resistance 10000 ohms
Vibration resistance 20 g
Soldering temperature, max. 260°C / 5s

Product type: Reed relay

Type: HE24-1A69-03

Connection: THT

Nominal voltage: 24 V DC

Switching voltage (max.): 10000 V DC

Switching current (max.): 3 A

Max. switching capacity: 50 W

Length: 65 mm

Width: 14.5 mm

Height: 15.5 mm

Dim: (L x W x H) 65 x 14.5 x 15.5 mm

RoHS-compliant: Yes

Operating temperature: -20-70 °C

Weight: 36 g
