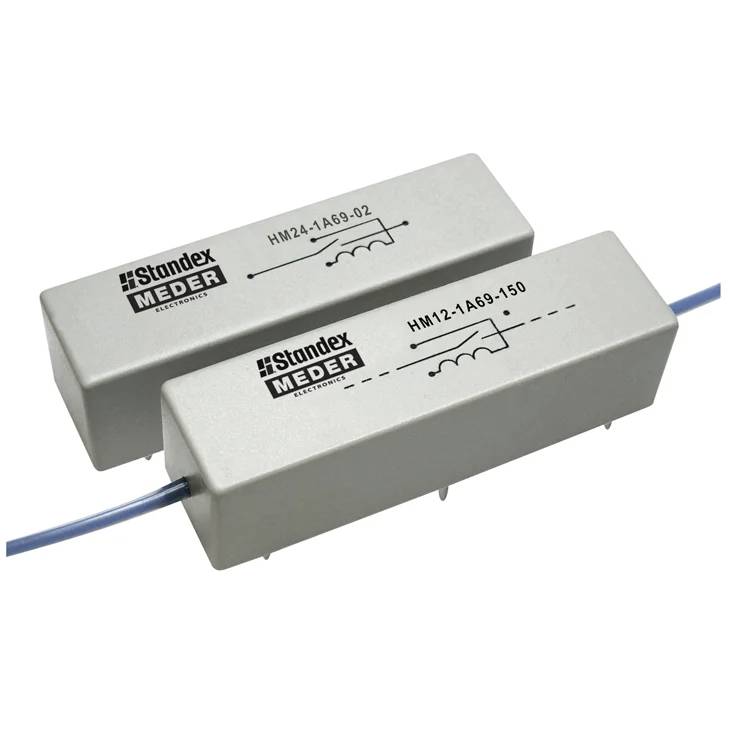

StandexMeder Electronics HM24-1A83-02 Reed relay 24 V DC 3 A 50 W
Product type
Reed relay
Connection
THT
Nominal voltage
24 V DC
Switching voltage (max.)
7500 V DC
Switching current (max.)
3 A
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Standex Electronics THT reed relay series HM SPST-NO 24VDC 3A 1,000Ohm soldering connection
- High-voltage relay
- Compact design
- Case:
- 68x19x19 8 mm
- This text is machine translated.
Our service for you
Technical specifications
- Contact: SPST-NO
- Transport current (contact) 5 A.
- Contact resistance 150 mOhm.
- Coil resistance 1000 ohms
- Coil rating: 576 mW
- Operating voltage coil 18 V
- Drop-out voltage spool 2 V
- Response time: 3 ms.
- Decay time 1.5 ms
- Insulation resistance 1000 ohms
- Vibration resistance 20 g
- Soldering temperature, max. 260°C / 5s
- Product type
Reed relay
- Type
HM24-1A83-02
- Connection
THT
- Nominal voltage
24 V DC
- Switching voltage (max.)
7500 V DC
- Switching current (max.)
3 A
- Max. switching capacity
50 W
- Length
68 mm
- Width
19 mm
- Height
19.8 mm
- Dim
(L x W x H) 68 x 19 x 19.8 mm
- RoHS-compliant
Yes
- Operating temperature
-20-70 °C
- Weight
50 g
