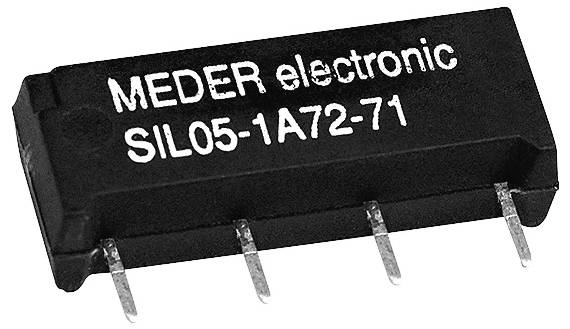

StandexMeder Electronics SIL05-1A72-71DHR Reed relay 5 V DC 0.5 A 10 W SIP 7
Product type
Reed relay
Enclosure
SIP 7
Connection
THT
Nominal voltage
5 V DC
Switching voltage (max.)
200 V DC
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Standex electronics THT reed relay SIP SIL series SIL SPST-NO SIP/SIL07 5VDC 0.5A 500Ohm soldering connection
- High coil resistance
- Dual-in-line IC compatible relay
- Housing: 19.8x5.08x7.8mm
- With diode
- This text is machine translated.
Our service for you
Technical specifications
- Contact: SPST-NO
- Transport current (contact) 1 A.
- Contact resistance 100 mOhm.
- Coil resistance 500 ohms
- Coil rating: 50 mW
- Operating voltage coil 3.5 V
- Drop-out voltage spool 0.75 V
- Response time: 0.5 ms.
- Decay time 0.1 ms
- Insulation resistance 10^10 ohms
- Vibration resistance 20 g
- Soldering temperature, max. 260°C / 5s
- Product type
Reed relay
- Type
SIL05-1A72-71DHR
- Enclosure
SIP 7
- Connection
THT
- Nominal voltage
5 V DC
- Switching voltage (max.)
200 V DC
- Switching current (max.)
0.5 A
- Max. switching capacity
10 W
- Length
19.8 mm
- Width
5.1 mm
- Height
7.8 mm
- Dim
(L x W x H) 19.8 x 5.1 x 7.8 mm
- RoHS-compliant
Yes
- Operating temperature
-20-70 °C
- Weight
2.2 g
