Steinel L 800 SC ANT 065690 Outdoor wall light (+ motion detector) LED (monochrome) w/o 7.5 W Anthracite
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED outdoor lamp L 800 SC anthracite
- Power= 7.5 W Total luminous flux= 466 lm Colour temperature= 3000 K
Technical specifications
- Product type
Outdoor wall light (+ motion detector)
- Type
Rectangular
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
7.5 W
7.5 W
- Energy consumption
7.5 kWh/1000h
3000 K
466 lm
- Total luminous flux
466 lm
- PIR detection angle (horizontal)
160°
- Coverage max. (width)
5 m
- Adjustable on-time (min.)
5 s
- Adjustable on-time (max.)
60 min
- Light features
Incl. motion detector
Incl. dimmer
- Protection class
II
IK03
IP44
- Factory colour
Anthracite
- Material
Aluminium
Plastic
- Weight
0.914 kg

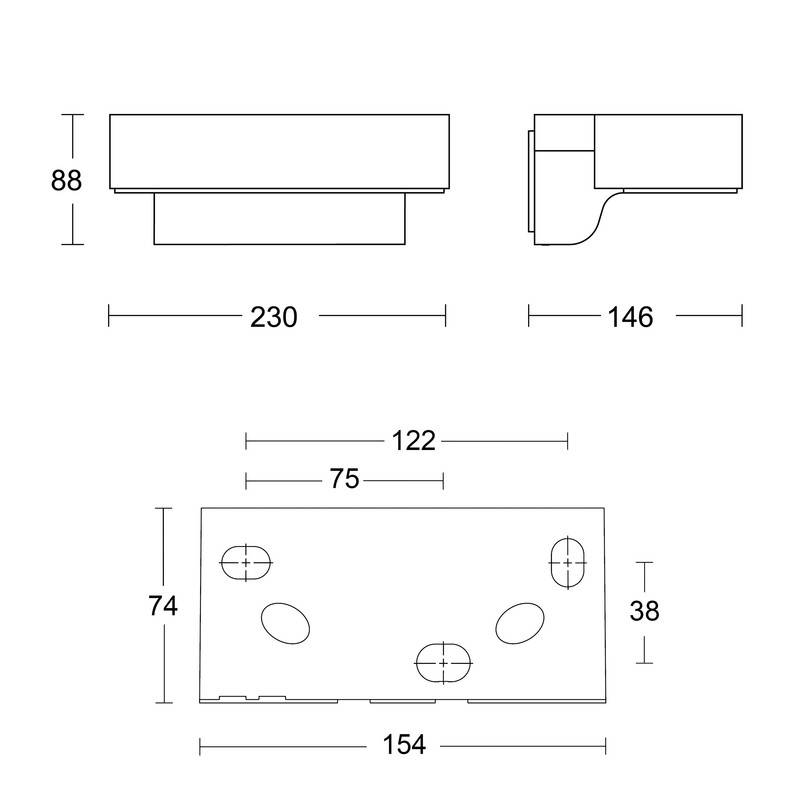

- Dim
(L x W x H) 145 x 230 x 88 mm
n.rel.
- Light bulb included
Yes
- Width
230 mm
- Height
88 mm
- Length
145 mm
- Depth
146 mm
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2573567 Steinel L 800 SC ANT 065690 Outdoor wall light (+ motion detector) LED (monochrome) w/o 7.5 W Anthracite
User & Safety Instructions
User & Safety Instructions 2573567 Steinel L 800 SC ANT 065690 Outdoor wall light (+ motion detector) LED (monochrome) w/o 7.5 W Anthracite
Warranty Terms
Warranty Terms 2573567 Steinel L 800 SC ANT 065690 Outdoor wall light (+ motion detector) LED (monochrome) w/o 7.5 W Anthracite
Description

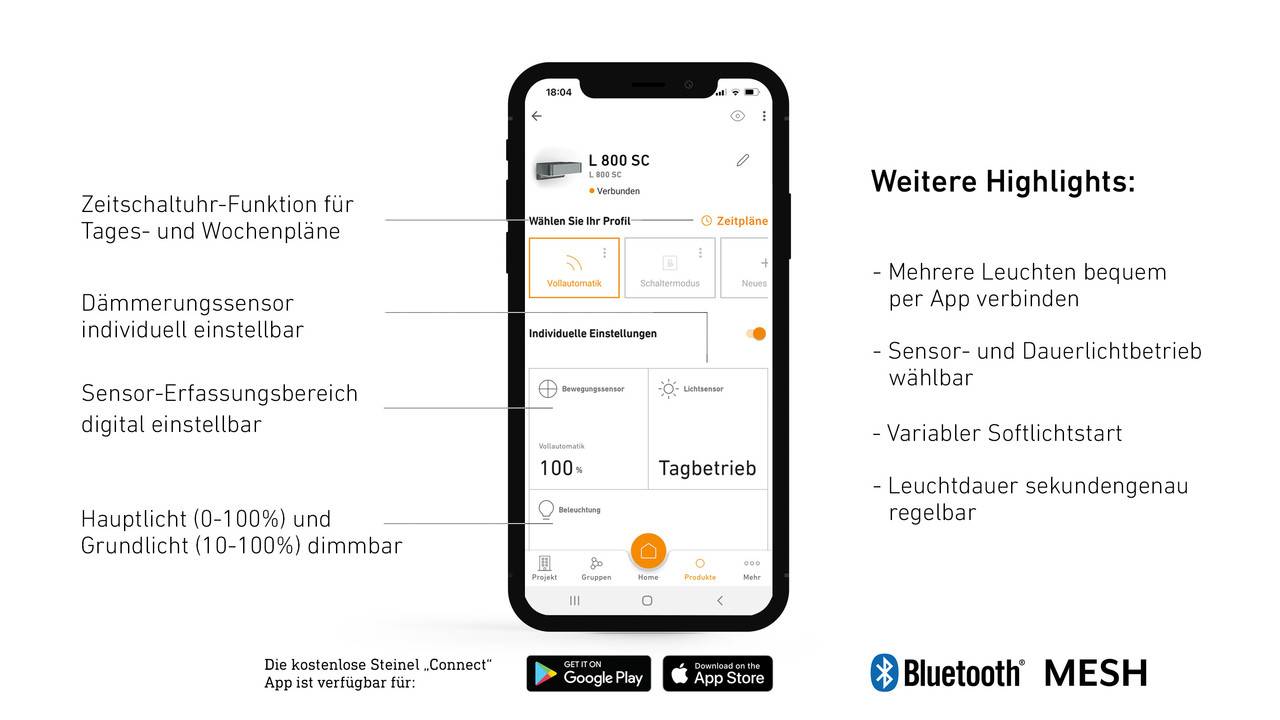

The most modern outdoor lamp in the world. With invisible IHF sensor. This sensor outdoor lamp translates intelligence into optics and technology. The high-quality design piece is carefully thought out and made with special care from durable materials. We are also concerned with the value of our products in the future when developing new luminaires. Intelligent technology is durable and durable – Heller, cooler and smarter. For the first time, we have succeeded in making the sensor of a light completely invisible. This results in an LED highlight product for effective lighting of your house wall. The Bluetooth-based Connect version can be wirelessly networked, set and controlled via the app. Groups and the naming of lights are also easily created via the app.
This text is machine translated.
This text is machine translated.
Features

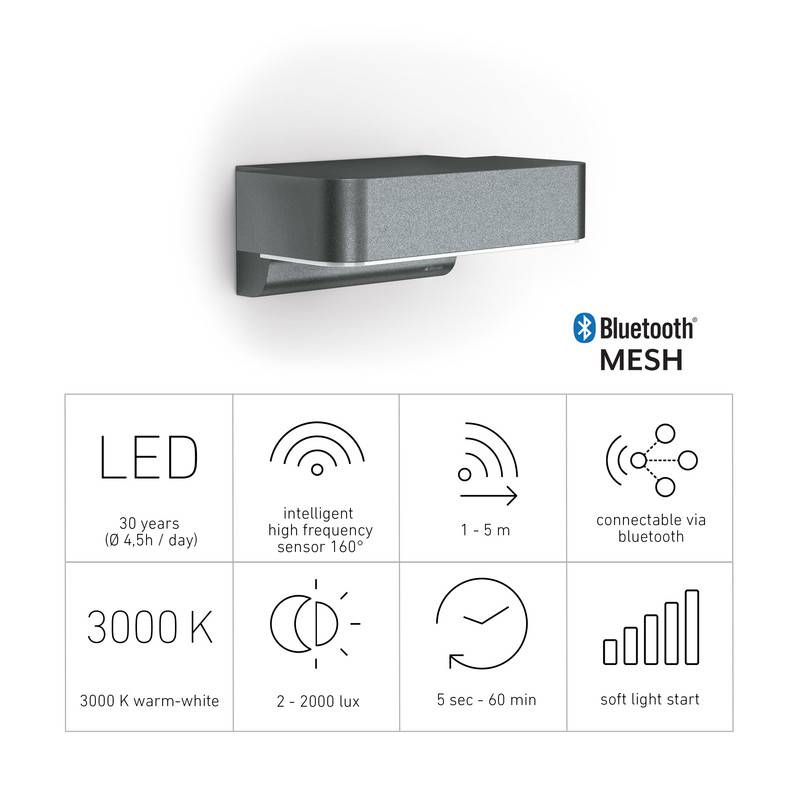

- 160° IHF motion detectorBluetoothSteady light.Night lightSoft light start
Scope of delivery
- Mounting material (3x screw, 3x wall plug, 3x spacer)
System requirements
- IOS, Android
