Steinel L 810 SC ANT 065706 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
LED outdoor lamp L 810 SC anthracite
- Power= 9.8 W Total luminous flux= 679 lm Colour temperature= 3000 K
Technical specifications
- Product type
Outdoor wall light (+ motion detector)
- Type
Rectangular
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
9.8 W
9.8 W
- Energy consumption
9.8 kWh/1000h
3000 K
679 lm
- Total luminous flux
679 lm

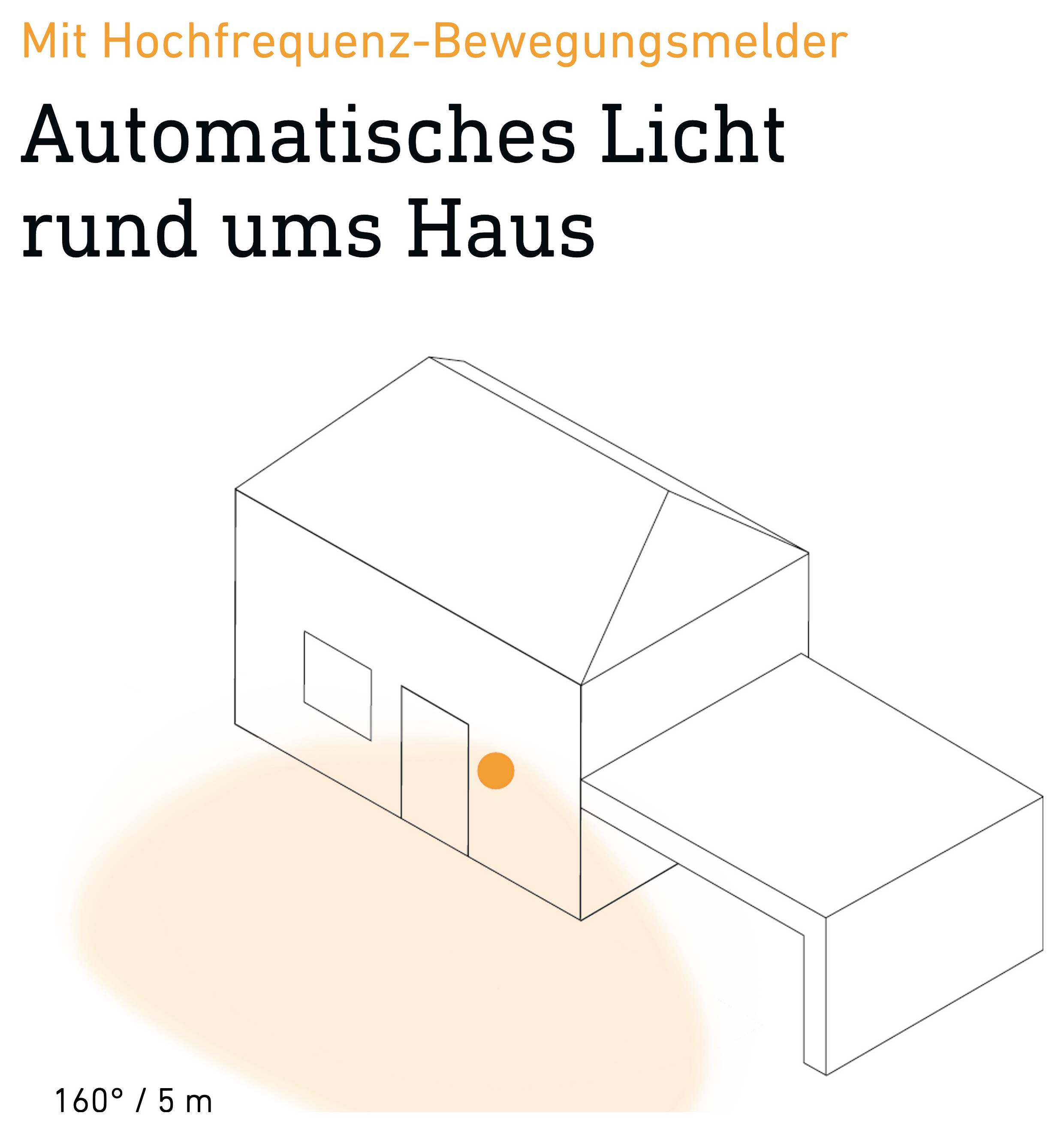

- PIR detection angle (horizontal)
160°
- Coverage max. (width)
5 m
- Adjustable on-time (min.)
5 s
- Adjustable on-time (max.)
60 min
- Light features
Incl. motion detector
Incl. dimmer
- Protection class
II
IK03
IP44
- Factory colour
Anthracite
- Material
Aluminium
Plastic
- Weight
0.92 kg

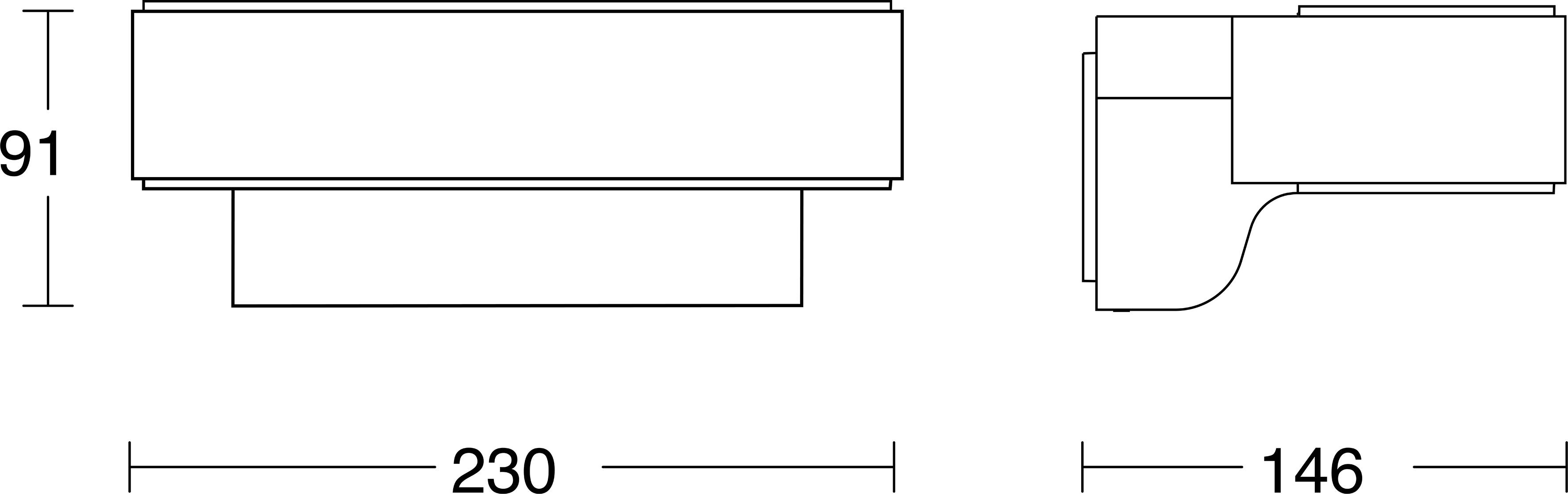

- Dim
(L x W x H) 145 x 230 x 91 mm
n.rel.
- Light bulb included
Yes
- Width
230 mm
- Height
91 mm
- Length
145 mm
- Depth
146 mm
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2573568 Steinel L 810 SC ANT 065706 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
User & Safety Instructions
User & Safety Instructions 2573568 Steinel L 810 SC ANT 065706 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
Warranty Terms
Warranty Terms 2573568 Steinel L 810 SC ANT 065706 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
Description
You don't see him. He sees them. A high-quality product is thoughtfully and carefully manufactured from durable materials. In addition, its value extends beyond the day, it is of duration and permanence. The sensor outdoor lamp L 810 SC as LED up and down light is intelligent technology translated in form and function. For the first time, we have succeeded in making the sensor of a light completely invisible – without thereby forgiving first-class design and perfect technology. For effective lighting up and down. The Bluetooth-based Connect version can be wirelessly networked, set and controlled via the app. Groups and the naming of lights are also easily created via the app.
This text is machine translated.
This text is machine translated.
Features
- 160° IHF motion detectorBluetoothSteady light.Night lightSoft light start
Scope of delivery

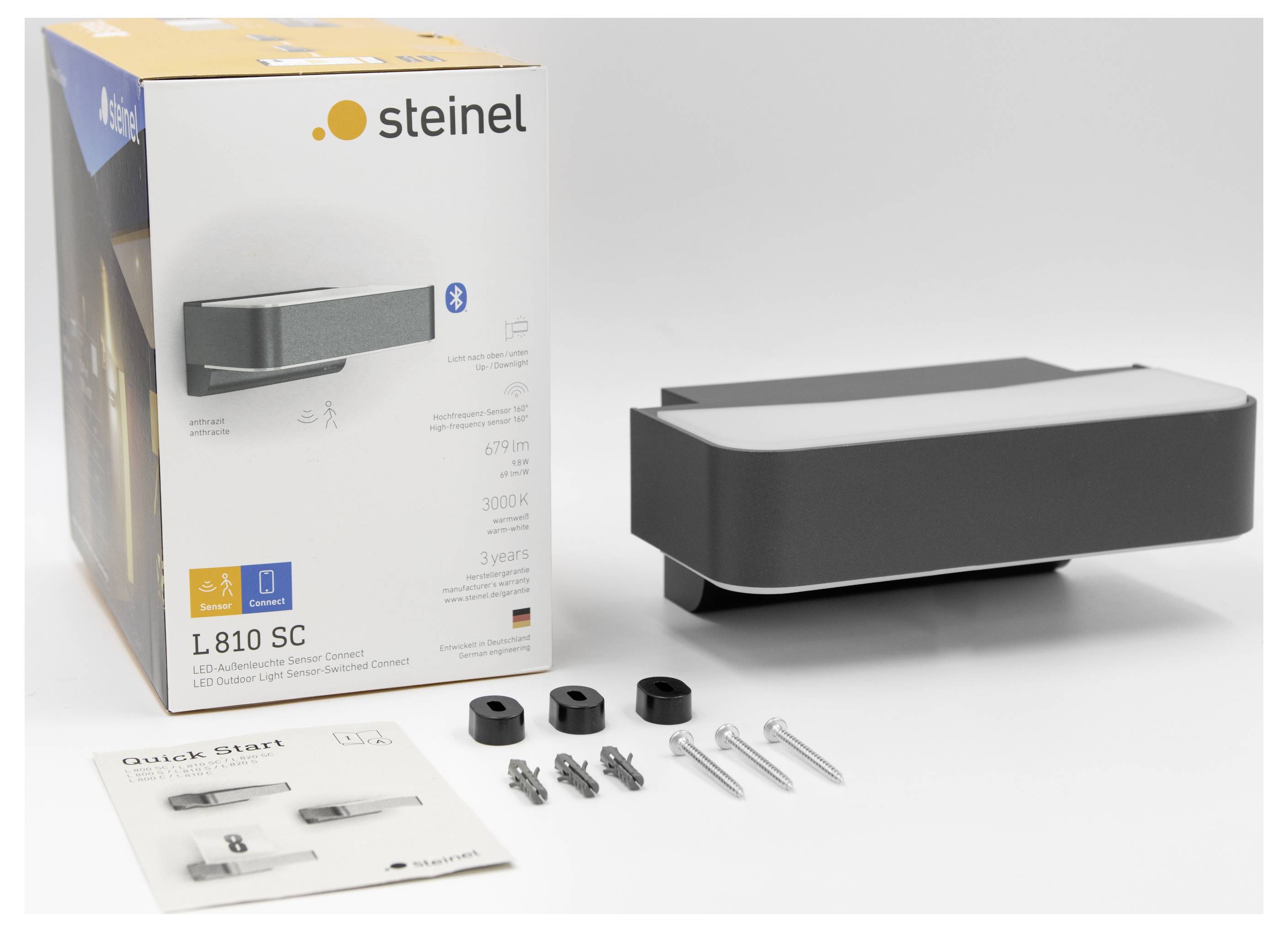

- Mounting material (3x screw, 3x wall plug, 3x spacer)
System requirements
- IOS, Android
