Steinel L 820 SC ANT 065713 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

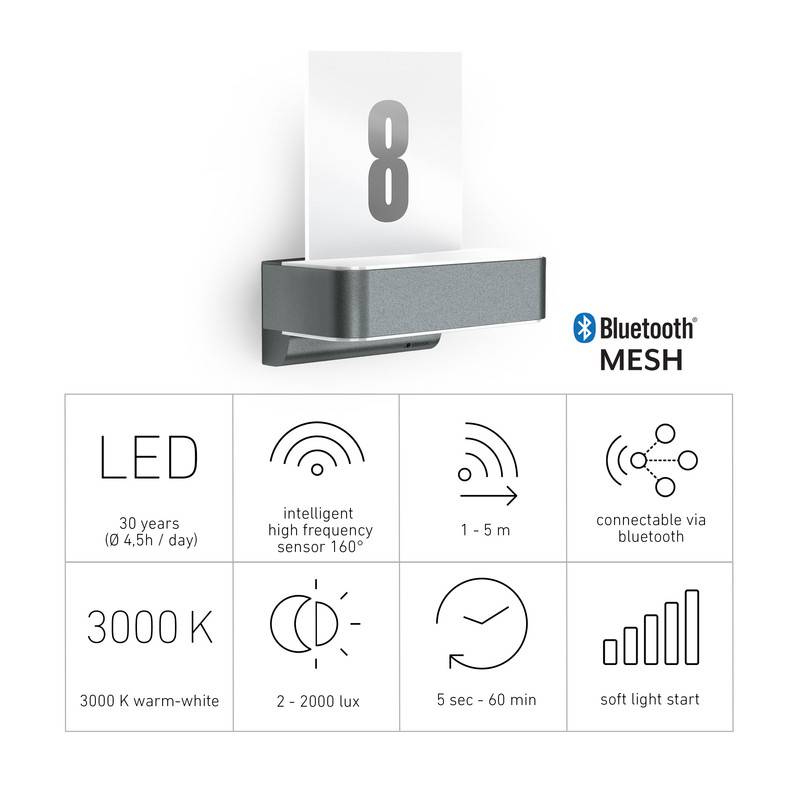

LED outdoor lamp L 820 SC anthracite
- Power= 9.8 W Total luminous flux= 679 lm Colour temperature= 3000 K White
Technical specifications
- Product type
Outdoor wall light (+ motion detector)
- Type
Rectangular
- Operating voltage
230 V
- No. of bulbs
1
- Bulb type
LED (monochrome)
w/o
- Rating per bulb
9.8 W
9.8 W
- Energy consumption
9.8 kWh/1000h
3000 K
- Colour
White
679 lm
- Total luminous flux
679 lm
- PIR detection angle (horizontal)
160°
- Coverage max. (width)
5 m
- Adjustable on-time (min.)
5 s
- Adjustable on-time (max.)
60 min
- Light features
Incl. motion detector
Incl. dimmer
- Protection class
II
IK03
IP44
- Factory colour
Anthracite
- Material
Aluminium
Plastic
- Weight
1.13 kg

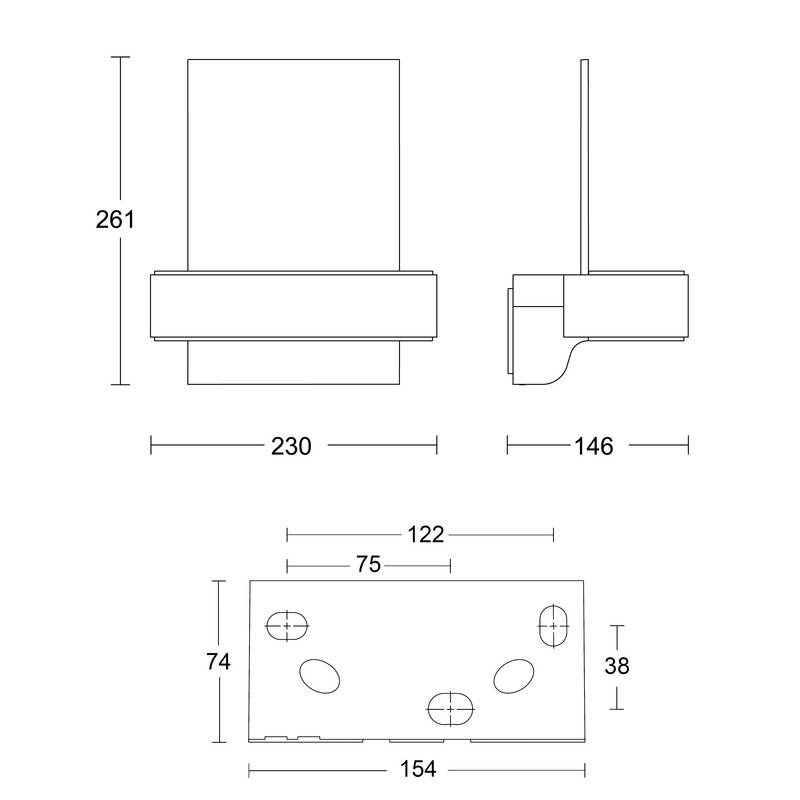

- Dim
(L x W x H) 146 x 230 x 261 mm
n.rel.
- Light bulb included
Yes
- Width
230 mm
- Height
261 mm
- Length
146 mm
- Depth
146 mm
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2573569 Steinel L 820 SC ANT 065713 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
User & Safety Instructions
User & Safety Instructions 2573569 Steinel L 820 SC ANT 065713 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
Warranty Terms
Warranty Terms 2573569 Steinel L 820 SC ANT 065713 Outdoor wall light (+ motion detector) LED (monochrome) w/o 9.8 W Anthracite
Description

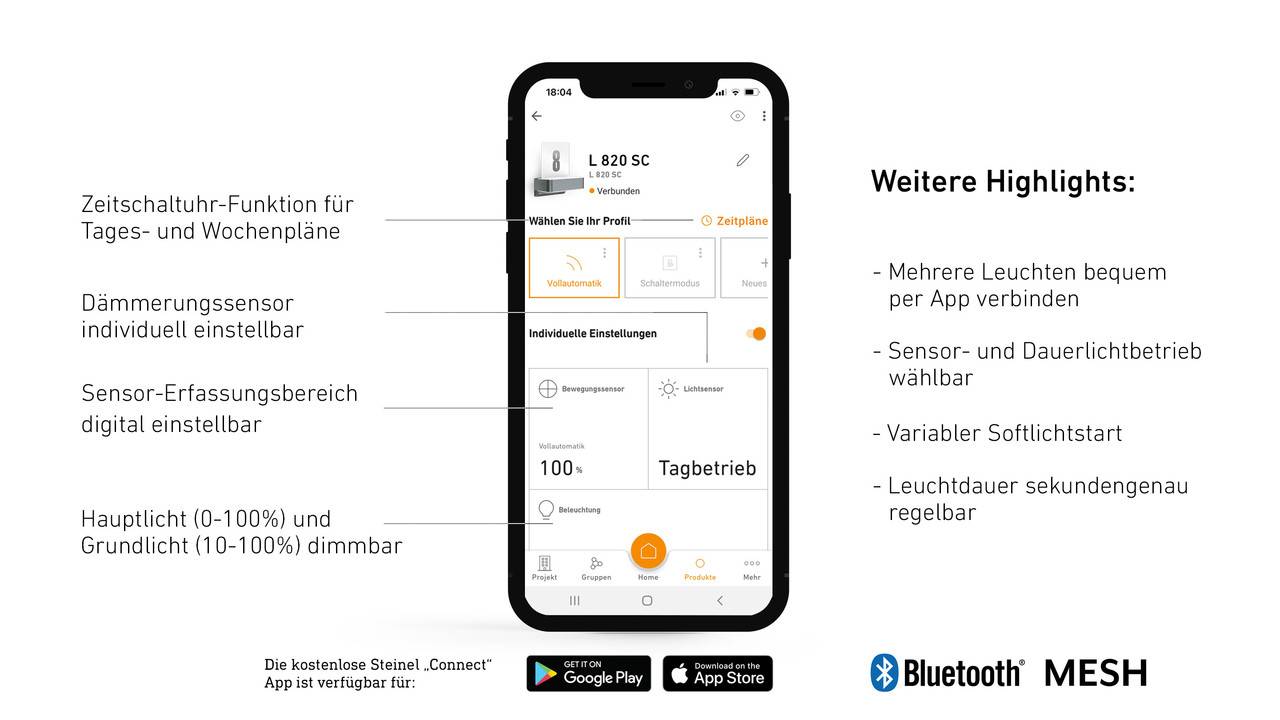

Outdoor lights. Here comes the new house number. We have thought, gritty, tried, rejected and tested. For the smartest house number lamp we've ever built. For the first time, we have succeeded in integrating the sensor completely invisibly into a light source. The sensor outdoor lamp L 820 S as LED up and down light translates intelligence in optics and technology and stages your house number like no other. We were also concerned with the value of the product in the future. Intelligent technology is durable and durable – Heller, cooler and smarter. The Bluetooth-based Connect version can be wirelessly networked, set and controlled via the app. Groups and the naming of lights are also easily created via the app.
This text is machine translated.
This text is machine translated.
Features
- 160° IHF motion detectorHouse numberBluetoothSteady light.Night lightSoft light start
Scope of delivery
- Mounting material (3x screw, 3x wall plug, 3x spacer)House number sheet (numbers 0-9 multiple times, letters a-d single)
System requirements
- IOS, Android
