Name: Steinel L 835 SC 055516 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.1 W Anthracite
Brand: Steinel
SKU: 1902166

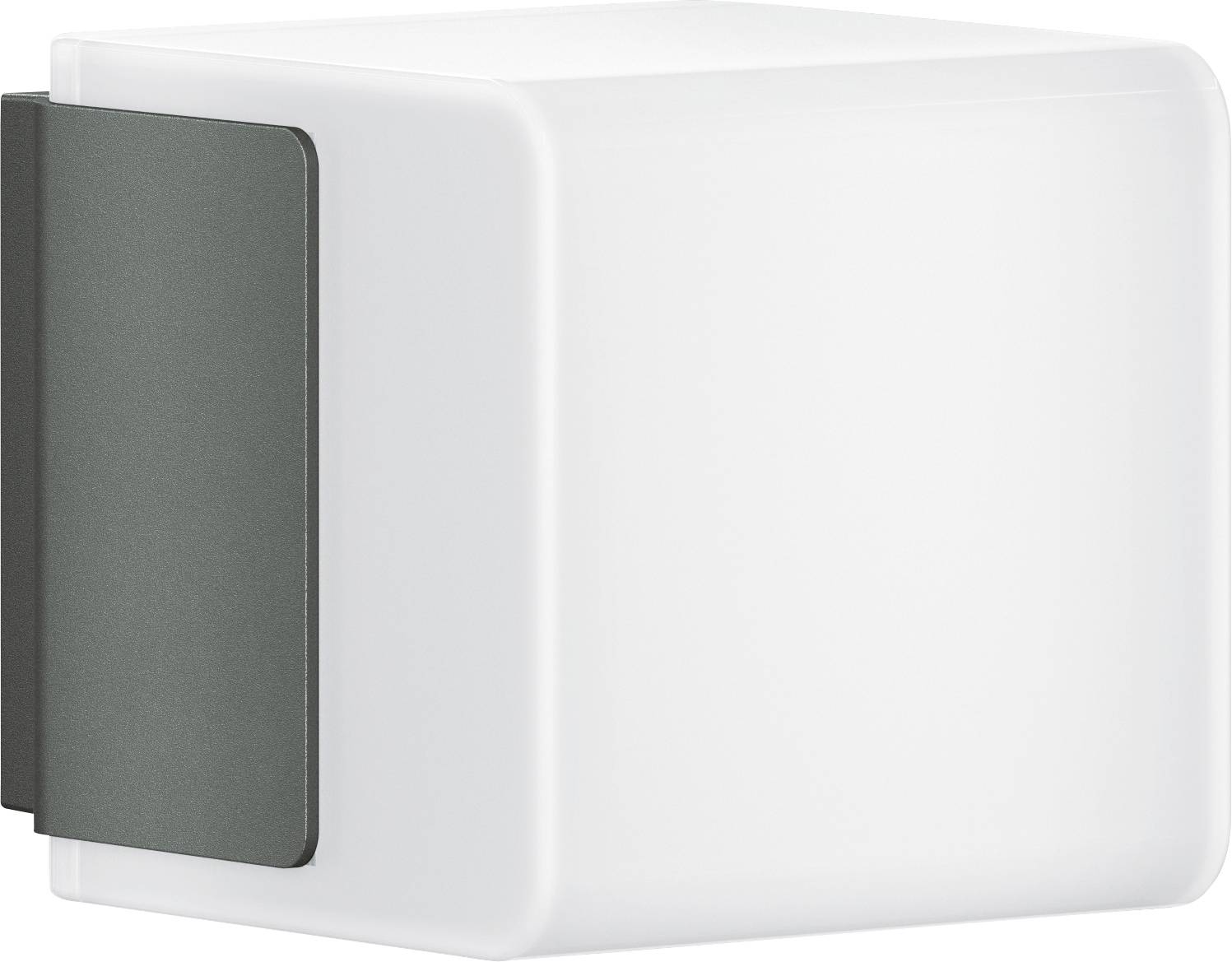

White rectangular device with a dark gray side panel and rounded translucent edges, shown in close-up on a plain background.

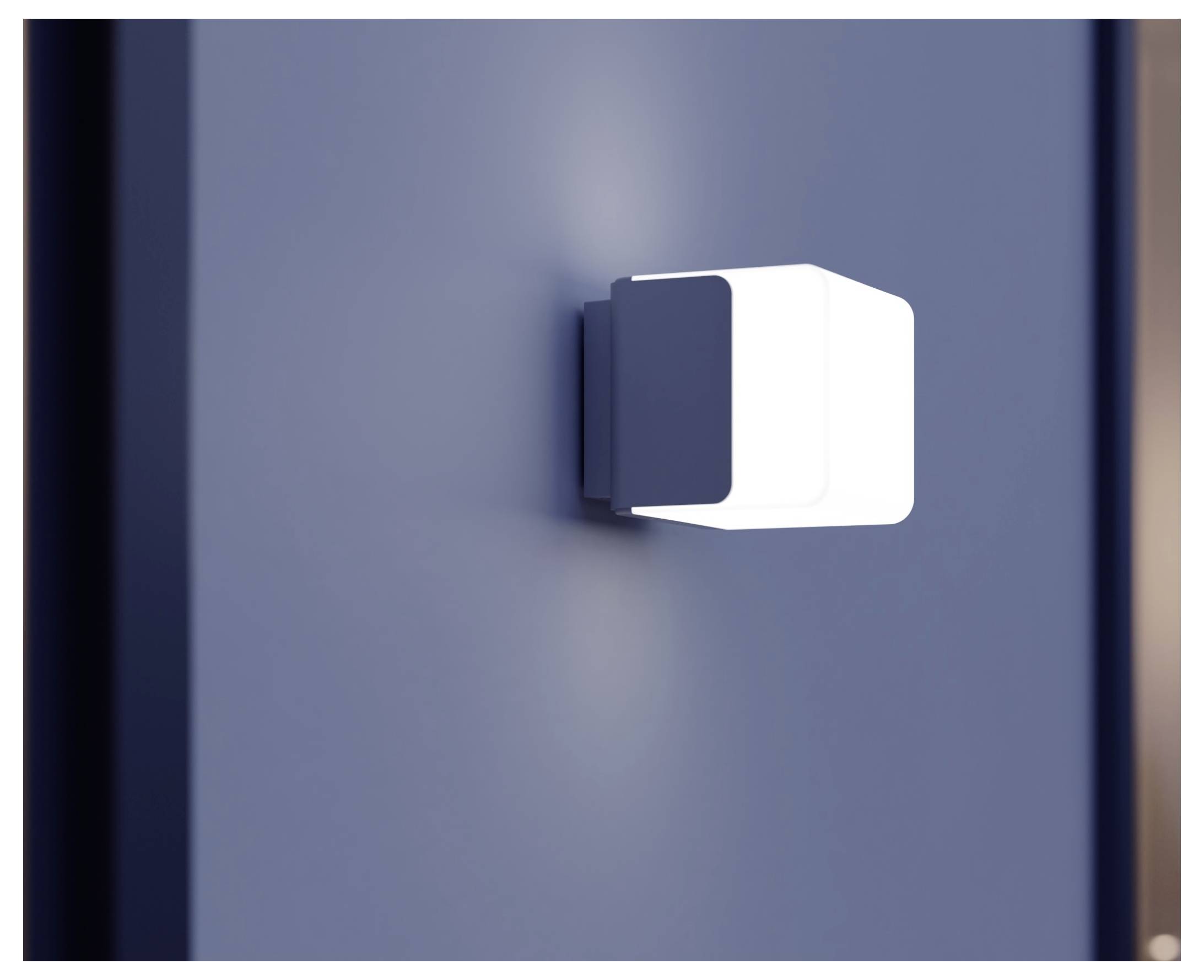

Close-up of a modern wall-mounted light fixture with a glowing white cube shade on a blue wall.

Steinel L 835 with Bluetooth: Home lighting is networked and controlled via the Steinel Connect App; Bluetooth Mesh connects the luminaires.

Advertising collage with exterior and interior lighting on the house; Text: 'For different lighting effects all around the house' and 'One series. Four luminaires. Countless possibilities.'

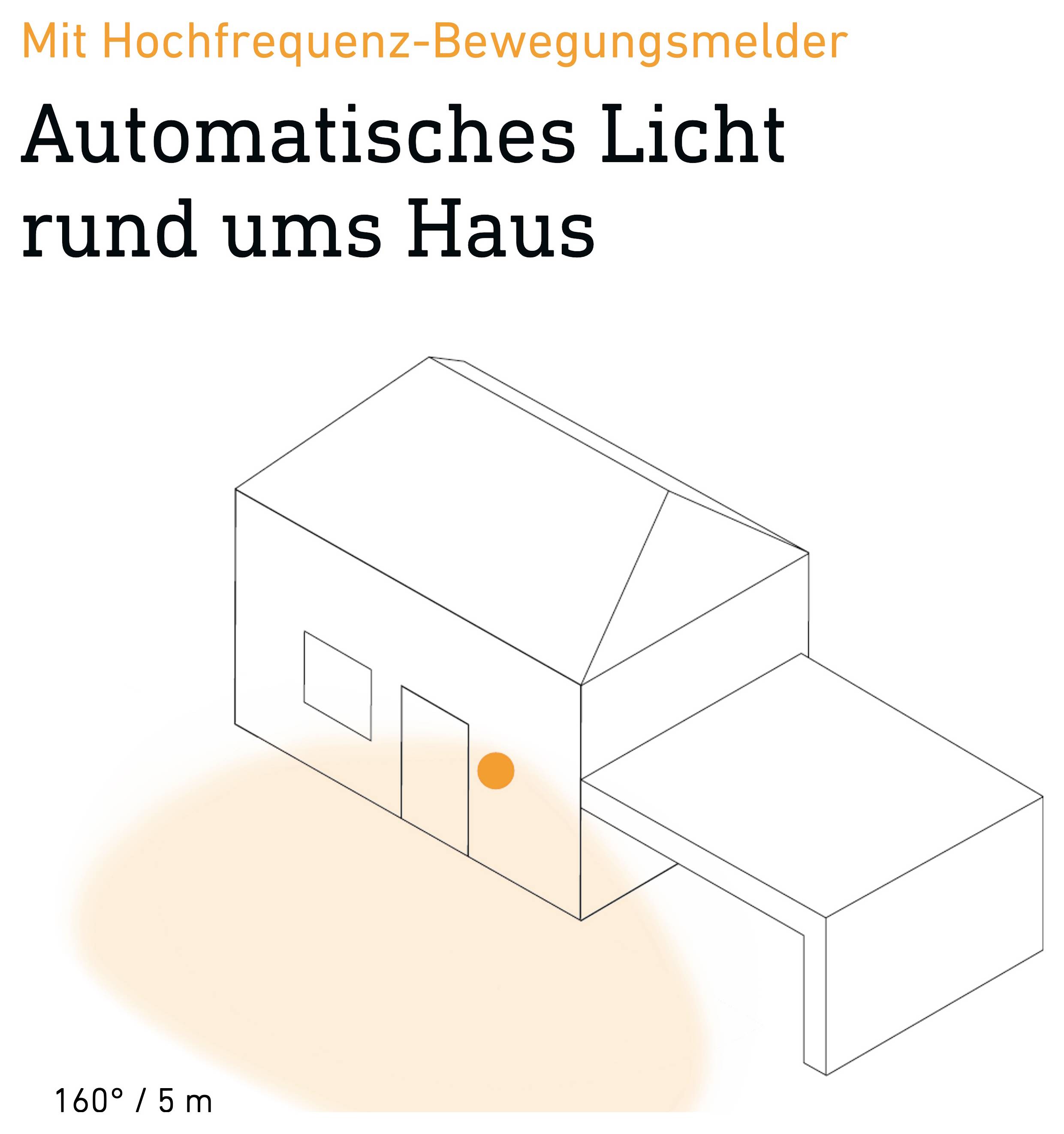

Graphic of a house with motion detector: 'Automatic lighting around the house'. Orange sensor surface shows 160°/5 m detection range at the entrance and extension.

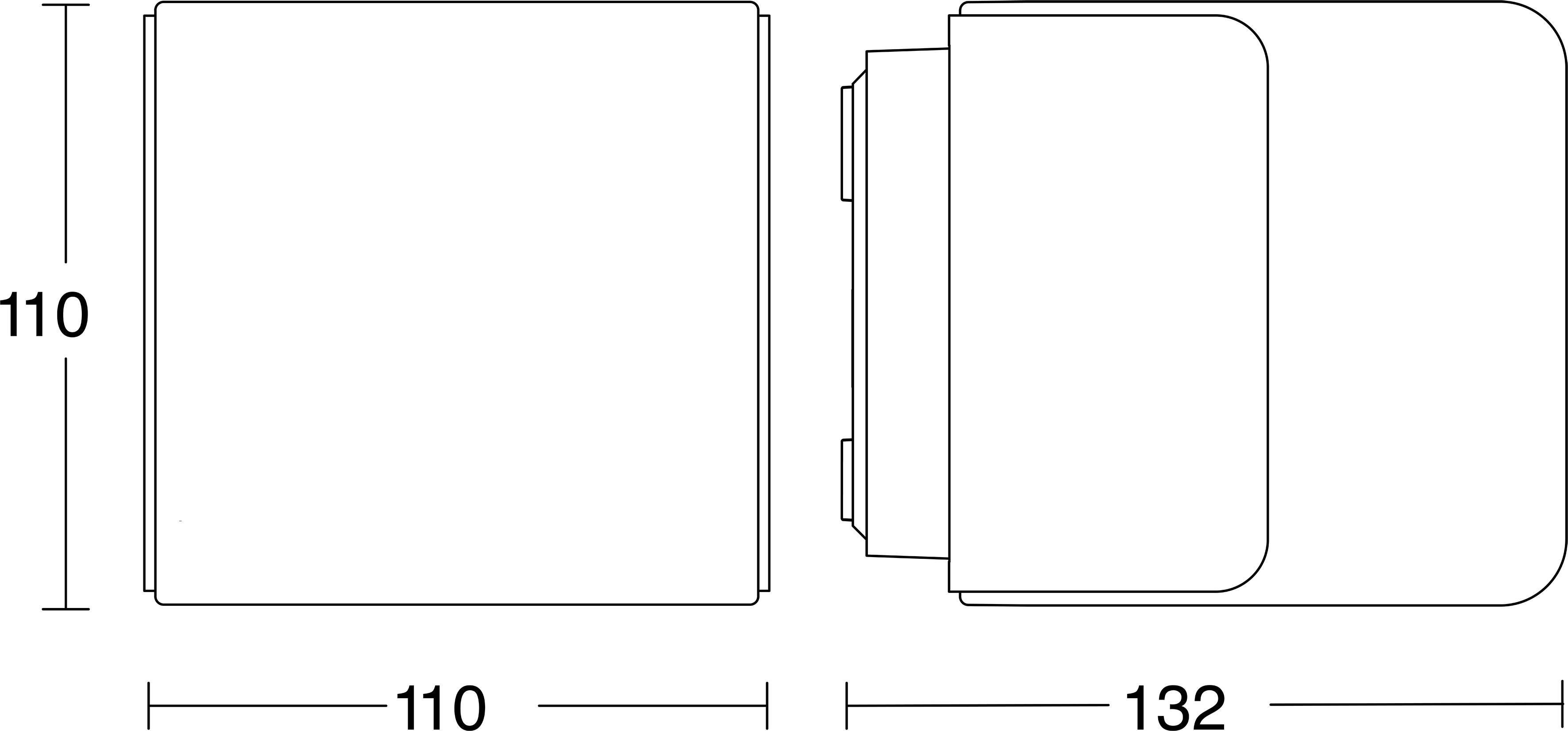

Technical drawing of a square wall-mounted device shown front and side views, with dimensions labeled 110 wide and 132 deep.<br>

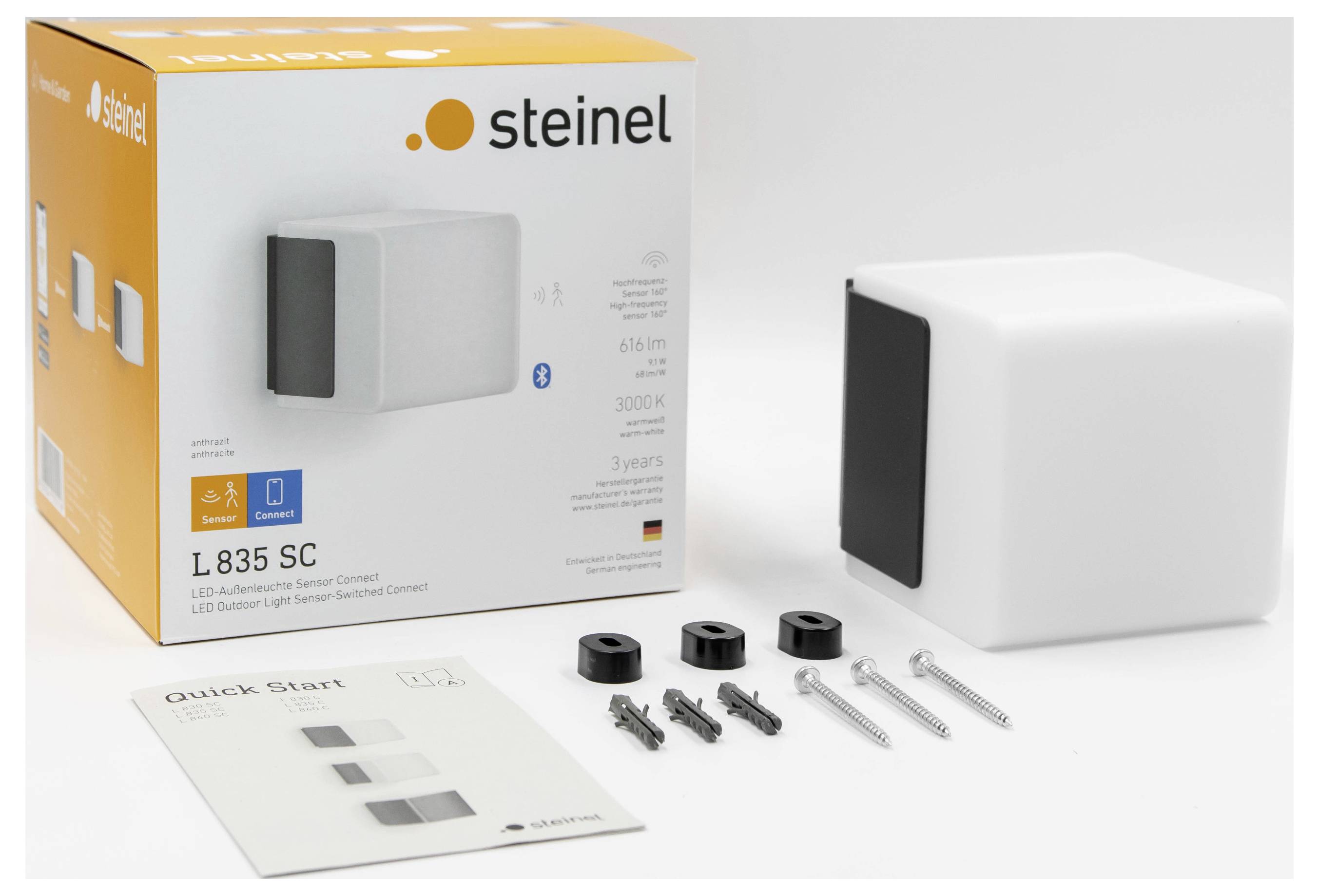

Steinel L835 SC LED outdoor wall light kit with product box, white lamp, quick-start guide, and mounting hardware.

Four-field infographic for STEINEL: certified quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/8

Datasheet (PDF)

Unavailable

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

OUTER LAMP L 835 SC ANT

Power= 9.1 W Total luminous flux= 616 lm Colour temperature= 3000 K Warm white

Technical specifications

Mounting height: 1.80 - 2.50 m.
Sensor: IHF (intelligent high frequency technology)
Networking via Bluetooth
Color rendering index CRI 80 - 89

Product type: LED outdoor wall light (+ motion detector)

Type: Square

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

: Built-in LED

Rating per bulb: 9.1 W

: 9.1 W

Energy consumption: 9.1 kWh/1000h

: 3000 K

Colour: Warm white

: 616 lm

Total luminous flux: 616 lm

PIR detection angle (horizontal): 160°

Coverage max. (width): 5 m

Adjustable on-time (min.): 5 s

Adjustable on-time (max.): 15 min

Light features: App-enabled
Incl. motion detector
Incl. dimmer
Incl. nightlight
Continuous light mode

Protection class: II

: IP44

Factory colour: Anthracite

Material: Plastic

Weight: 0.428 kg

Dim: (L x W x H) 11 x 13.2 x 11 cm

: n.rel.

Light bulb included: Yes

Width: 13.2 cm

Height: 11 cm

Length: 11 cm

Depth: 11 cm

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1902166 Steinel L 835 SC 055516 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.1 W Anthracite

User & Safety Instructions

User & Safety Instructions 1902166 Steinel L 835 SC 055516 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.1 W Anthracite

Conformity certificate

Conformity certificate 1902166 Steinel L 835 SC 055516 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.1 W Anthracite

Warranty Terms

Warranty Terms 1902166 Steinel L 835 SC 055516 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.1 W Anthracite

Description

Digital Networked. Intelligent. The Cubo wall lamps adorn any facade. They are real jewels. And a strong piece of technology. The digital outdoor lighting not only fulfills the highest demands on design. They also impress with their intrinsic values. For example, by the invisible 160° iHFsensor, which is trimmed with 5 m range only on human motion patterns. All other movements – such as cats or leaves in the wind – are ignored professionally. Cubo wall lights radiate warm white light (3000 K) and are available in three design variants with different light images. With comfortable Night light function (10 to 50%), elegant Soft light start and 4 hours continuous light.

This text is machine translated.
