Name: Steinel L 930 S ANT 067199 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.3 W Anthracite
Brand: Steinel
SKU: 2624022

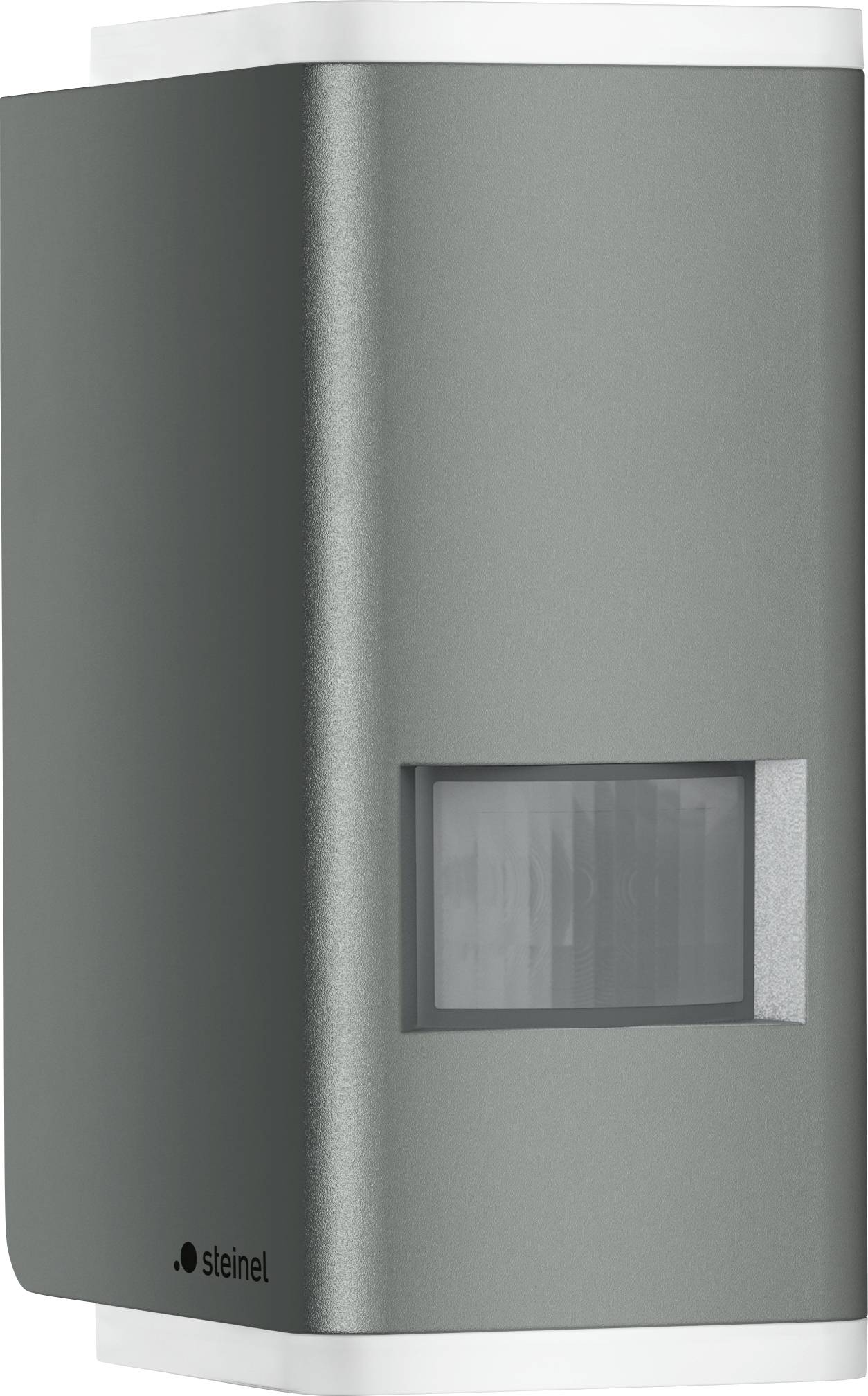

Gray wall-mounted motion sensor with a small rectangular lens window, shown in close-up product view.<br>

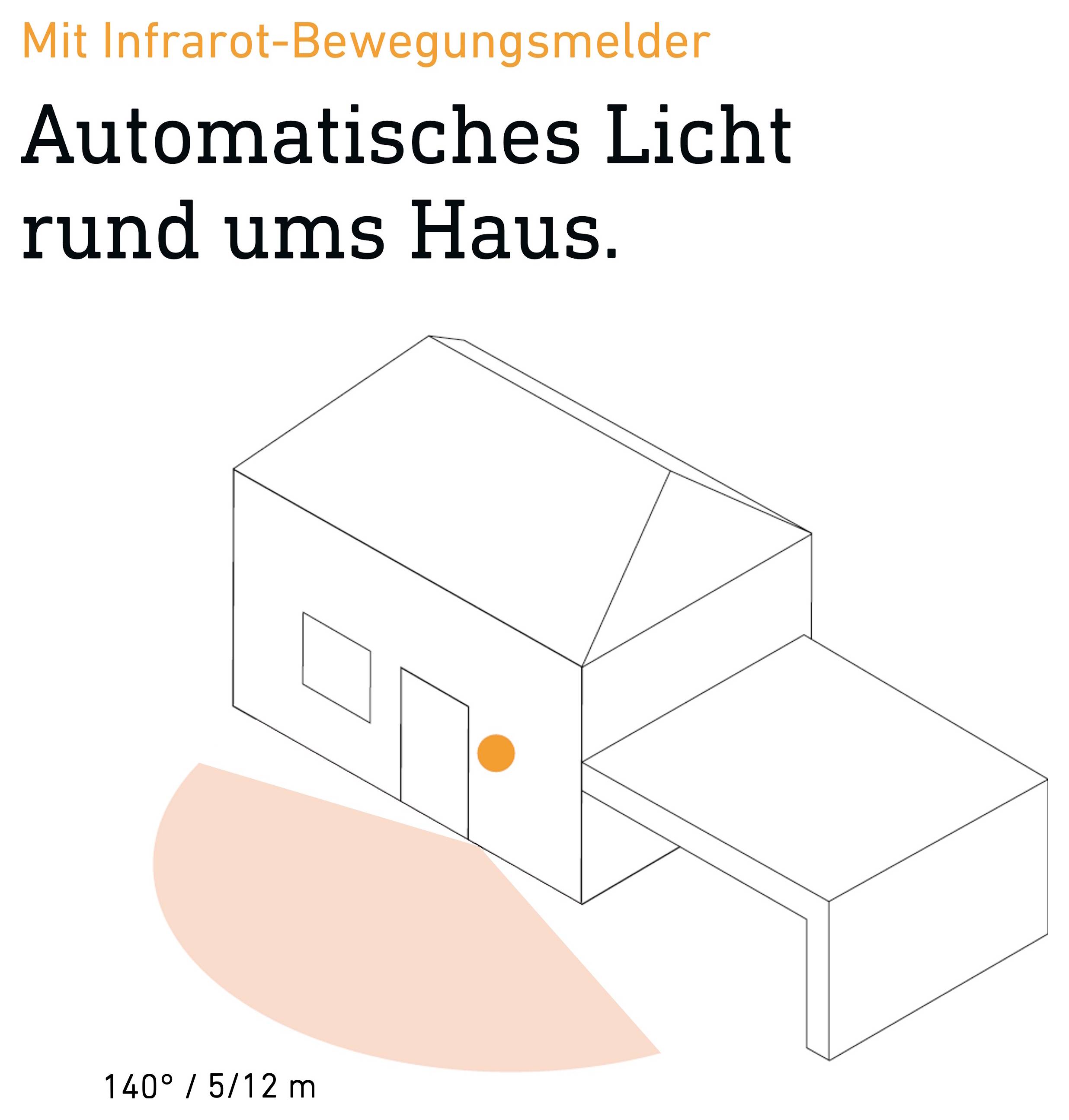

Infographic: 'Automatic lighting around the house' showing an infrared motion sensor with a detection range of 140° and 5/12 m at the house.

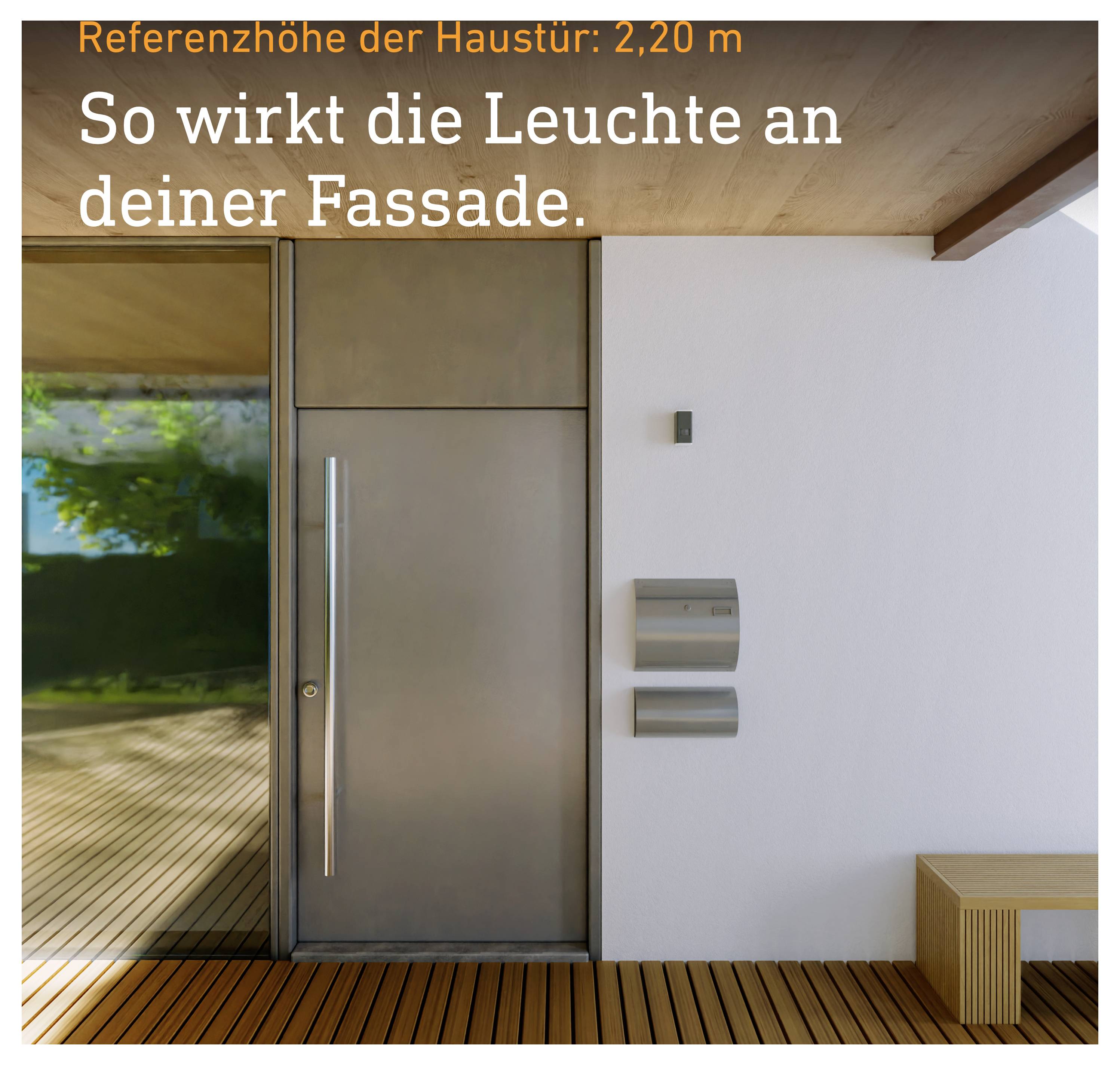

Visualisation of a façade light next to the front door; Text: 'Reference height of the front door: 2.20 m' and 'This is how the light will look on your façade.'

Four-field diagram on STEINEL quality: tested quality, 3-year manufacturer's warranty, developed in Germany and personal customer service.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

STEINEL LED outdoor lamp L 930 S, up/down light with motion detector, anthracite

Power= 9.3 W Total luminous flux= 457 lm Colour temperature= 3000 K Warm white

Technical specifications

Installation height: Max. 2.50 m.

Product type: LED outdoor wall light (+ motion detector)

Type: Rectangular

Operating voltage: 230 V

No. of bulbs: 1

Bulb type: LED (monochrome)

: Built-in LED

Rating per bulb: 9.3 W

: 9.3 W

Energy consumption: 9.3 kWh/1000h

: 3000 K

Colour: Warm white

Total luminous flux: 457 lm

PIR detection angle (horizontal): 140°

Coverage max. (width): 12 m

Adjustable on-time (min.): 2 min

Adjustable on-time (max.): 15 min

Light features: Incl. motion detector
Incl. dimmer
Incl. sensor
Top and bottom light emission

Protection class: I

: IP44

Factory colour: Anthracite

Material: Aluminium
Plastic

Weight: 0.91 kg

Dim: (L x W x H) 92 x 63 x 137 mm

: n.rel.

Light bulb included: Yes

Width: 63 mm

Height: 137 mm

Length: 92 mm

Depth: 92 mm

UKCA: not relevant

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2624022 Steinel L 930 S ANT 067199 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.3 W Anthracite

User & Safety Instructions

User & Safety Instructions 2624022 Steinel L 930 S ANT 067199 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.3 W Anthracite

Warranty Terms

Warranty Terms 2624022 Steinel L 930 S ANT 067199 LED outdoor wall light (+ motion detector) LED (monochrome) Built-in LED 9.3 W Anthracite

Description

Excellent light accents.As an elegant up/down light, the sensor outdoor lamp L 930 S enables an effective accent lighting, which spectacularly sets the house walls in scene and optically enhances entire buildings with warm white light (3000 K). For synchronous switching around the house several lights can be connected by cable. The 9.3 W sensor lamp made of noble aluminum is equipped with a 140° infrared sensor with 12 m range and offers a delay time of 2 or 15 minutes. An effect light as well as a continuous light of up to 4 hours are optional.

This text is machine translated.
