Stiebel Eltron 205720 Heat mat FTM 200/3 Set Plus 600 W 3 m²
EAN:
Part number:
Item no:
Technical specifications
- Width 300 mm
- Design: Heating cable
- Thickness: 3 mm
- Length: 10000 mm
- Self-adhesive: Yes
- With room thermostat: Yes
- Power 200 W/m²
- Connection voltage 230 V
- Connected load 600 W
- With carrier mat: Yes
- Fixture of heat conductor: Sewed
- Thermal output load 10 W/m
- Resistance 85 ohms
- Number of PTC thermistors: 1
- Length of PTC thermistor: 4000 mm
- Suitable for humid rooms: Yes
- Suitable as open space heater: No.
- Suitable as a roof panel heater: No.
- Surface area: 3 m²
- With controller: Yes
- With soil temperature sensor: Yes
- Product type
Heat mat
- Operating voltage
230 V
- Suitable for
Tiles
- Heating area
3 m²
- Heating power (W / BTU/h)
600 W
- Heating power
600 W
- W/m
10 W
- Lead length
4000 mm
- Compatible with
Underfloor heating
- Width
300 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3552903 Stiebel Eltron 205720 Heat mat FTM 200/3 Set Plus 600 W 3 m²
Description
Application

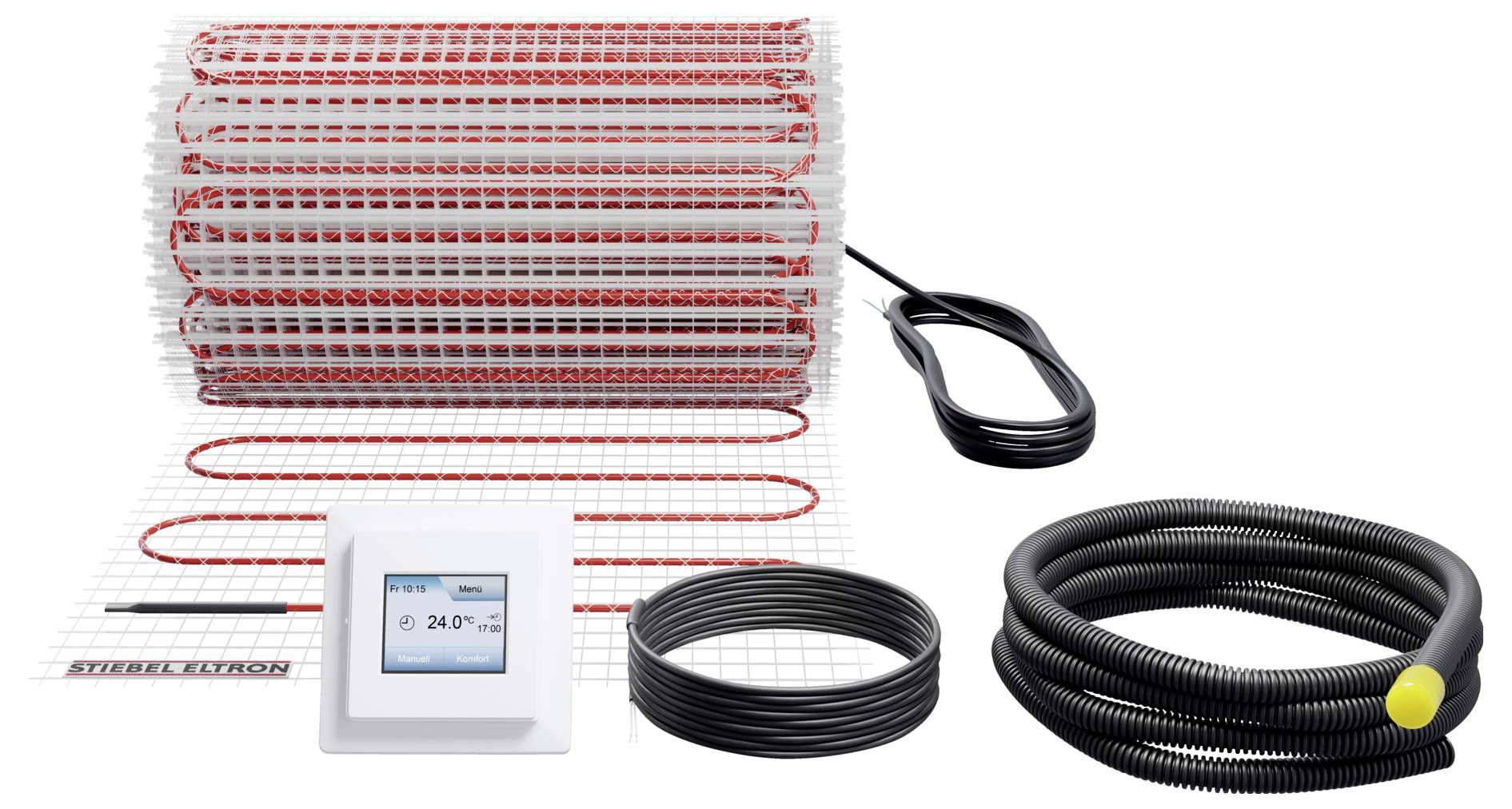

The set consists of a thin-bed heating mat especially for thicker ceramic floor coverings, the appropriate regulator and installation material. This thin-bed heating mat is used in the new building and in the renovation for floor-heating. It is installed directly below the floor covering and ensures a pleasant warm floor surface, regardless of the existing heating system.
The heating mat is suitable as additional or additional heating. Comfort features
Due to the low overall height, the heating mat can be directly installed in the tile adhesive under ceramic coverings. The smaller installation width is particularly good for small, angled ground plans In combination with a water-guided underfloor heating, the comfort of a warm floor can be made possible even outside the heating season.
The heat conductor is completely sewn on the self-adhesive carrier mat and can therefore be laid easily and quickly on the floor. Installation
The mat may be laid in the bathroom when combined with a residual current protective device.
By cutting the carrier fabric it can be adjusted easily to the individual situation. Suitable only for laying under tiles.
This text is machine translated.
