Stiebel Eltron 205740 Heat mat electronical FTD 140/5 Set Plus 700 W 5 m²
EAN:
Part number:
Item no:
Technical specifications
- Width 500 mm
- Design: Heating cable
- Thickness: 3 mm
- Length: 10000 mm
- Self-adhesive: No.
- With room thermostat: Yes
- Power 140 W/m²
- Connection voltage 230 V
- Connected load 700 W
- With carrier mat: Yes
- Heat Conductor Attachment: Glued
- Thermal output load 7 W/m
- Resistance 76 ohms
- Number of PTC thermistors: 1
- Length of PTC thermistor: 3000 mm
- Suitable for humid rooms: Yes
- Suitable as open space heater: No.
- Suitable as a roof panel heater: No.
- Surface area: 5 m²
- With controller: Yes
- With soil temperature sensor: Yes
- Product type
Heat mat
- Operation type
electronical
- Operating voltage
230 V
- Suitable for
Laminate
- Heating area
5 m²
- Heating power (W / BTU/h)
700 W
- Heating power
700 W
- W/m
7 W
- Lead length
3000 mm
- Compatible with
Underfloor heating
- Width
500 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548874 Stiebel Eltron 205740 Heat mat electronical FTD 140/5 Set Plus 700 W 5 m²
Description
Application

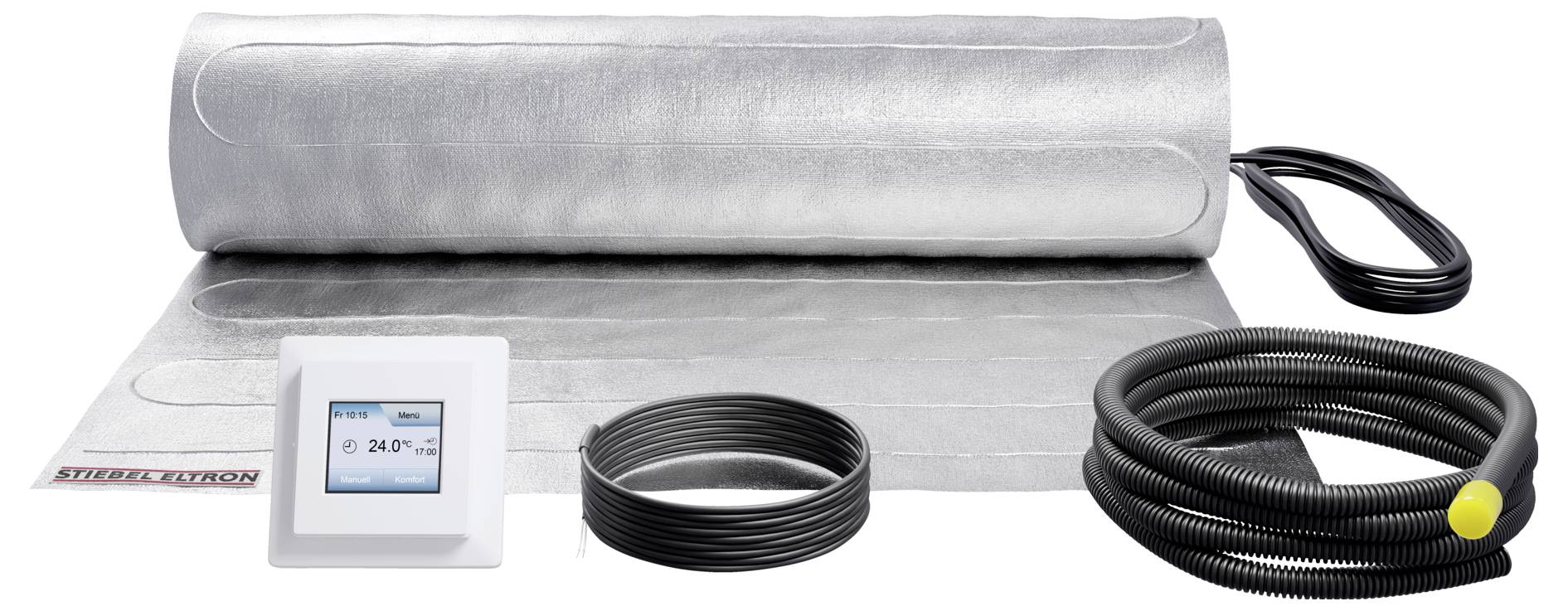

The set consists of a heating mat, the relevant controller and installation material. Electric aluminum thin-bed heating mat for finished floor and laminate flooring in new construction and during the renovation. The heating mats are simply installed by floating laying on the floor and provide quickly for a pleasant warm floor surface, regardless of the existing heating system.
The heating mat is suitable as additional or additional heating. Comfort features
Ideal and constant heat distribution thanks to special foil surface. Because of the low height, the heating mat can be easily retrofitted at any time. The heat conductors covered with aluminum foil offer an excellent heat conductivity in the floor covering. Installation
Simple floating laying directly on the screed. Parquets or laminate are laid directly on the heating mat. Only suitable for finished floor without built-in impact sound.
