Stiebel Eltron 205779 Heat mat FTM 160/2.5 Set Plus 400 W 2.5 m²
EAN:
Part number:
Item no:
Technical specifications
- Width 500 mm
- Design: Heating cable
- Thickness: 3 mm
- Length: 5000 mm
- Self-adhesive: Yes
- With room thermostat: Yes
- Power 160 W/m²
- Connection voltage 230 V
- Connected load 400 W
- With carrier mat: Yes
- Fixture of heat conductor: Sewed
- Thermal output load 14 W/m
- Resistance 133 ohms
- Number of PTC thermistors: 1
- Length of PTC thermistor: 4000 mm
- Suitable for humid rooms: Yes
- Suitable as open space heater: No.
- Suitable as a roof panel heater: No.
- Surface area: 2.5 m²
- With controller: Yes
- With soil temperature sensor: Yes
- Product type
Heat mat
- Operating voltage
230 V
- Suitable for
Tiles
- Heating area
2.5 m²
- Heating power (W / BTU/h)
400 W
- Heating power
400 W
- W/m
14 W
- Lead length
4000 mm
- Compatible with
Underfloor heating control
- Width
500 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548878 Stiebel Eltron 205779 Heat mat FTM 160/2.5 Set Plus 400 W 2.5 m²
Description
Application

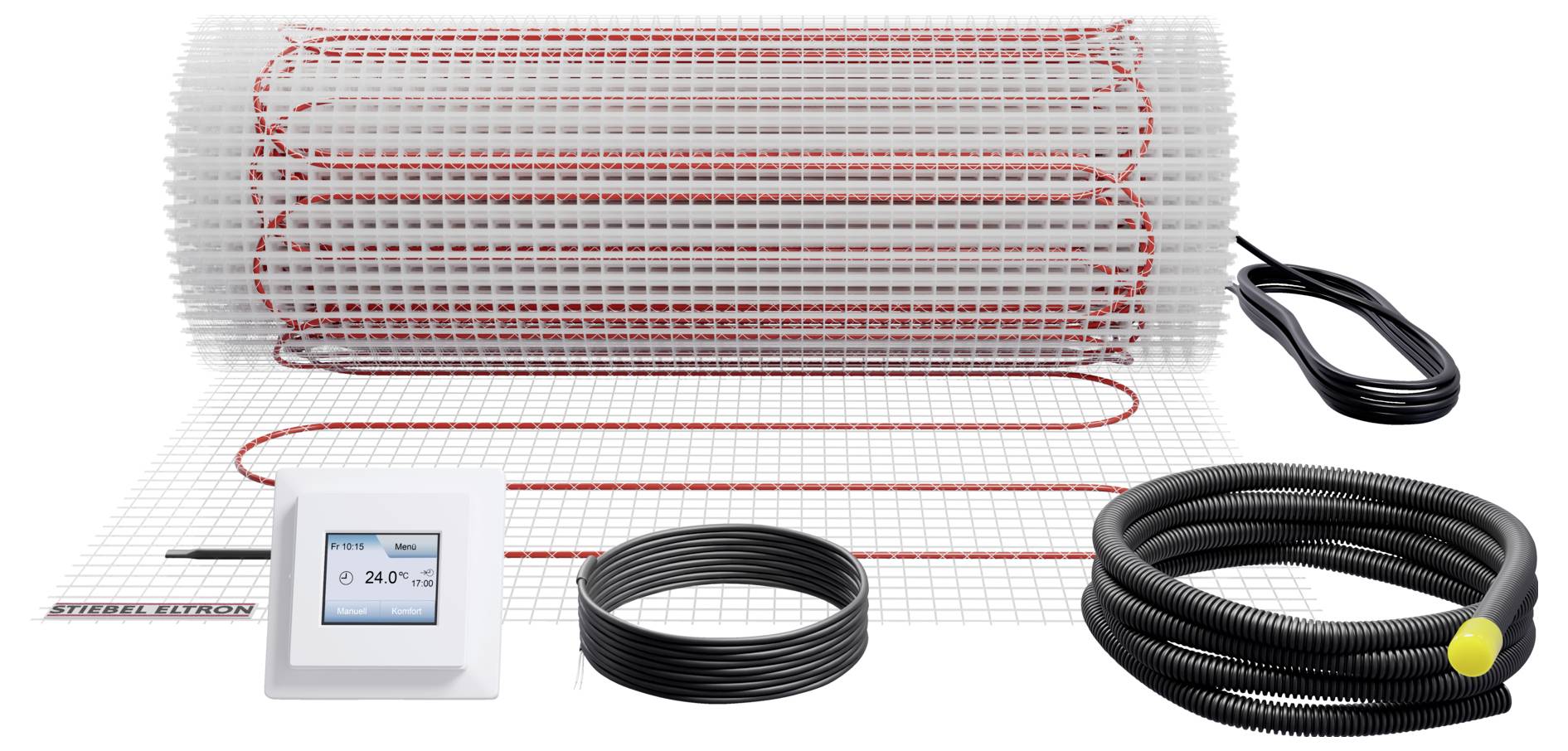

The set consists of a thin-bed heating mat, a controller and the necessary installation material. These thin-bed heating mats are used in the new building and in the renovation for floor heating. They are installed directly below the flooring and quickly provide for a pleasantly warm floor surface, regardless of the existing heating system.
The heating mat is suitable as additional or additional heating. Comfort features
Due to the low overall height, the heating mat can be directly installed in the tile adhesive under ceramic coverings. The installation takes place under carpets and other floor coverings in a compensating layer. In combination with a water-guided floor heating, the comfort of a warm floor is thus enabled even outside the heating season. The heat conductor is completely sewn on the self-adhesive carrier mat and therefore can be laid easily and quickly on the floor. Installation
The mat may be laid in the bathroom when combined with a residual current protective device. By cutting the backing fabric, the mats can be easily adjusted to the individual space conditions.
