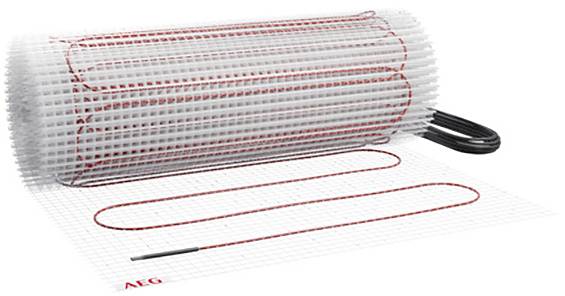

Stiebel Eltron 205789 Heat mat TBS TB 160/1 160 W 1 m²
EAN:
Part number:
Item no:
Technical specifications
- Width 500 mm
- Design: Heating cable
- Thickness: 3 mm
- Length: 2000 mm
- Self-adhesive: Yes
- With room thermostat: No.
- Power 160 W/m²
- Connection voltage 230 V
- Connected load 160 W
- With carrier mat: Yes
- Fixture of heat conductor: Sewed
- Thermal output load 14 W/m
- Resistance 326 ohms
- Number of PTC thermistors: 1
- Length of PTC thermistor: 4000 mm
- Suitable for humid rooms: Yes
- Suitable as open space heater: No.
- Suitable as a roof panel heater: No.
- Surface area: 1 m²
- With controller: No.
- With ground temperature sensor: No.
- Product type
Heat mat
- Operating voltage
230 V
- Suitable for
Tiles
- Heating area
1 m²
- Heating power (W / BTU/h)
160 W
- Heating power
160 W
- W/m
14 W
- Lead length
4000 mm
- Compatible with
Underfloor heating
- Mounting height
3 mm
- Width
500 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3550362 Stiebel Eltron 205789 Heat mat TBS TB 160/1 160 W 1 m²
Description
These thin-bed heating mats are used in the new building and in the renovation for floor heating. They are installed directly below the flooring and quickly provide for a pleasantly warm floor surface, regardless of the existing heating system. The heating mat is suitable as additional or additional heating. COMFORT FEATURES: Due to the low height the heating mat can be installed directly in the tile adhesive under ceramic coverings. The installation takes place under carpets and other floor coverings in a compensating layer. In combination with a water-guided floor heating, the comfort of a warm floor is thus enabled even outside the heating season. The heat conductor is completely sewed up on the self-adhesive support mat. It can be laid on the floor easily and quickly.
