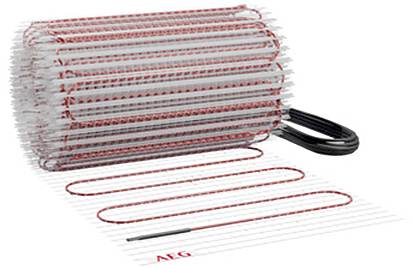

Stiebel Eltron 205811 Heat mat TBS TC 200/2 400 W 2 m²
EAN:
Part number:
Item no:
Technical specifications
- Width 300 mm
- Design: Heating cable
- Thickness: 3 mm
- Length: 6700 mm
- Self-adhesive: Yes
- With room thermostat: No.
- Power 200 W/m²
- Connection voltage 230 V
- Connected load 400 W
- With carrier mat: Yes
- Fixture of heat conductor: Sewed
- Thermal output load 10 W/m
- Resistance 128 ohms
- Number of PTC thermistors: 1
- Length of PTC thermistor: 4000 mm
- Suitable for humid rooms: Yes
- Suitable as open space heater: No.
- Suitable as a roof panel heater: No.
- Surface area: 2 m²
- With controller: No.
- With ground temperature sensor: No.
- Product type
Heat mat
- Operating voltage
230 V
- Suitable for
Tiles
- Heating area
2 m²
- Heating power (W / BTU/h)
400 W
- Heating power
400 W
- Lead length
4000 mm
- Compatible with
Underfloor heating
- Width
300 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548837 Stiebel Eltron 205811 Heat mat TBS TC 200/2 400 W 2 m²
Description
These thin-bed heating mats with a high heating power output are used in new buildings and in renovations to the temperature of floors and are especially used in the bathroom. They are installed directly below the flooring and quickly provide for a pleasantly warm floor surface, regardless of the existing heating system. The heating mat is suitable as additional or additional heating. COMFORT FEATURES: Due to the low height the heating mat can be installed directly in the tile adhesive under ceramic coverings. The smaller installation width is particularly good for small, angled ground plans In combination with a water-guided underfloor heating, the comfort of a warm floor can be made possible even outside the heating season. The heat conductor is completely sewn on the self-adhesive carrier mat and can therefore be laid easily and quickly on the floor. INSTALLATION: The mat may be laid in the bathroom in combination with a residual current protective device. By cutting the backing fabric the mat can be adjusted easily to the individual situations.
