Stiebel Eltron 222375 WPSB 308 E Ground source heat pump assembly kit Energy efficiency rating (calc) Doesn't apply
EAN:
Part number:
Item no:
Technical specifications
- Expansion tank 12 liters
- Safety valve 2.5 bar
- Connection to heat pump inch G 1¼ IG
- Connection to heat source inch G 1¼ IG
- Solar circulation pump Stratos Para 1-8
- Voltage/frequency V/Hz 1/N/PE 230/50
- Product type
Ground source heat pump assembly kit
Doesn't apply
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1930549 Stiebel Eltron 222375 WPSB 308 E Ground source heat pump assembly kit Energy efficiency rating (calc) Doesn't apply
Warranty Terms
Warranty Terms 1930549 Stiebel Eltron 222375 WPSB 308 E Ground source heat pump assembly kit Energy efficiency rating (calc) Doesn't apply
Description

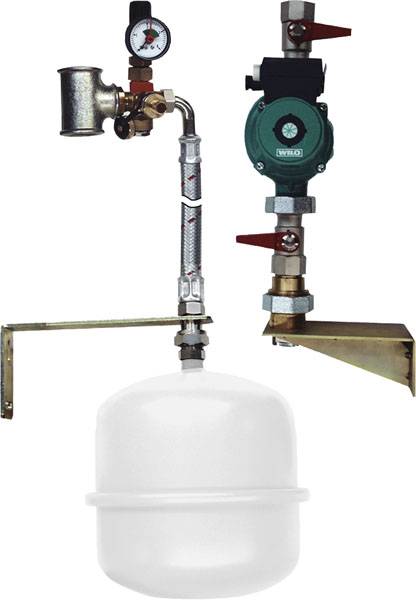

Compact module for the heat source system (Sole) for quick and easy installation. Includes the sole high-efficiency pump including shut-off valves and wall bracket. Also the solar-resistant 25 l expansion tank, safety valve 2.5 bar, stainless steel tank hose 500 mm long and filling and emptying valve.
