Stiebel Eltron 227425 HUV 65 Changeover valves
EAN:
Part number:
Item no:
Highlights & Details
Switch valve HUV 65
- 3-2 way flow
- Servo motor with DN 65 design
Technical specifications
- Max. Permissible pressure 60 MPa
- Sound power level 45 dB
- KVS value 58 m³/h
- Differential pressure Δp max. 140 kPa
- Closing pressure Δp s 140 kPa
- Protection class II, insulated
- Protection class IP54
- Max. operating temperature: 100 °C
- Connection cable cross-section 3x 0.75 mm²
- Running time 7.5 s/mm (18 mm)
- Product type
Changeover valves
- Type
DN 65
- Weight
16.3 kg
- Factory colour
Blue
Orange
- Content
1 pc(s)
- Width
290 mm
- System voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1906716 Stiebel Eltron 227425 HUV 65 Changeover valves
Warranty Terms
Warranty Terms 1906716 Stiebel Eltron 227425 HUV 65 Changeover valves
Description

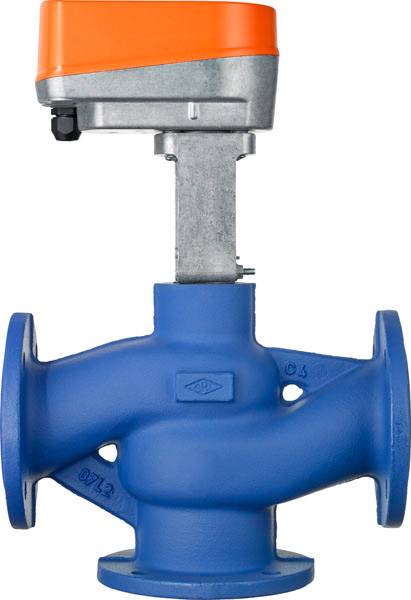

Heating changeover valve with 3-2 way flow and adjusting motor in DN 65 design.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 3-way changeover valve · actuator · Instructions
- This text is machine translated.
