Stiebel Eltron 227426 HUV 80 Changeover valves
EAN:
Part number:
Item no:
Highlights & Details

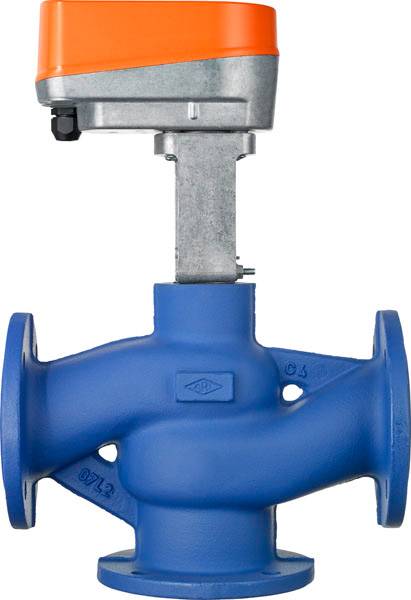

Changeover valve HUV 80
- 3-2-way flowActuator with DN 80 design
Technical specifications
- Max. Permissible pressure 60 MPa
- Sound power level 35 dB
- Kvs-value 90 m³/h
- Differential pressure Δp max 80 kPa
- Closing pressure Δp s 80 kPa
- Protection class II, insulated
- Protection class IP54
- Max. operating temperature: 100 °C
- Connection cable cross-section 3 x 0.75 mm²
- Operating time 7.5 s/mm (18 mm)
- Product type
Changeover valves
- Type
DN 80
- Weight
22.5 kg
- Factory colour
Blue
Orange
- Content
1 pc(s)
- Width
310 mm
- System voltage
230 V
- Operation type
Rotary actuator
- Function
3/2-way
- Nominal width
DN 80
- Pipe Ø
80 DN
- Max. media temperature
100 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1906868 Stiebel Eltron 227426 HUV 80 Changeover valves
Warranty Terms
Warranty Terms 1906868 Stiebel Eltron 227426 HUV 80 Changeover valves
Description
Heating changeover valve with 3-2-way flow and actuator in DN 80 design.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 3-way changeover valve · actuator · Instructions
- This text is machine translated.
