Stiebel Eltron 231061 RTA-S2 Indoor thermostat Surface-mount 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
ROOM TEMPERATURE REGULATOR RTA-S2, 10 A/230 V.
- Wall mounting
- On/Off switch
- Switching capacity ~10(4) A, 250 V.
- Temperature range restriction in the controller head
- Temperature reduction of approx. 4 K is possible via external switch/timer
Technical specifications
- Hysteresis 0.5 K
- Ambient temperature: 0 - 55 °C
- Dimensioning surge voltage: 4 KV
- Permissible relative humidity (non-condensing): 95%,
- Night reduction: 5 K.
- Protection class: II
- MAINS CONNECTION 1/N AC 230 V
- Max. Switching current 10 (4) A.
- Product type
Indoor thermostat
- Operation type
mechanical
- Max. temperature setting
30 °C
- Temperature settings
5 up to 30 °C
- Compatible with
Heaters
- Mounting type
Surface-mount
- Power supply (LOV)
mains-powered
- Operating voltage
230 V
- Contact load capacity
10 A
- Nighttime drop
Yes
- Factory colour
White
- Similar RAL
9010
- Width
75 mm
- Height
75 mm
- Length
26 mm
IP30
- Dim
(L x W x H) 26 x 75 x 75 mm
- Weight
0
- Min. temperature setting
5 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1906940 Stiebel Eltron 231061 RTA-S2 Indoor thermostat Surface-mount 1 pc(s)
Warranty Terms
Warranty Terms 1906940 Stiebel Eltron 231061 RTA-S2 Indoor thermostat Surface-mount 1 pc(s)
Description

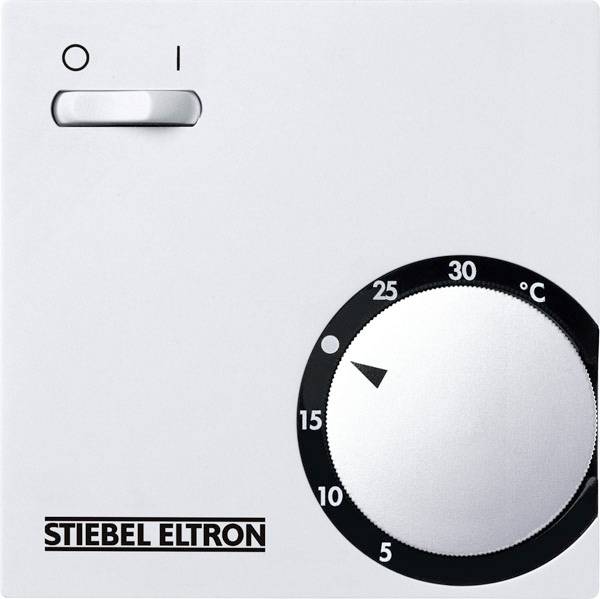

The exact degree temperature setting and the simple operation characterize this temperature controller. The RTA-S2 has a thermal feedback and ensures a constant room temperature with its low switching difference of only +/- 0.5 K. The controller has its own on/off switch. The room temperature can be continuously adjusted in a range of approx. 5 °C to 30 °C.
This text is machine translated.
This text is machine translated.
Features
- Two-point room temperature controller for surface mounting.
