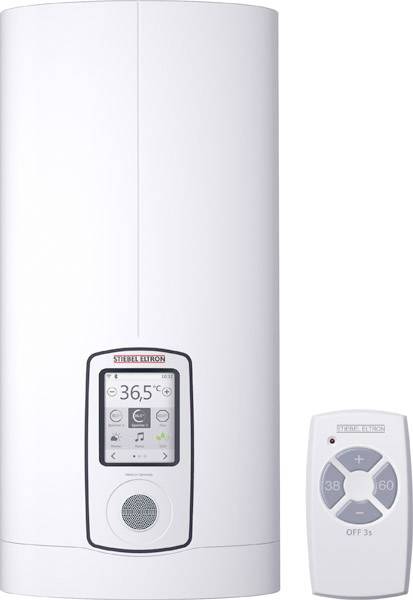

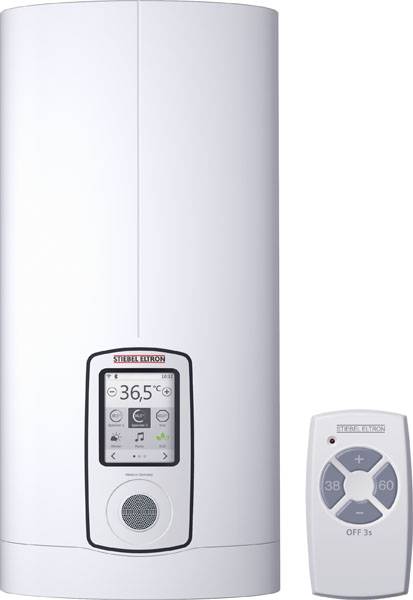

Stiebel Eltron 234468 DHE Connect 27 Tankless heater A (A+ - F) electronical 27 kW
EAN:
Part number:
Item no:
Highlights & Details
DHE Connect Tankless Heater 27
- Fully electronically controlled water heater
- 4i technology for first-class and always accurate warm water comfort
- Intuitive operation via touch display and touch wheel
- Via integrated WLAN-function Radio station and current weather report
Technical specifications
- Product type
Tankless heater
- Operation type
electronical
- Operating voltage
400 V
27 kW
- Nominal current
39 A
- Temperature settings
20 up to 60 °C
IP25
- Dim
(W x H x D) 225 x 466 x 105 mm
- Weight
3.2 kg
A (A+ - F)
- Material
Plastic
- Width
225 mm
- Height
466 mm
- Depth
105 mm
- Protection class
I
- Max. temperature setting
60 °C
- Min. temperature setting
20 °C
- Volume
0.4 l
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1906882 Stiebel Eltron 234468 DHE Connect 27 Tankless heater A (A+ - F) electronical 27 kW
User & Safety Instructions
User & Safety Instructions 1906882 Stiebel Eltron 234468 DHE Connect 27 Tankless heater A (A+ - F) electronical 27 kW
Warranty Terms
Warranty Terms 1906882 Stiebel Eltron 234468 DHE Connect 27 Tankless heater A (A+ - F) electronical 27 kW
Description
APPLICATION: THE Connect for single and group supply. Pressure-resistant device for pressure fittings.
EQUIPMENT:
Fully electronically controlled with 4i technology. Always exact to degree temperature through electronic flow rate control. Touch display & wheel, temperature selection from 20-60GradC. Intuitive and customizable user interface.
WLAN for Internet radio and weather.
Built-in speaker Up to 12 memory buttons. Wellness and timer programs. Automatic bathtub filling. Quick commissioning. Scalding hazard indicator (>43 degrees C). Adjustable temperature limit. Mini wireless remote control. Removable control panel for individual installation. App operation. Bluetooth(R).
Rotating device cap and operating unit.
EFFICIENCY: Saves up to 30% energy and water through fully electronic power control.
Max. Energy efficiency. Graphical consumption and cost display. ECO mode. Economy monitor. Suitable for pre-heated water.
PRO-RAPID INSTALLATION:
Very fast and simple installation Easy replacement with all common flow-type heaters. Univ.Wall mounting rail. Water connection for surface and flush mounting with 3-way barrier. Pivoting cold water inlet. Suitable for plastic pipes. Variable electrical connection (top/bottom). Selectable
PROFESSIONAL DIRECT:
Error memory with QR code display. Troubleshooting and troubleshooting via app. Inner assembly can be removed.
SECURITY:
Bare-wire heating system for lime and cold-rich waters. Electronic safety concept with air detection. Permanent scalding protection can be activated. Incl. License agreement.
