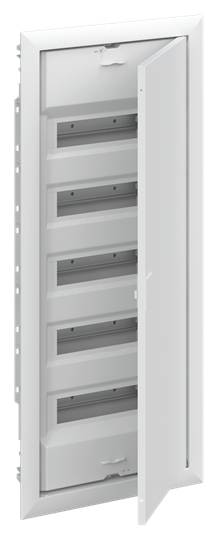

Striebel & John 2CPX031383R9999 UK660K Distributor Flush mount No. of rows = 5 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Distributor
No. of rows
5
Mounting type
Flush mount
Width
384 mm
Height
872 mm
Datasheet (PDF)
Technical specifications
- Product type
Distributor
- No. of rows
5
- Mounting type
Flush mount
- Factory colour
White
- Width
384 mm
- Height
872 mm
- Dim
(W x H x D) 384 x 872 x 97 mm
- Depth
97 mm
- Content
1 pc(s)
Flush mounted (plaster)
White
384 mm
872 mm
97 mm
9016
FALSE
75 mm
5
730 mm
Door
280 mm
75 mm
TRUE
Plastic
12
Push button
IP30
FALSE
TRUE
Closed
FALSE
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112419 Striebel & John 2CPX031383R9999 UK660K Distributor Flush mount No. of rows = 5 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3112419 Striebel & John 2CPX031383R9999 UK660K Distributor Flush mount No. of rows = 5 Content 1 pc(s)
Description
The UK600 series circuit distributors are designed for flush mounting. They impress with many new and unique technical features. In this way, an up to 200% larger connection area enables the easy and efficient installation of the devices. The removable device carrier can be placed in the distributor depending upon the requirement and thus also guarantees an easy installation. Clever details such as the cable entry valves with integrated clamp mounting and the variable use in solid or dry walls underline the high flexibility of the distributor. With an optionally available photo frame the UK600 becomes eye-catcher and integrates itself in every environment. The distribution panel can be used in flush and hollow wall mounting and has a VDE identification plate. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24
