Striebel & John 2CPX031448R9999 UK648MWH Multimedia switchgear Flush mount No. of rows = 4 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Multimedia switchgear
No. of rows
4
Mounting type
Flush mount
Width
384 mm
Height
747 mm
Datasheet (PDF)
Technical specifications
- Product type
Multimedia switchgear
- No. of rows
4
- Mounting type
Flush mount
- Factory colour
White
- Width
384 mm
- Height
747 mm
- Dim
(W x H x D) 384 x 747 x 97 mm
- Depth
97 mm
- Content
1 pc(s)
Flush mounted (plaster)
White
384 mm
747 mm
97 mm
9016
TRUE
81 mm
4
605 mm
Door
280 mm
95 mm
TRUE
Plastic
12
Push button
IP30
FALSE
TRUE
Closed
FALSE
FALSE
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112424 Striebel & John 2CPX031448R9999 UK648MWH Multimedia switchgear Flush mount No. of rows = 4 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3112424 Striebel & John 2CPX031448R9999 UK648MWH Multimedia switchgear Flush mount No. of rows = 4 Content 1 pc(s)
Description

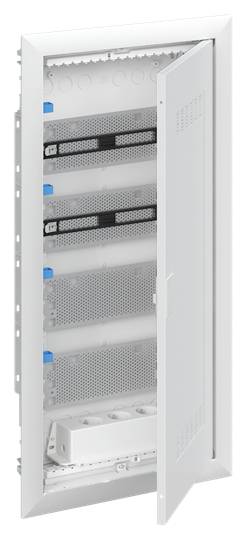

The UK600 series media distribution boards are designed for flush mounting and adapted to Homeway's requirements. They impress with many new and unique technical features. In this way, an up to 200% larger connection area enables the easy and efficient installation of the devices. By the generous space, all conceivable devices, such as routers or other media modules, find their secure place. Modular perforated plate mounting plates enable easy installation of the devices and an integrated rotating 3-way socket ensures the power supply. With an optionally available photo frame the UK600 becomes eye-catcher and integrates itself in every environment. The distribution panel can be used in flush mounting and hollow wall mounting and has a VDE identification plate. Applicable standards: DIN 43871, DIN EN 60670-24, VDE 0606-24
